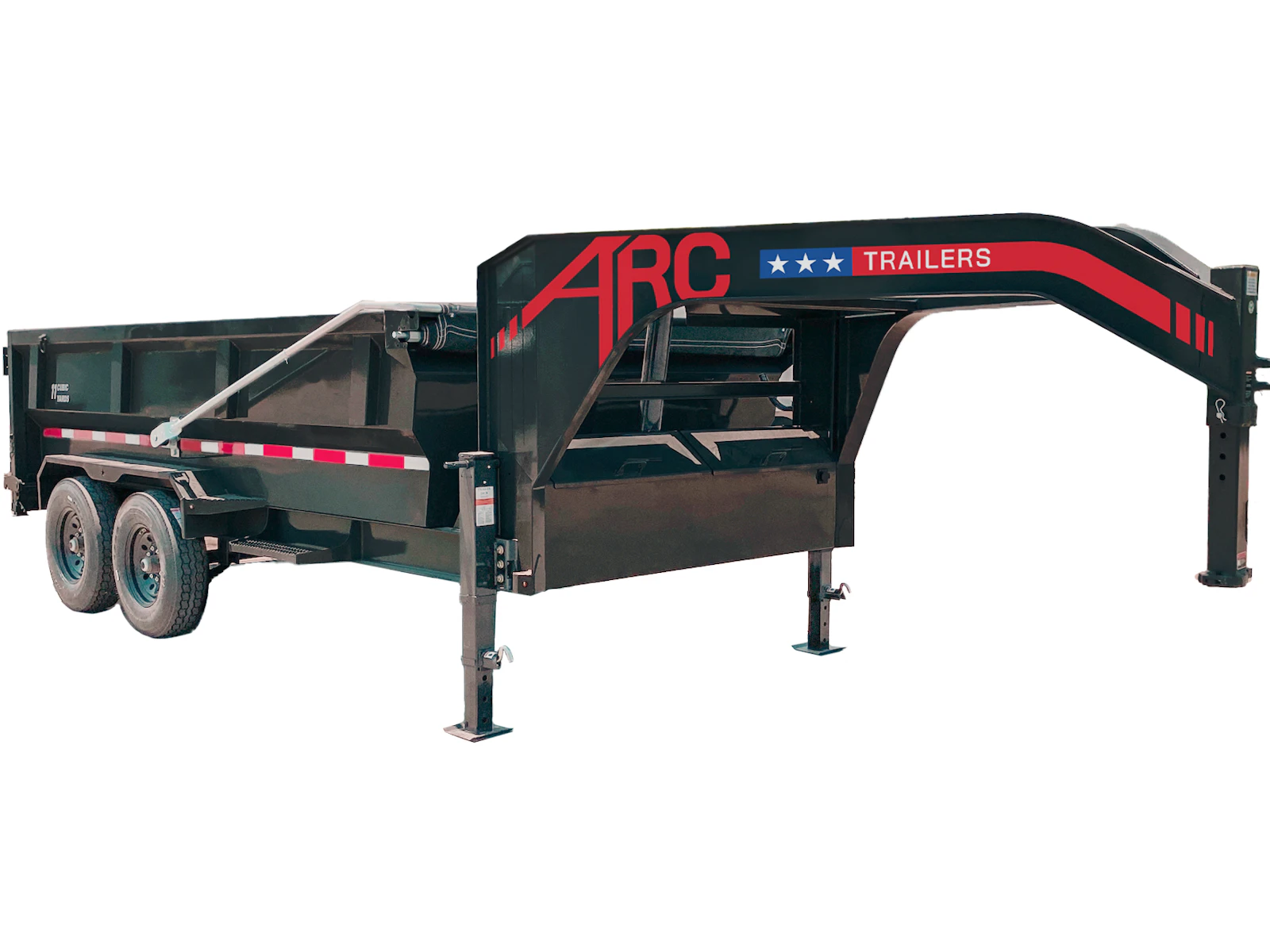

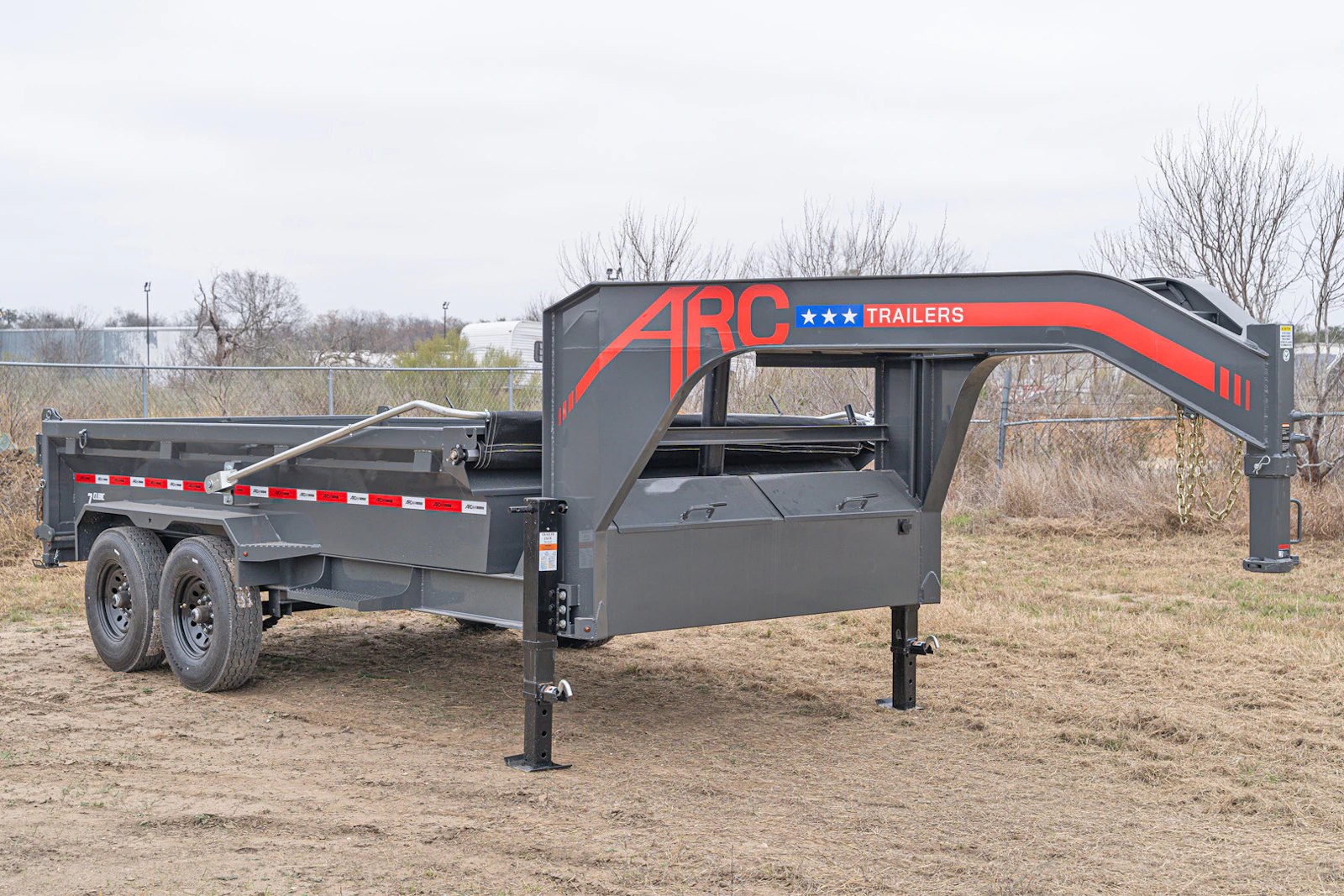

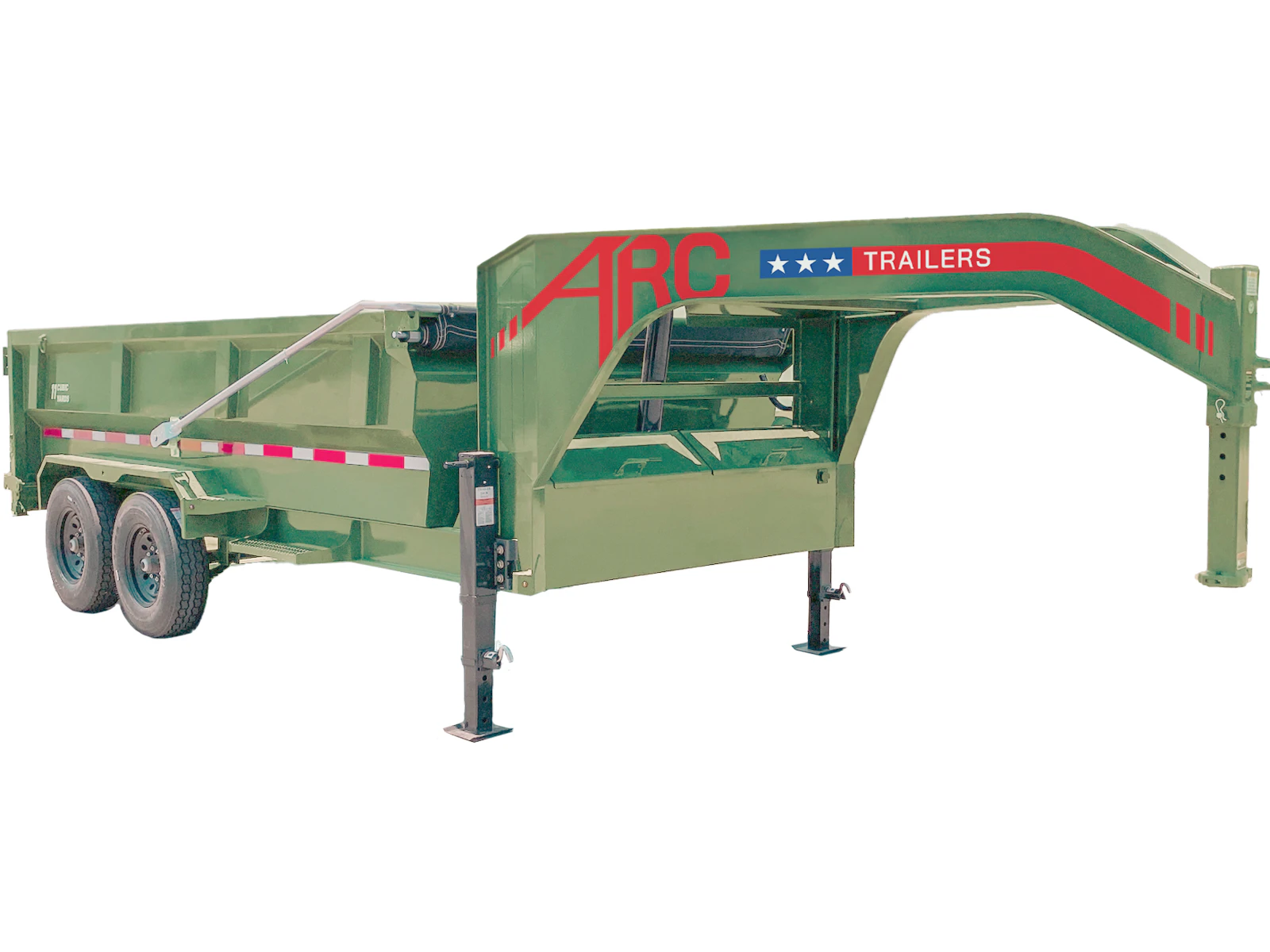

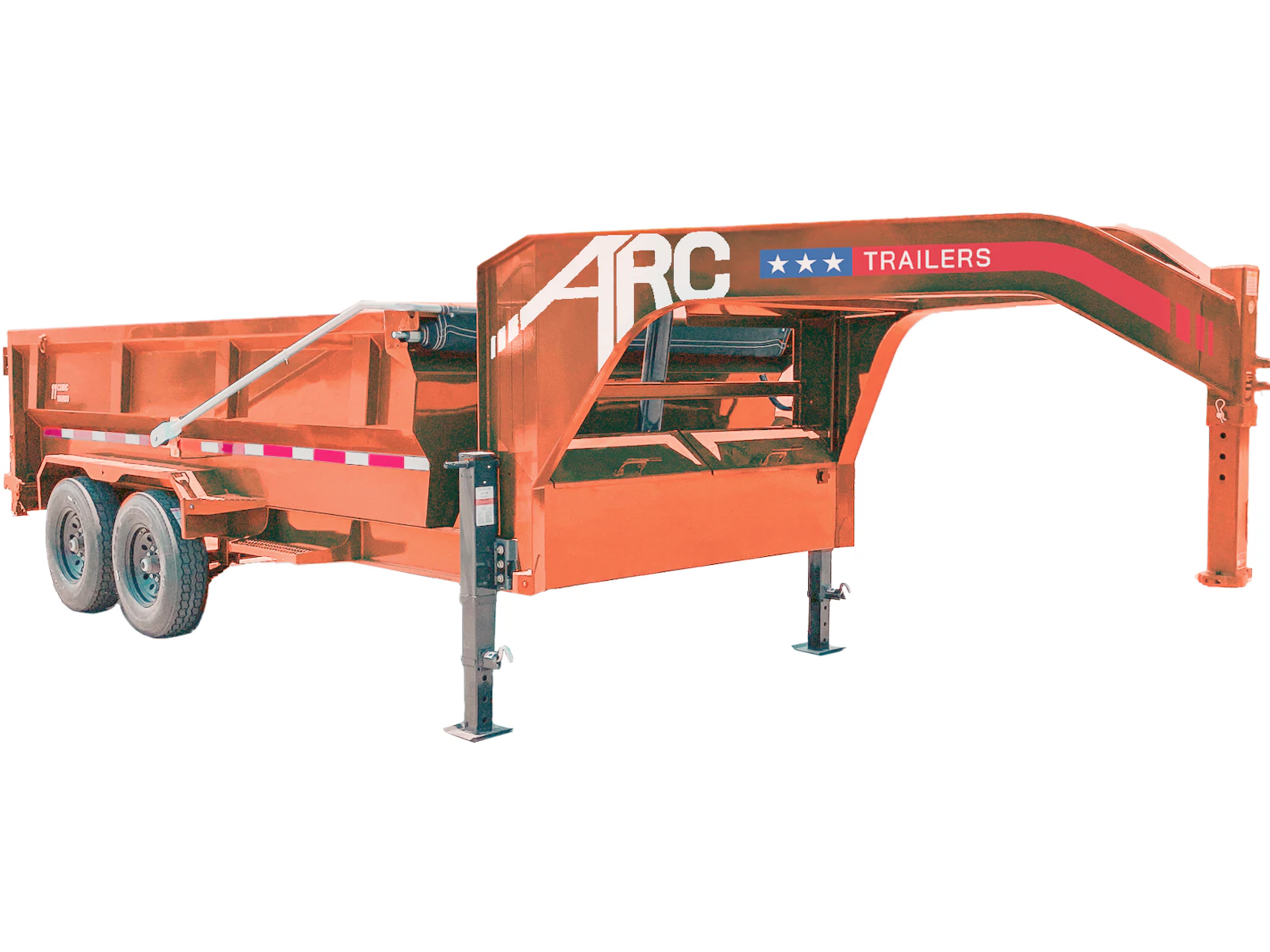

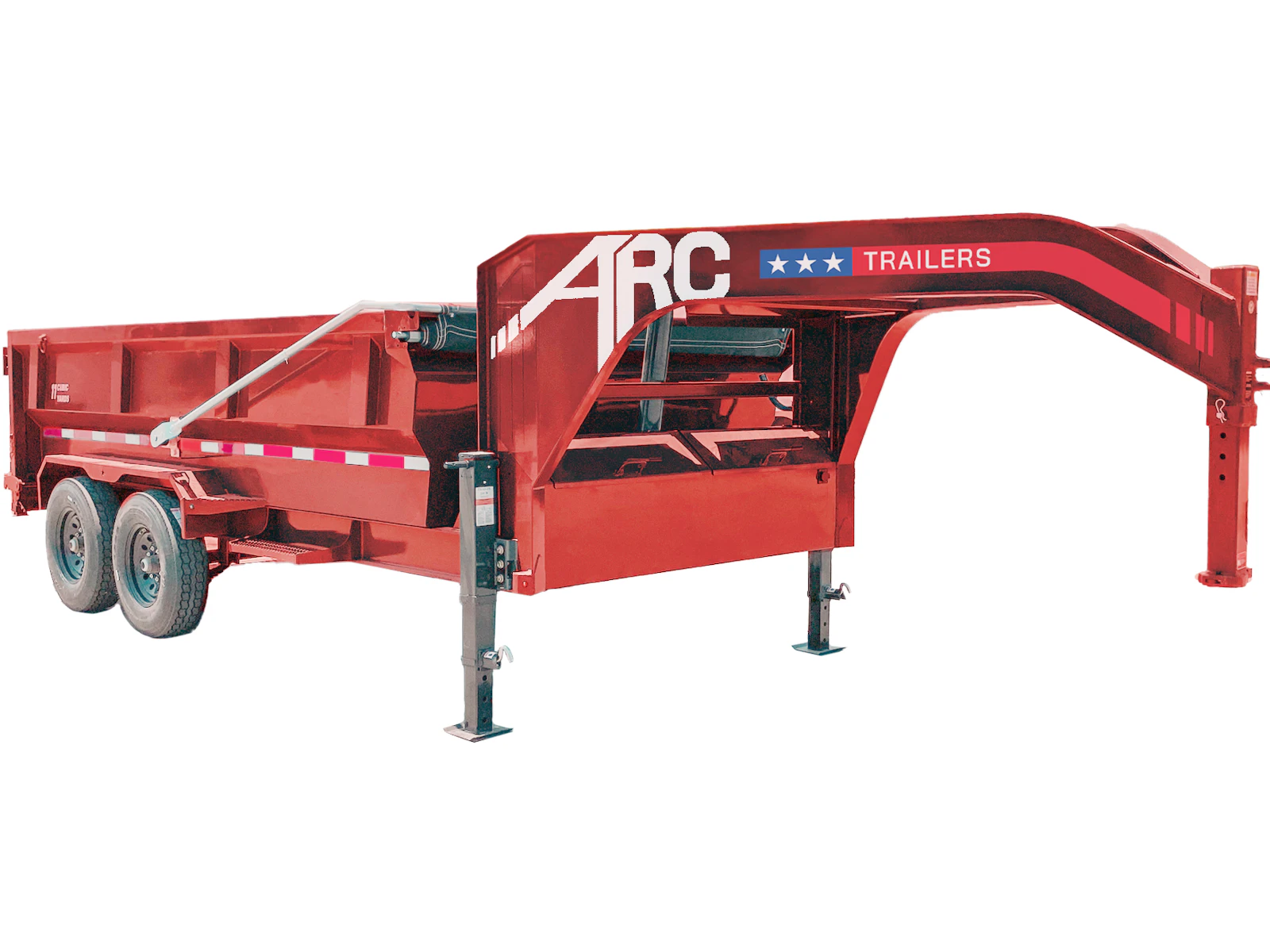

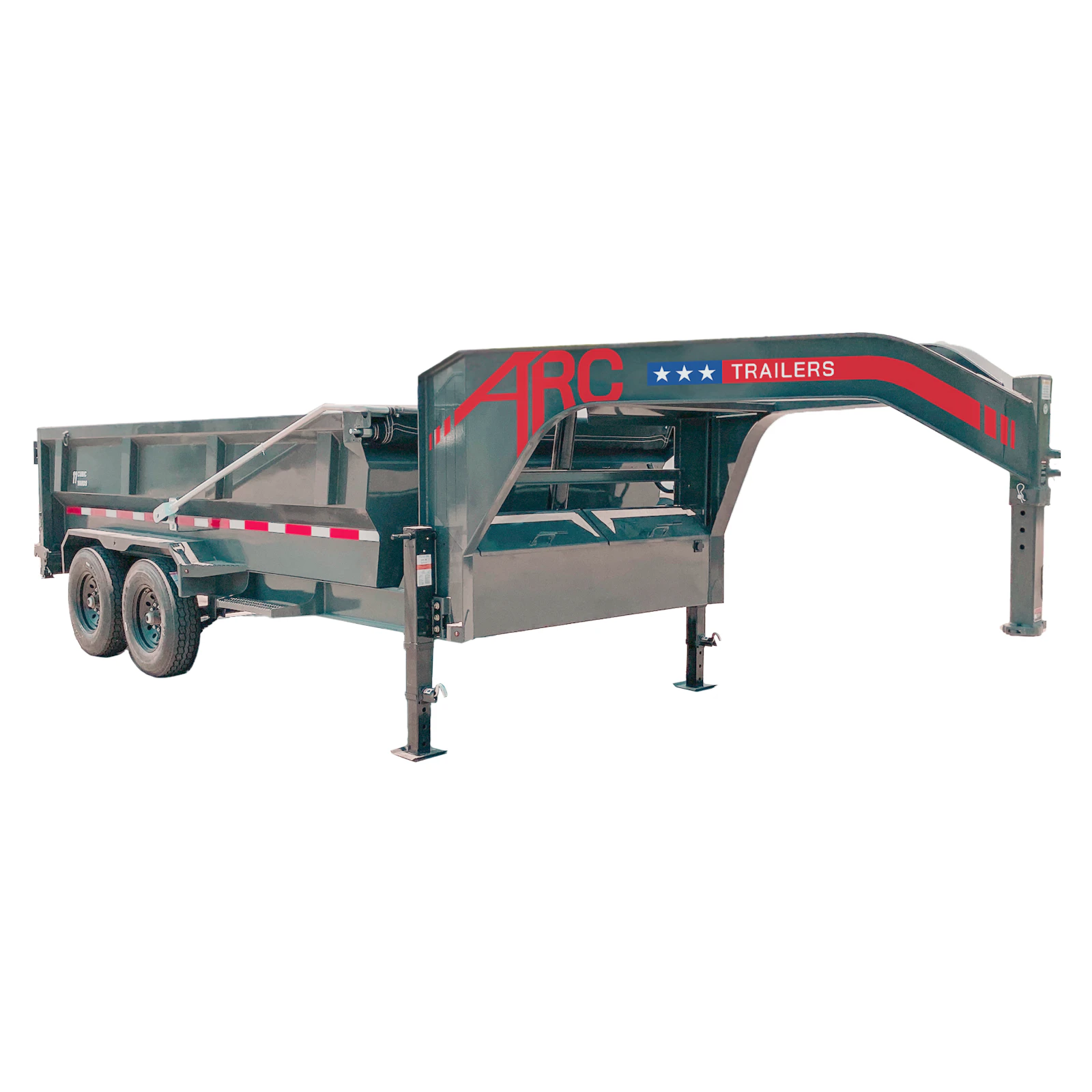

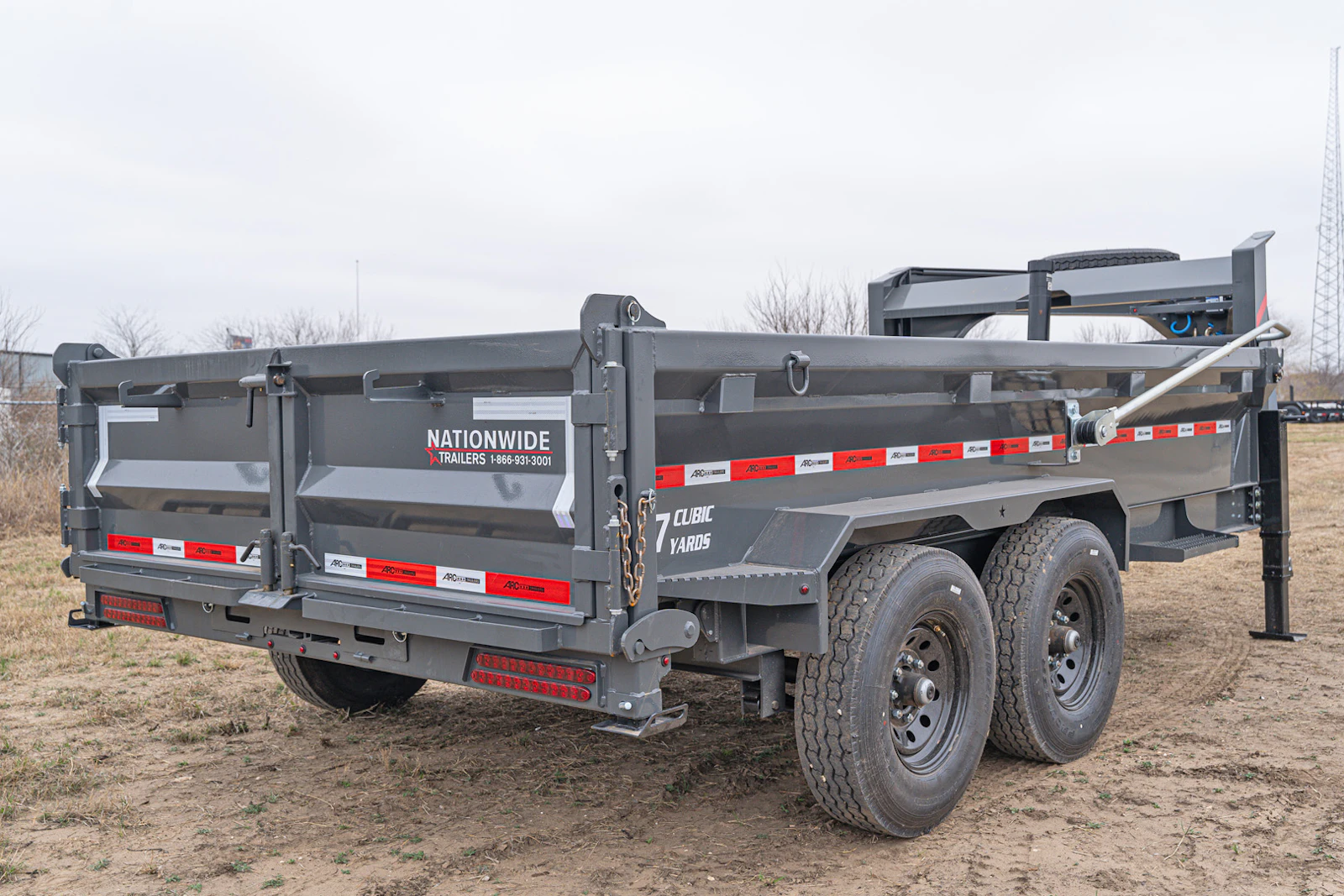

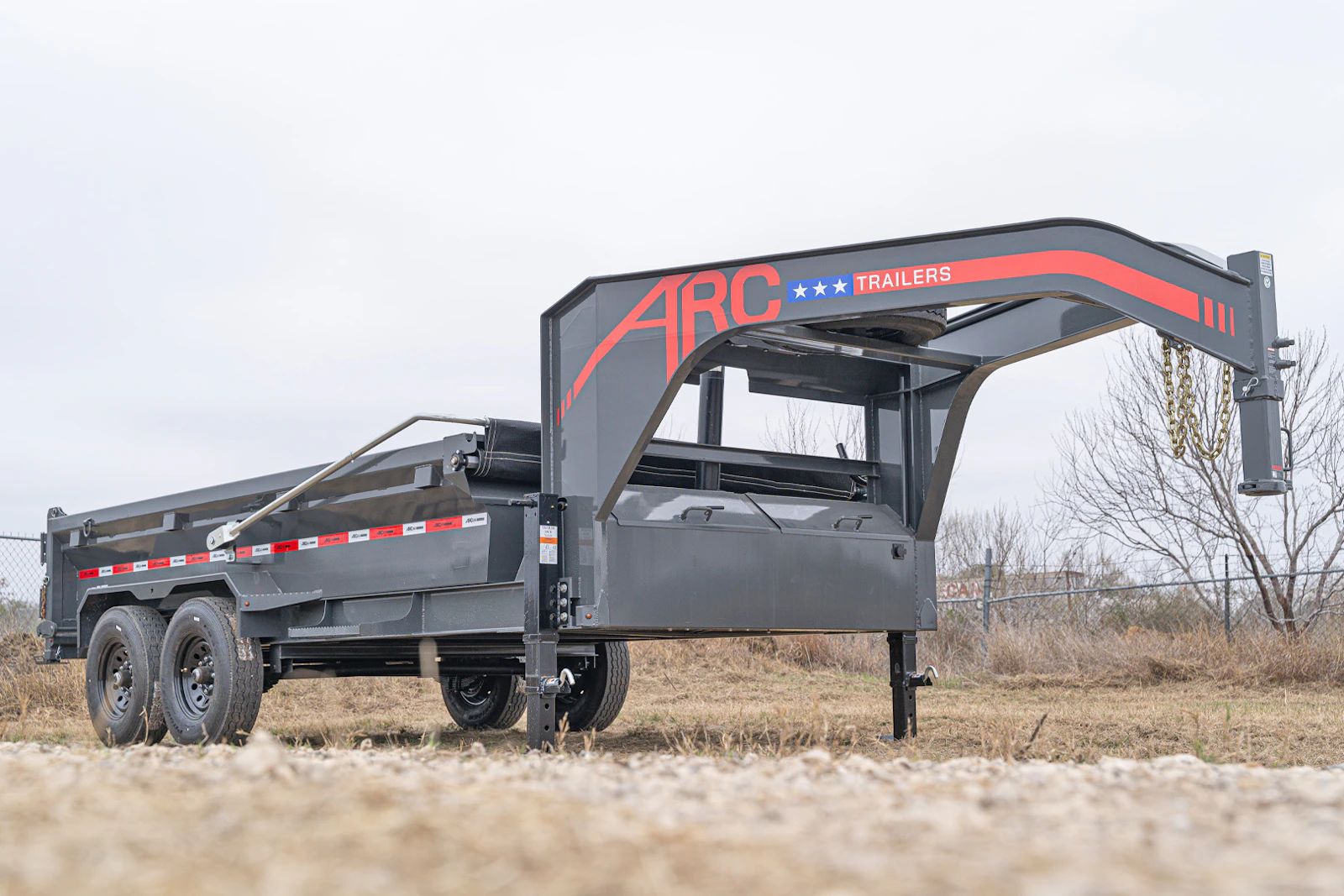

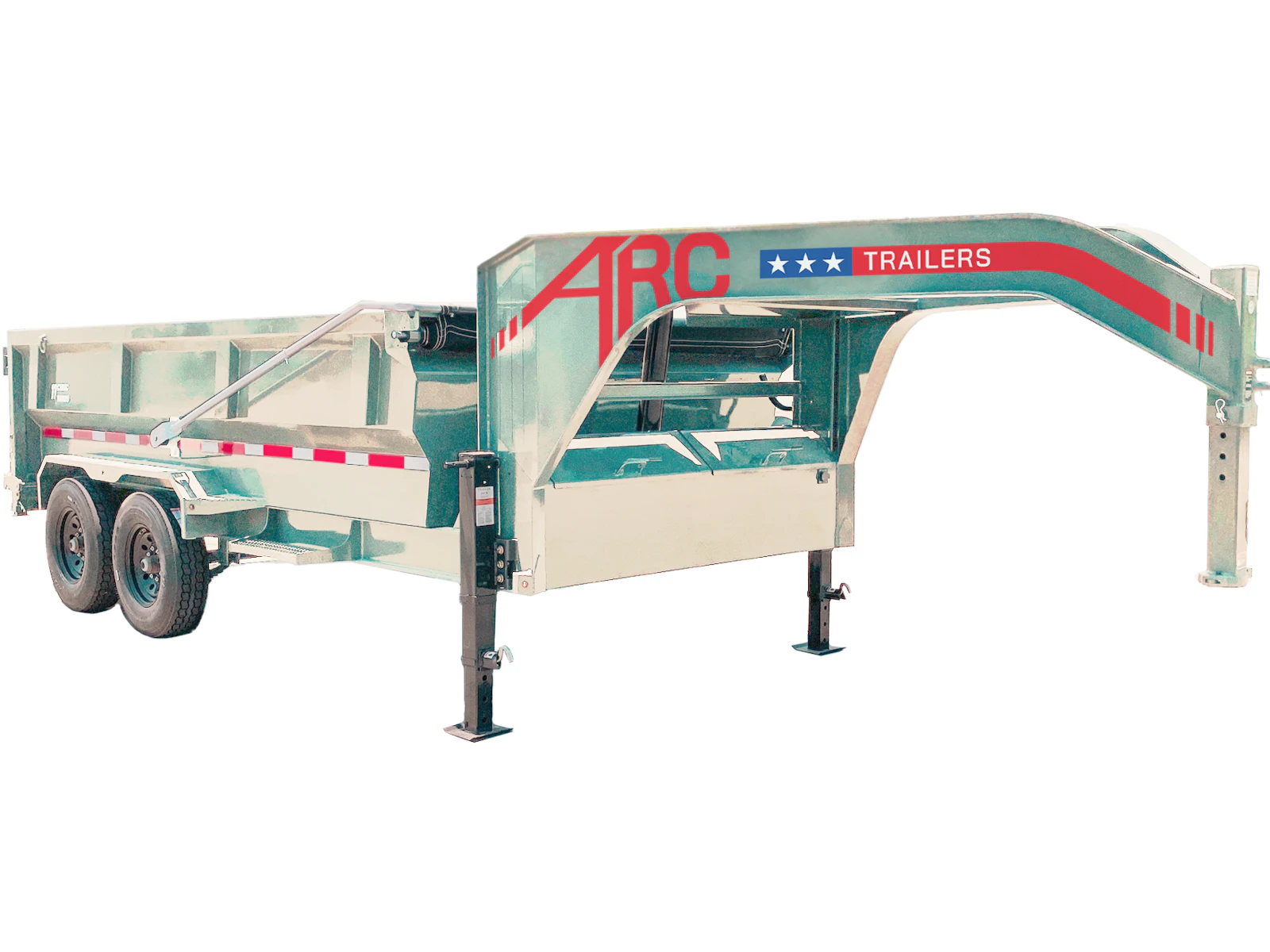

A-GDT
$12,100.00
Build Yours
Standard Specs
Overview
| Standard Code |
A-GDT
|
| Width | 83″ |
| Bed | 83″ Wide Bed w/ 91″ Top |
| GVWR | 15,680 lb |
| GAWR | 7,000 lb x2 |
Body
| Coupler |
GN 2 5/16″ Square 25,000 lb w/ Toolbox
|

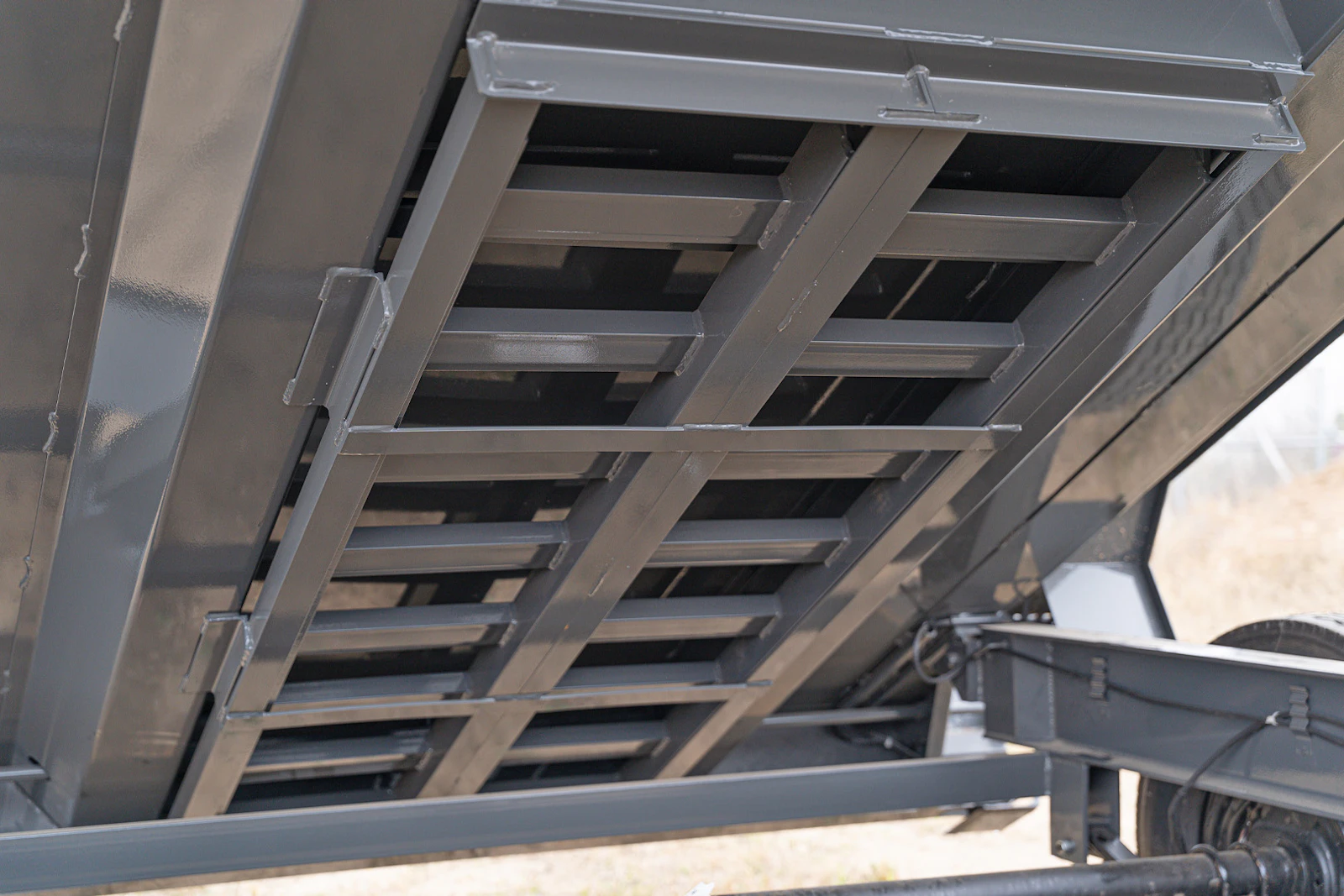

| Crossmembers |
(2) 9″ Full length 3/16″ Crossmembers
|

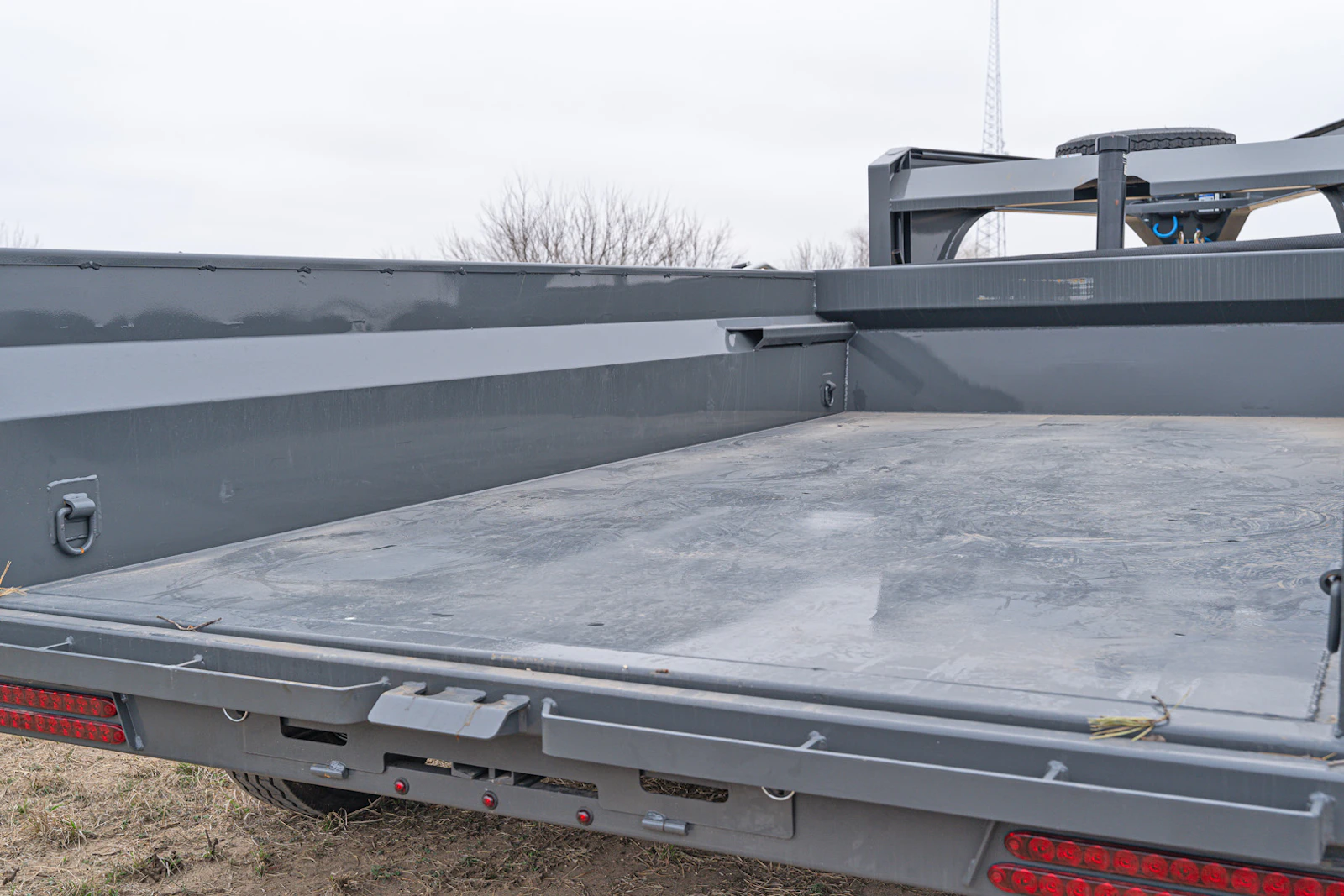

| Deck |
7ga Floor and Top Rail, 10ga Reinforced Sides
|
| Deck Height | 28 1/2″ |
| Fenders | Smooth Steel |
| Finish |
PPG Premium Powder Coat
|
| Frame Size |
8″ x 13 lb I-Beam
|
| Frame Type | I-Beam |

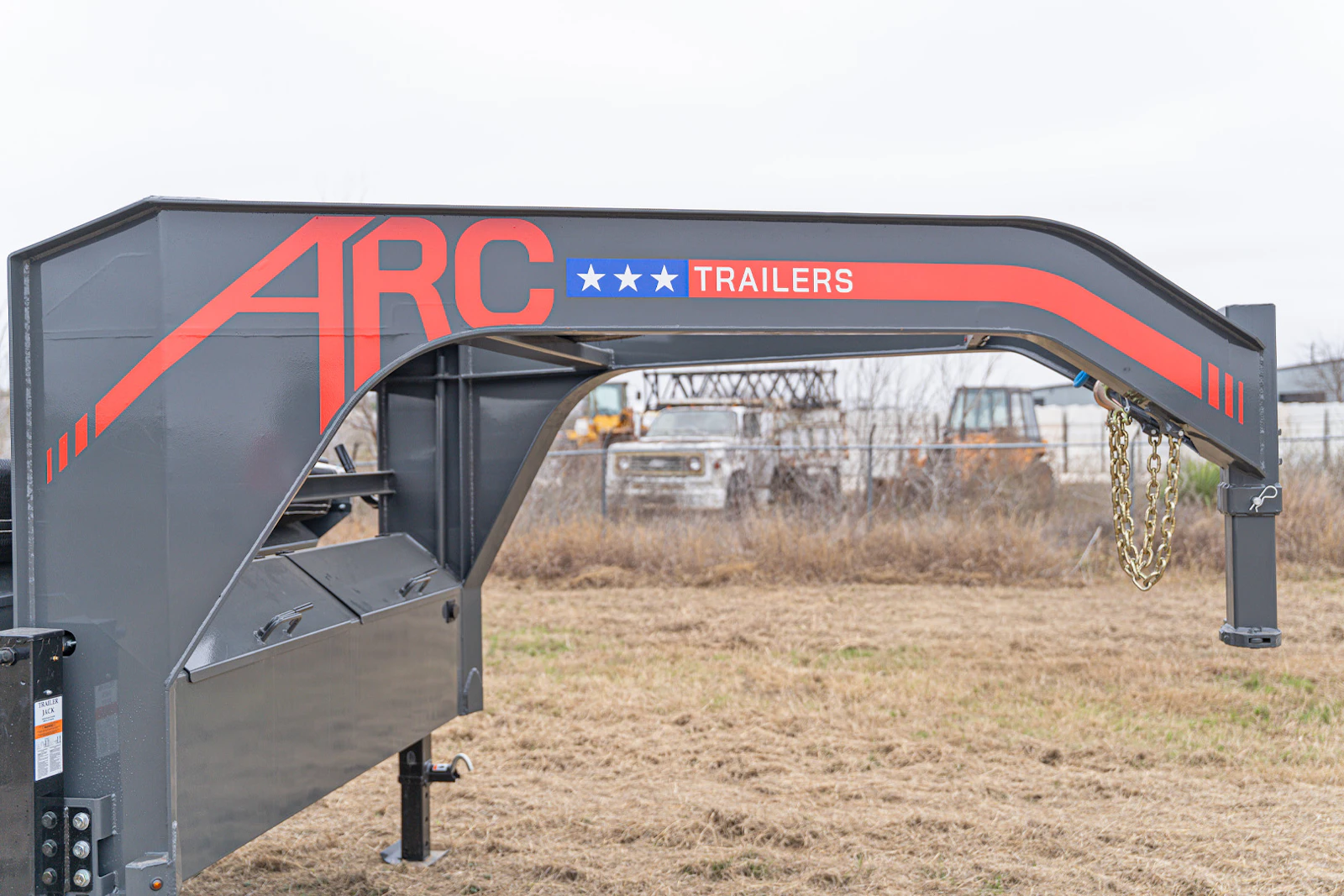

| Neck |
ARC Engineered Neck
|

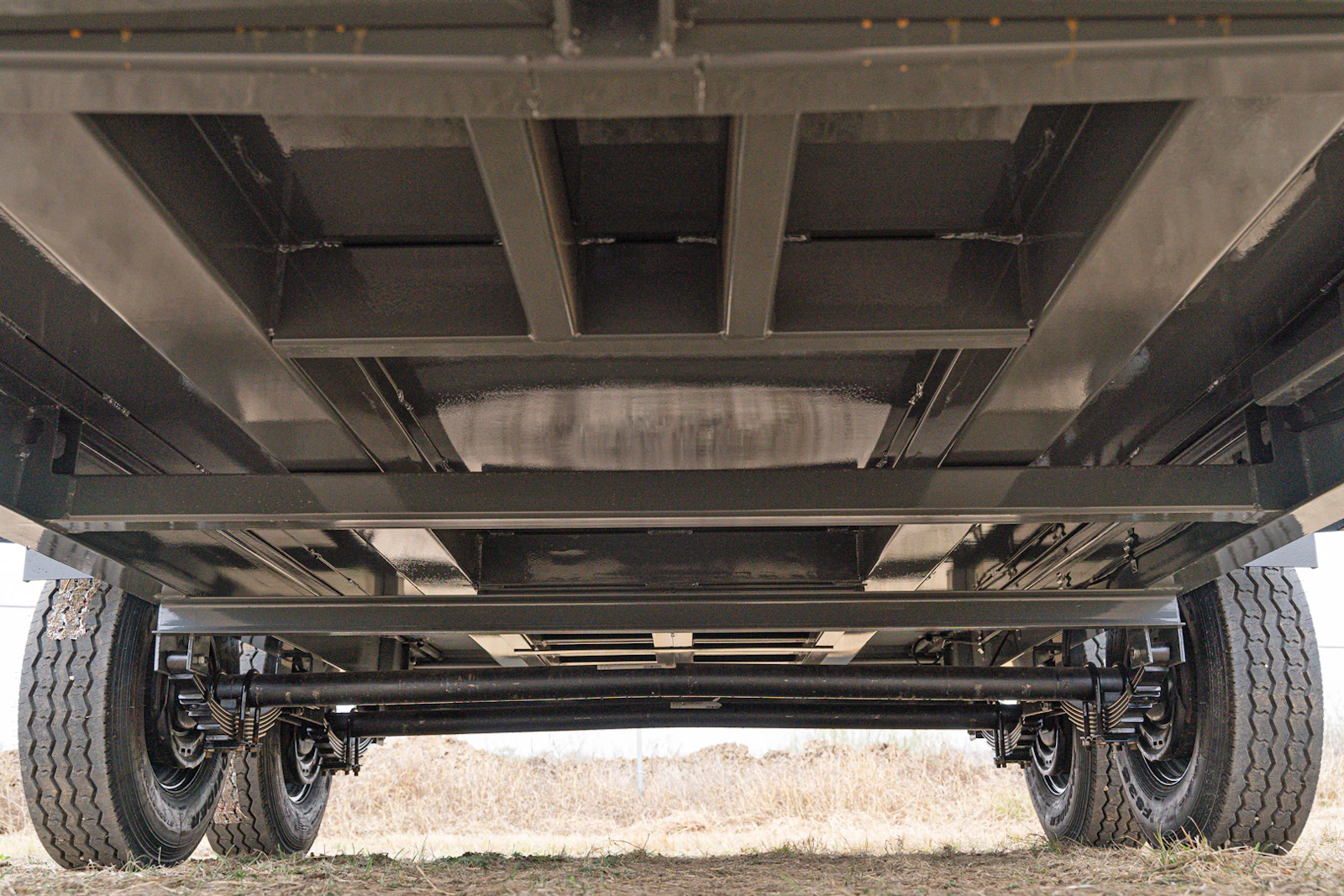

Axles & Suspension
| Axle | E-Z Lube Brake 7,000 lb (2) |
| Axle (Tires) | Single |
| Axle Lubrication | Grease |
| Brake Type | Electric Drum |

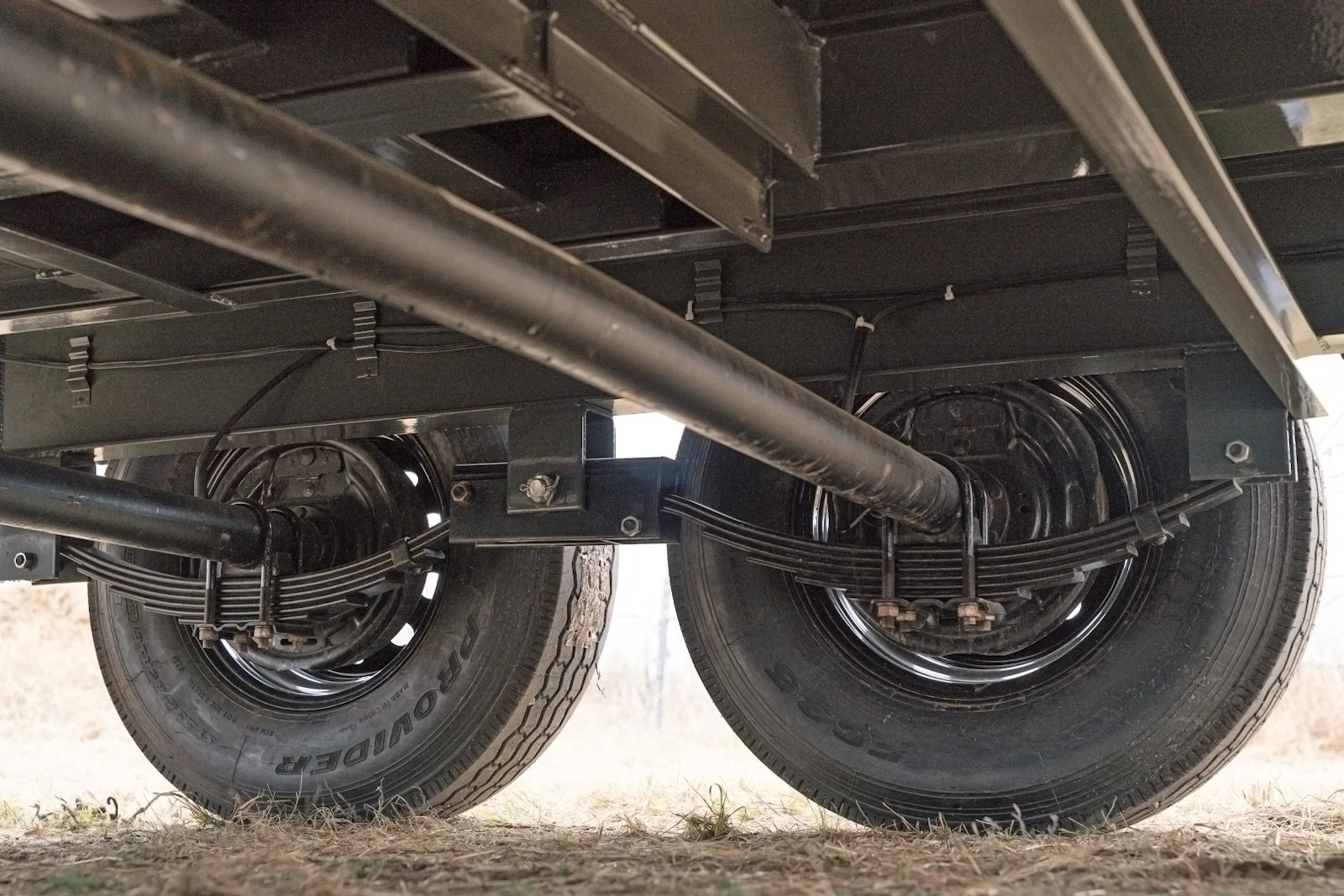

| Suspension | 6 Leaf Slipper Spring |

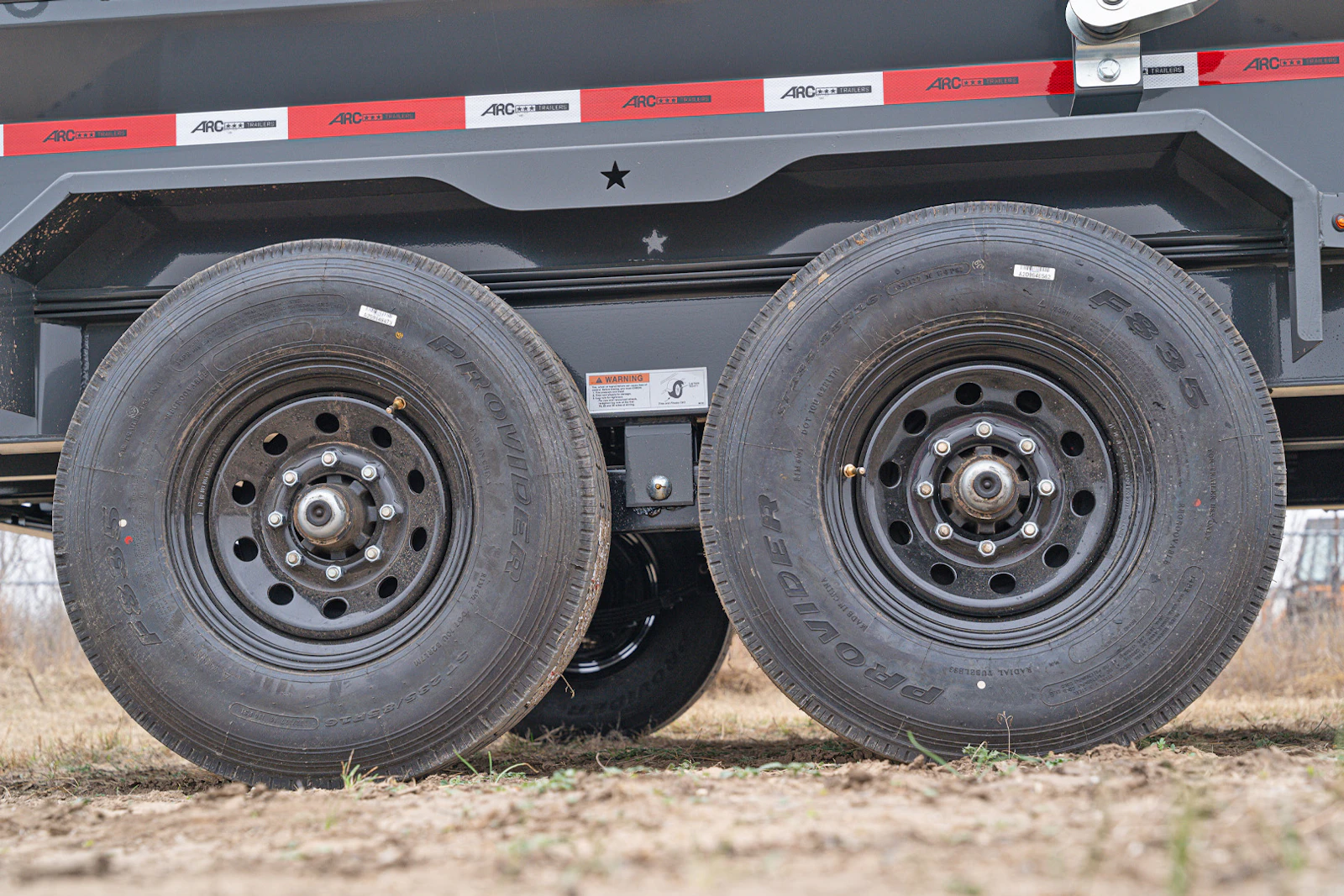

| Tire Size | 235/80R16 |
| Tire Type | Radial 10-ply |
| Wheel(s) | 16″ Black Mod |
Electronics

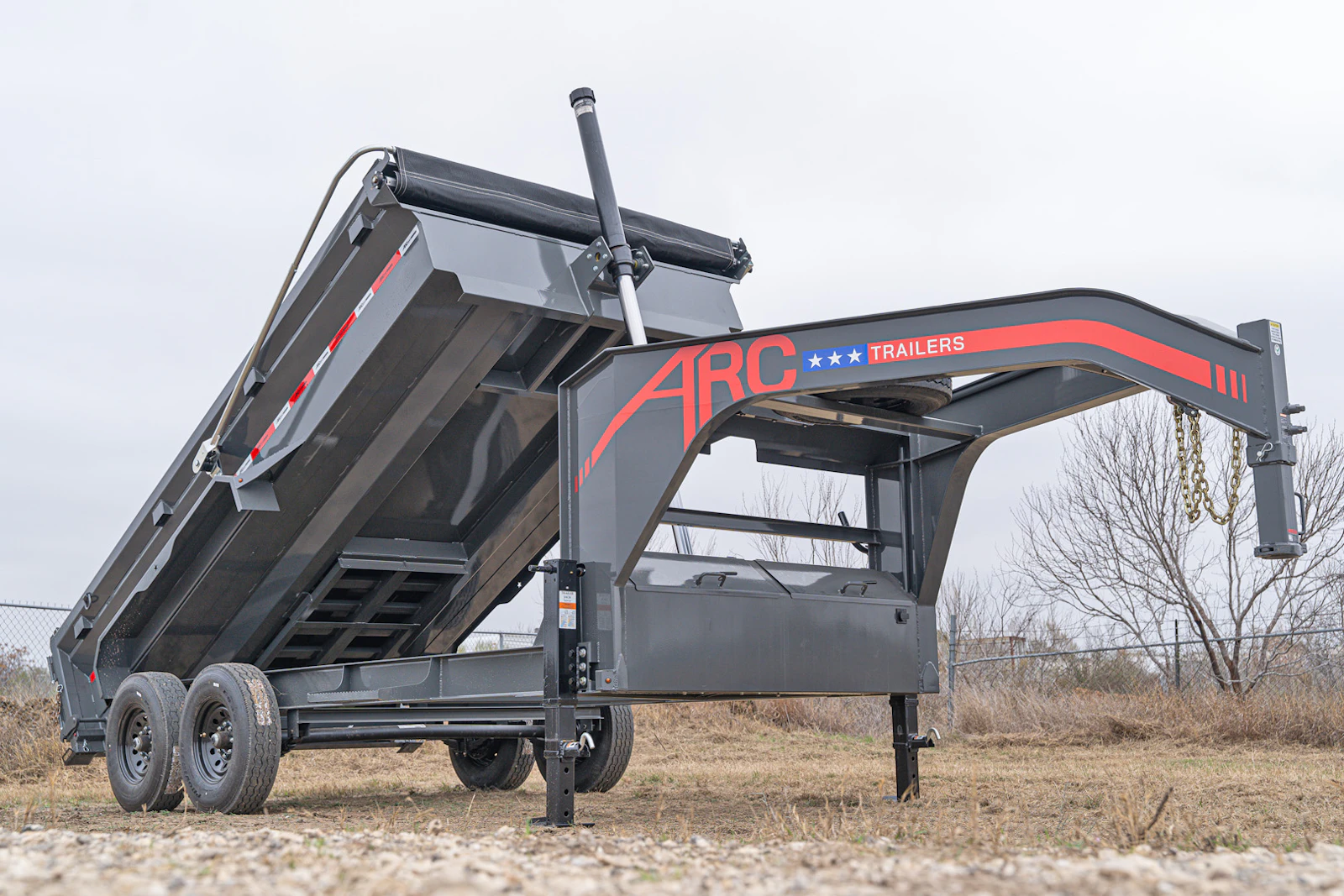

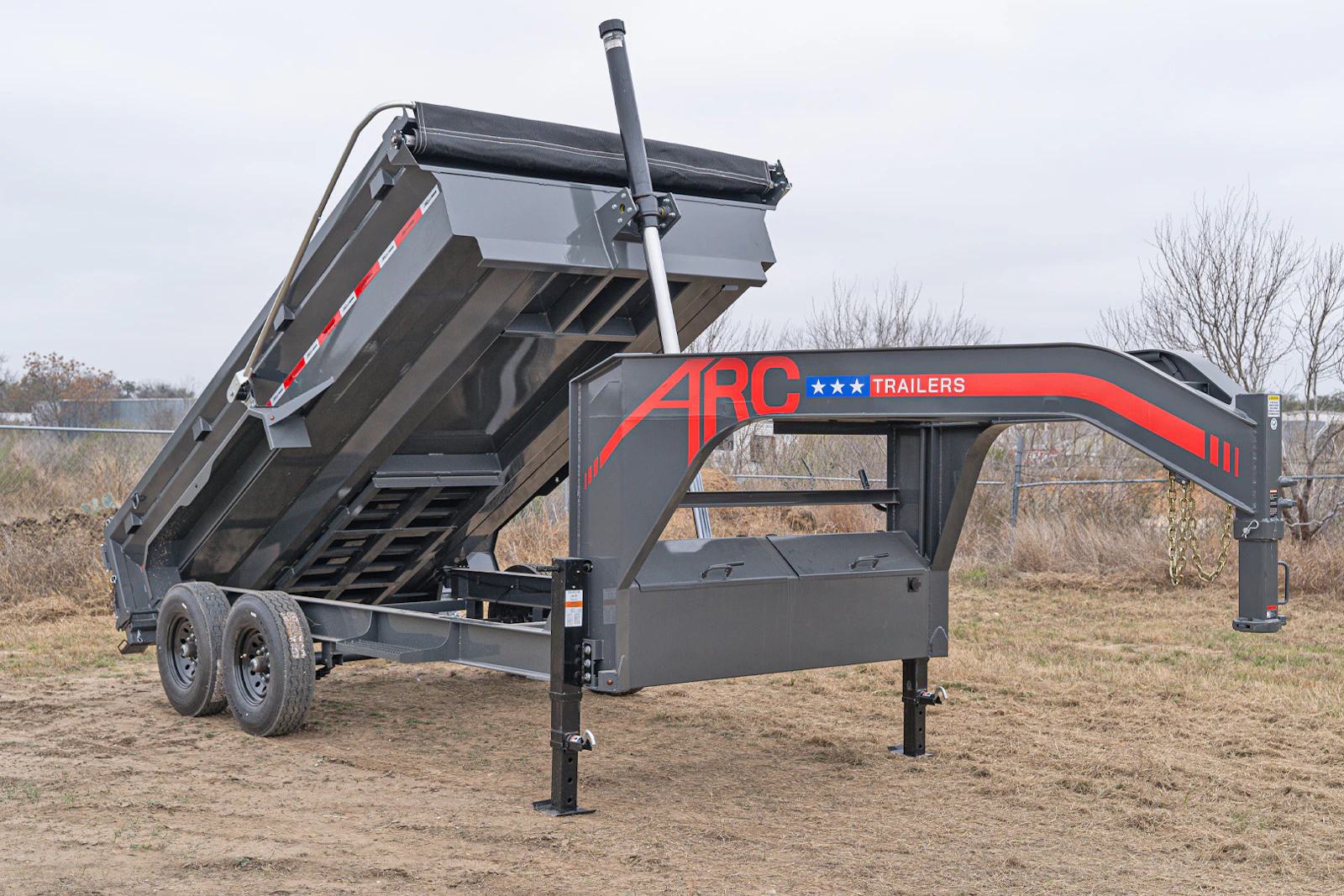

| Hydraulics | 3-Stage 12 Ton Telescopic Cylinder, Power Up/Gravity Down, 12VDC KTI Hydraulic Pump |
| Lighting | All LED |

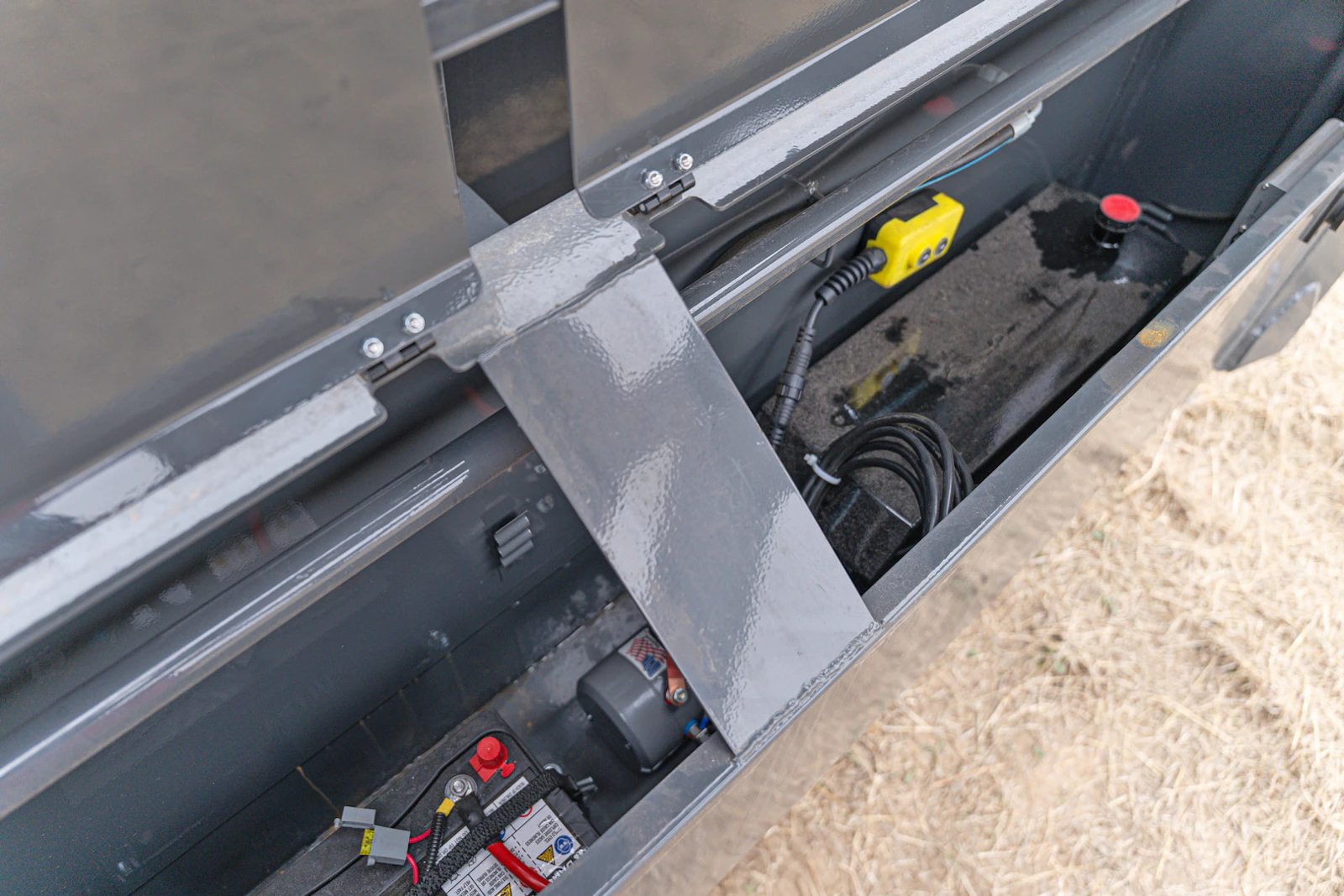

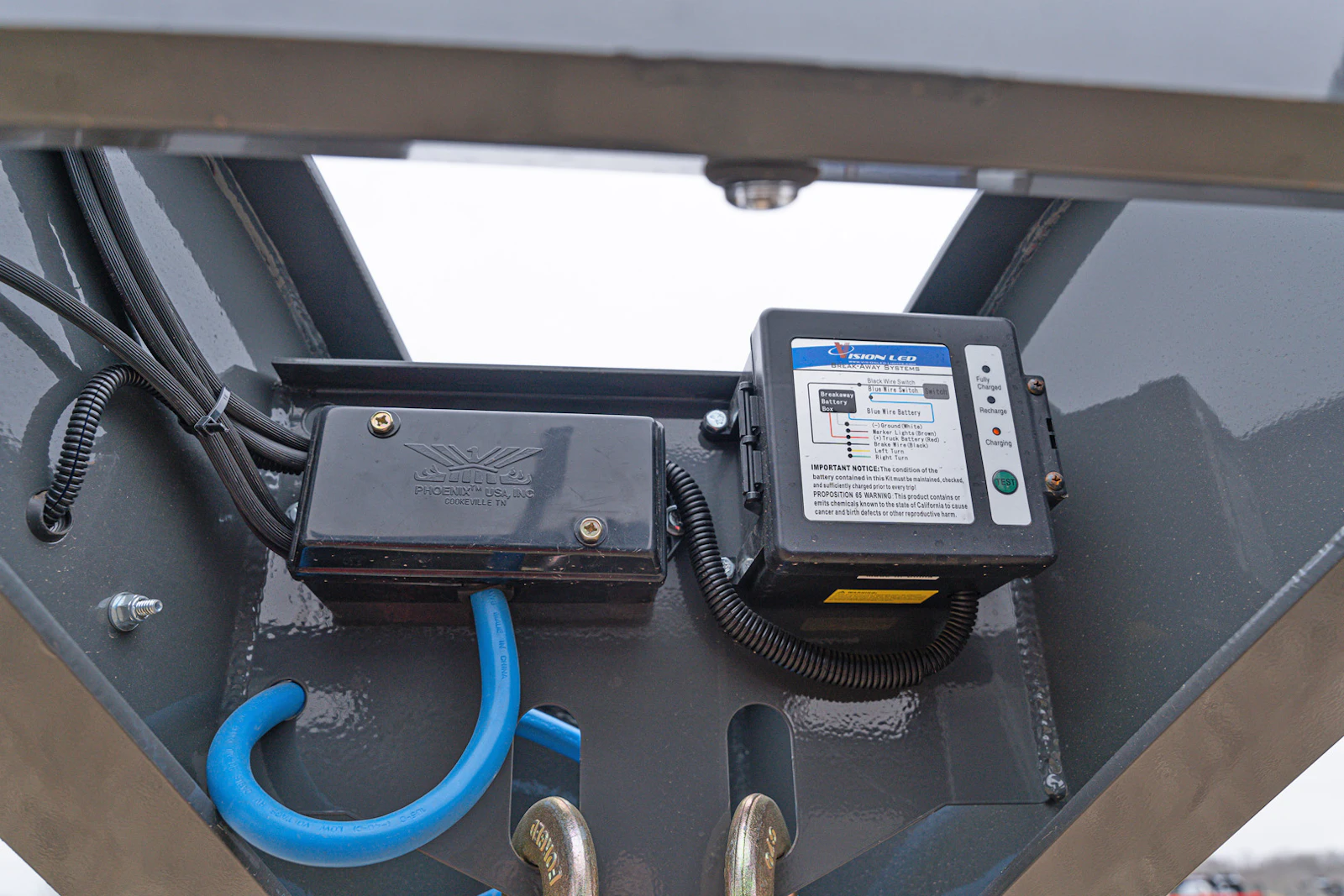

| Power Accessories | Deep Cycle Battery G27, Trickle Charger, 7-Way All Weather Wiring Harness |
Features
| Cargo Control | D-rings (4), Bucket Rest |

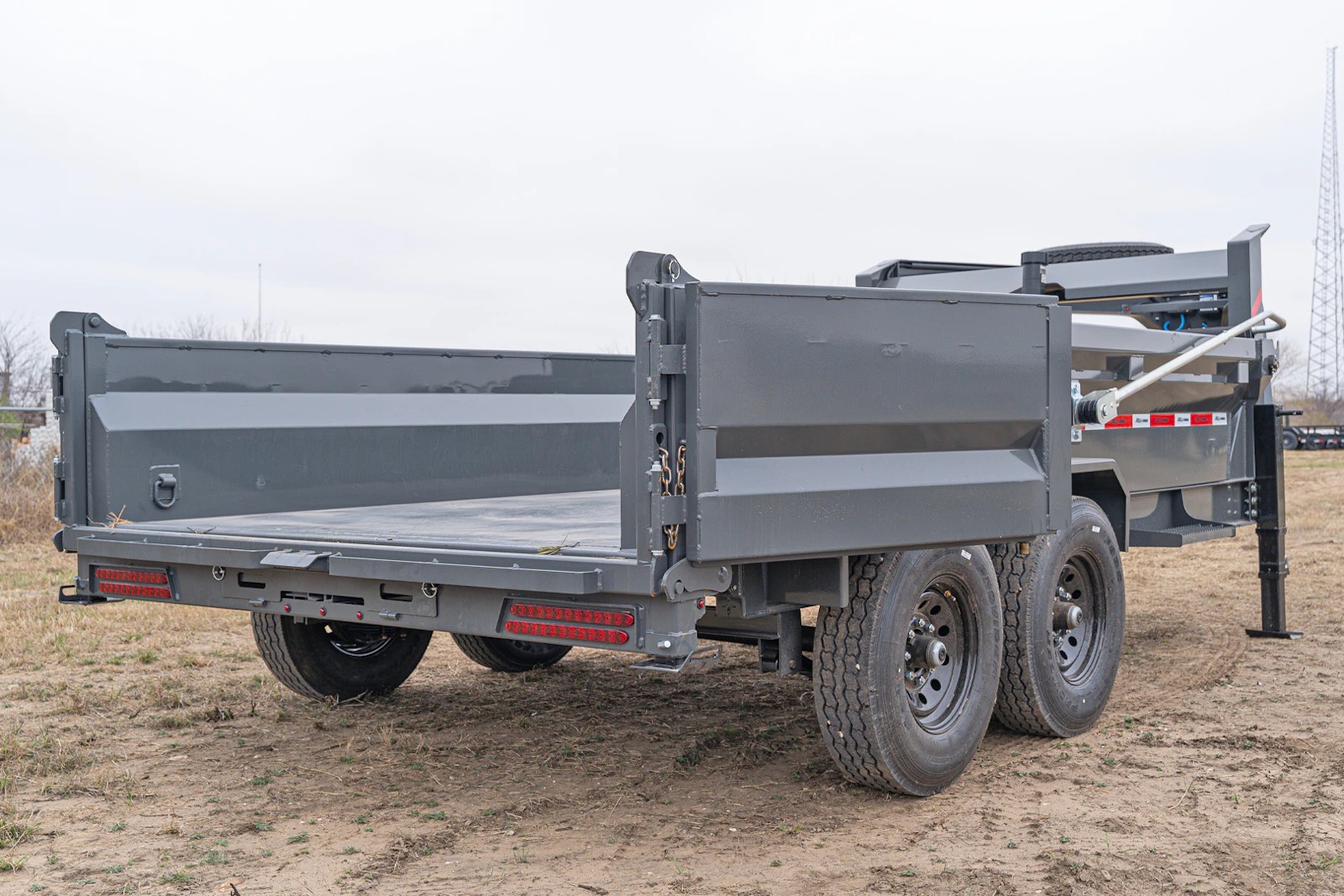

| Gate | 2-way Gate (Barn Door & Spread Gate) |
| Jack (Front) | Drop Leg Jack 10,000 lb (2) |

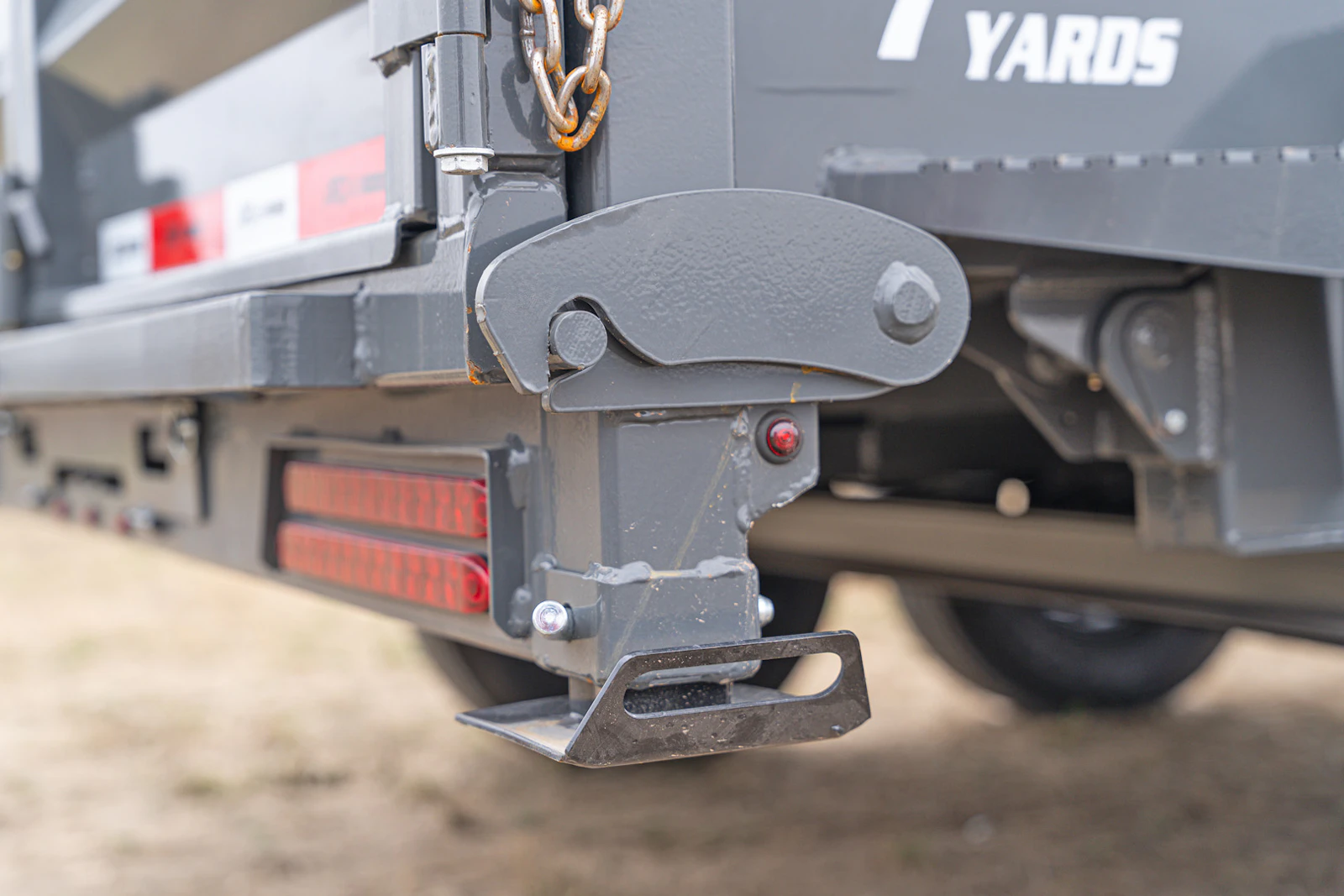

| Jack (Rear) | Rear Support |
| Ramp(s) | 78″ Slide-in |
| Safety Features | Coupler Chains, DOT Reflective, Conspicuity Tape, Electric Breakaway Kit w/ Charger |
| Spare | Mount Only |

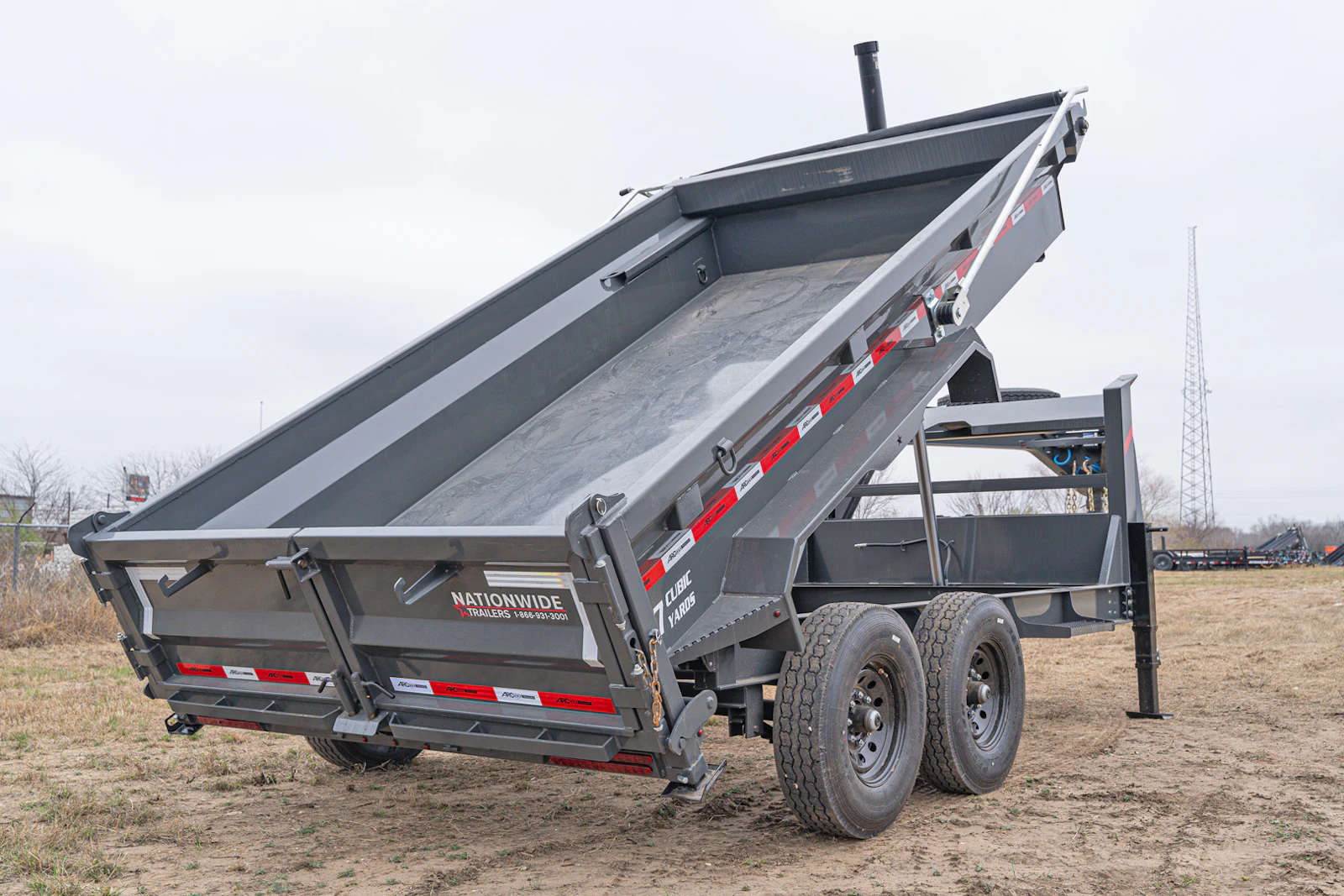

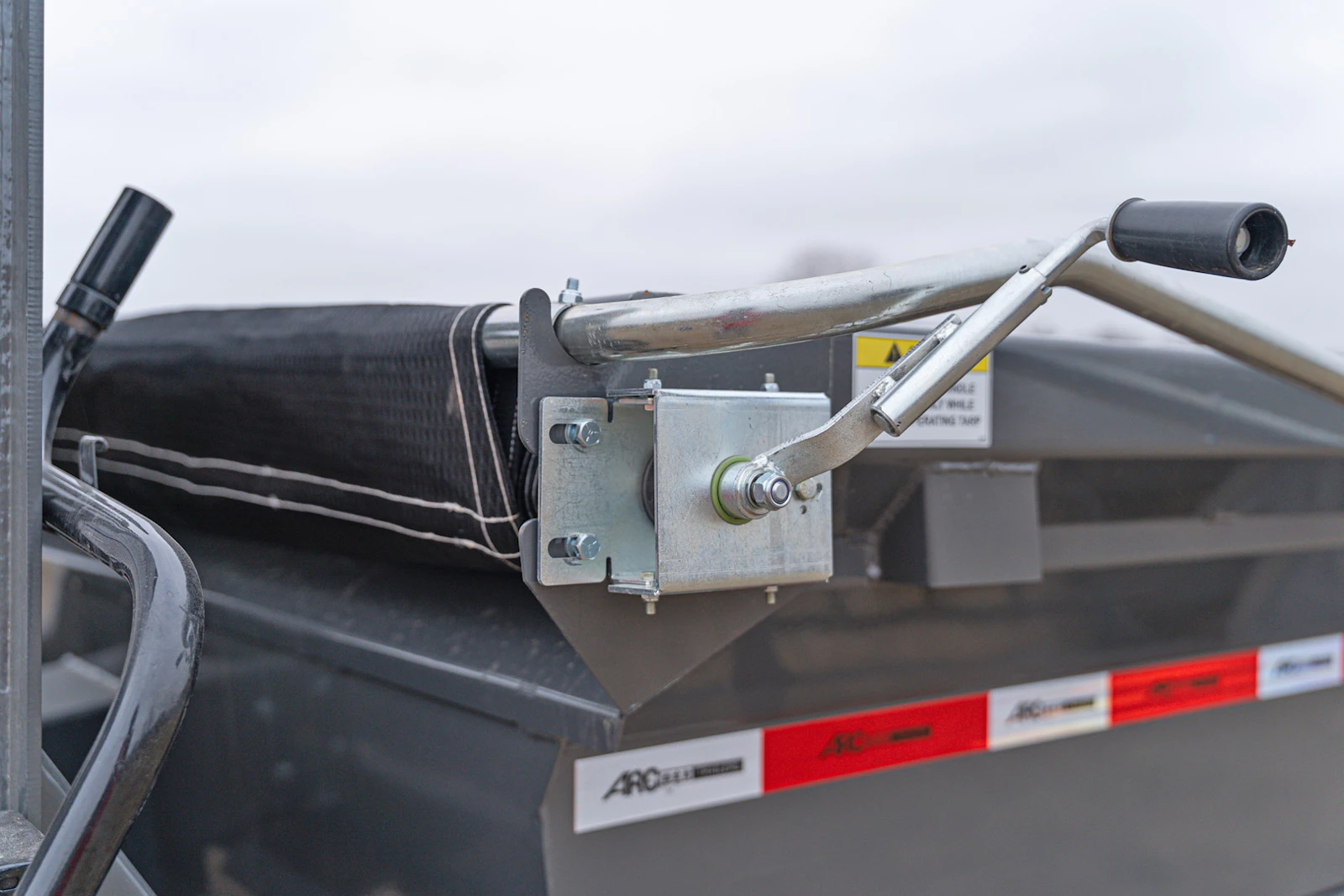

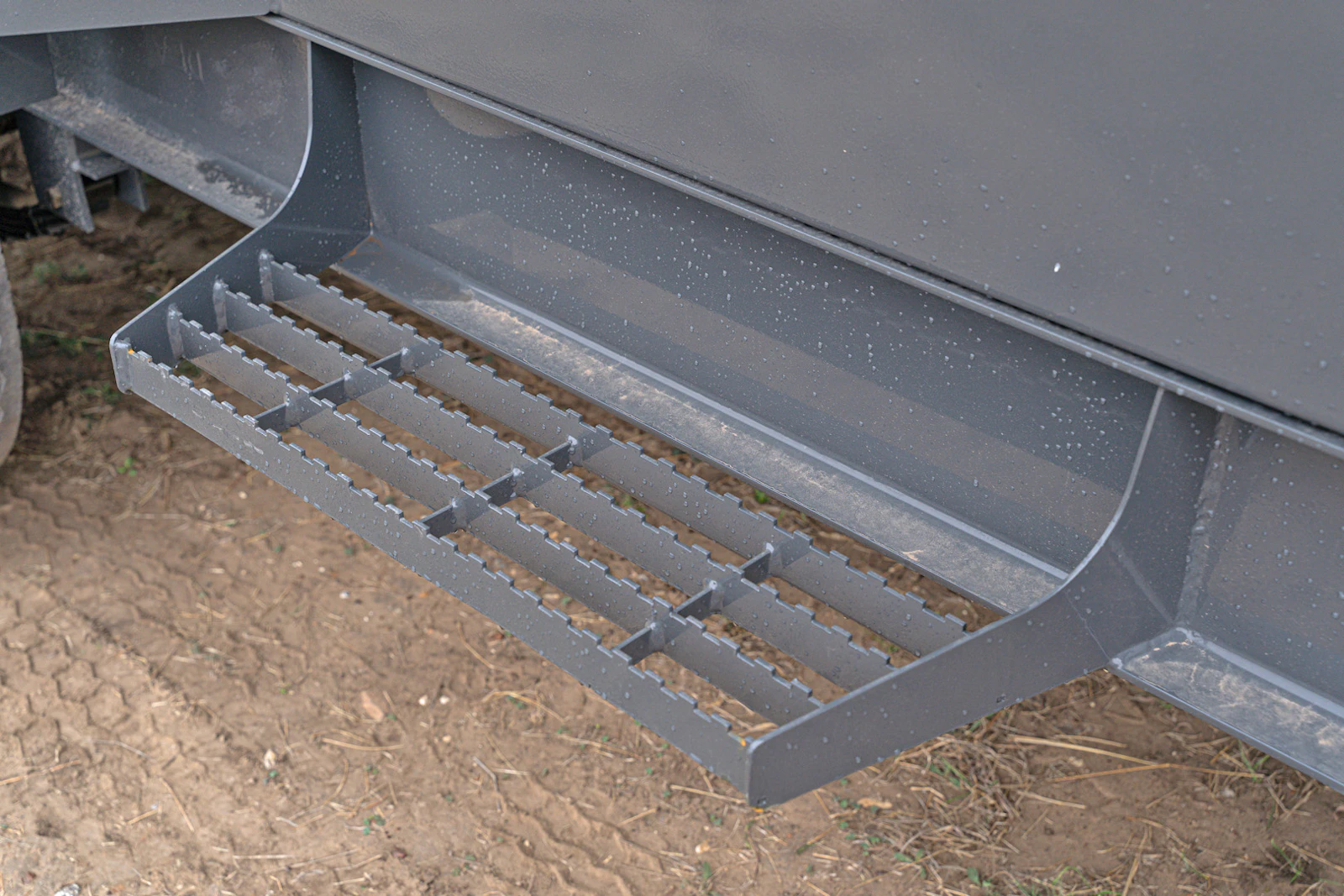

| Special Features | Long Arm EZ-Roll Tarp System, Power Up/Gravity Down, 45 Degree Dump Pitch, Side Steps |
| Storage | Oversized Toolbox |
