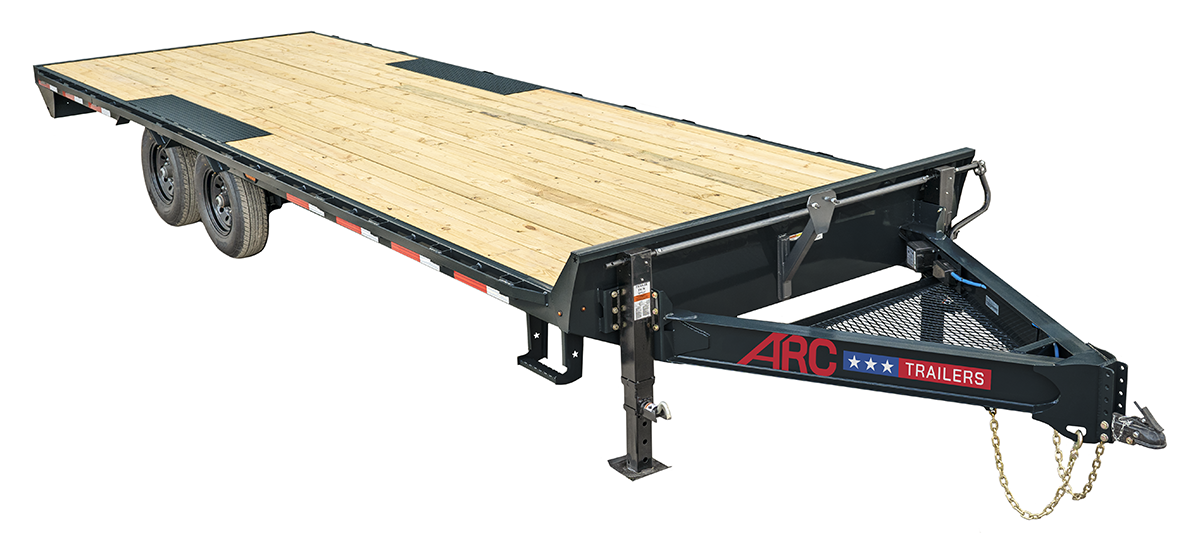

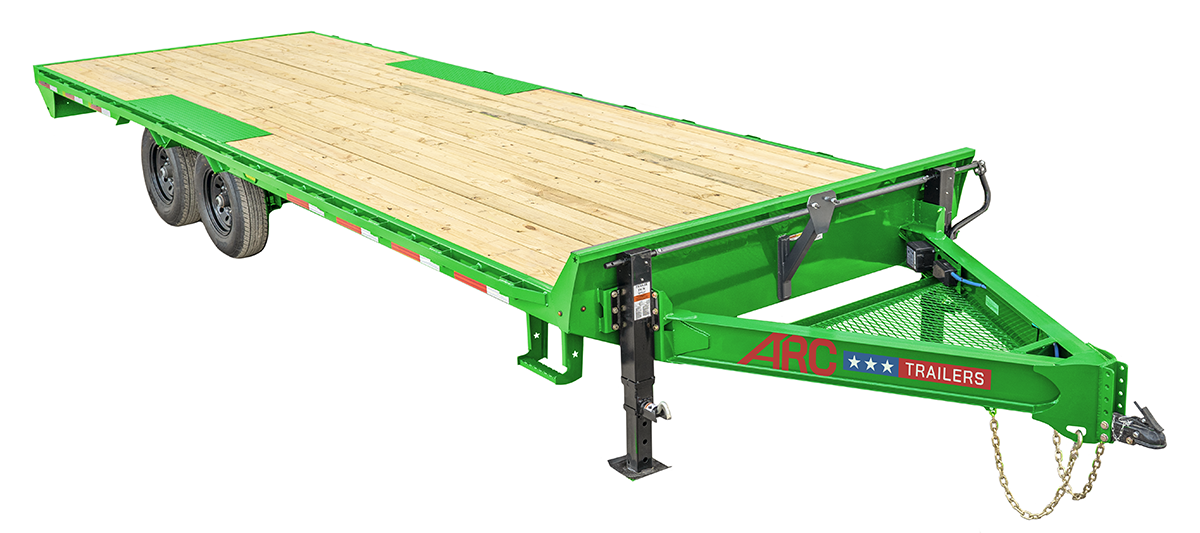

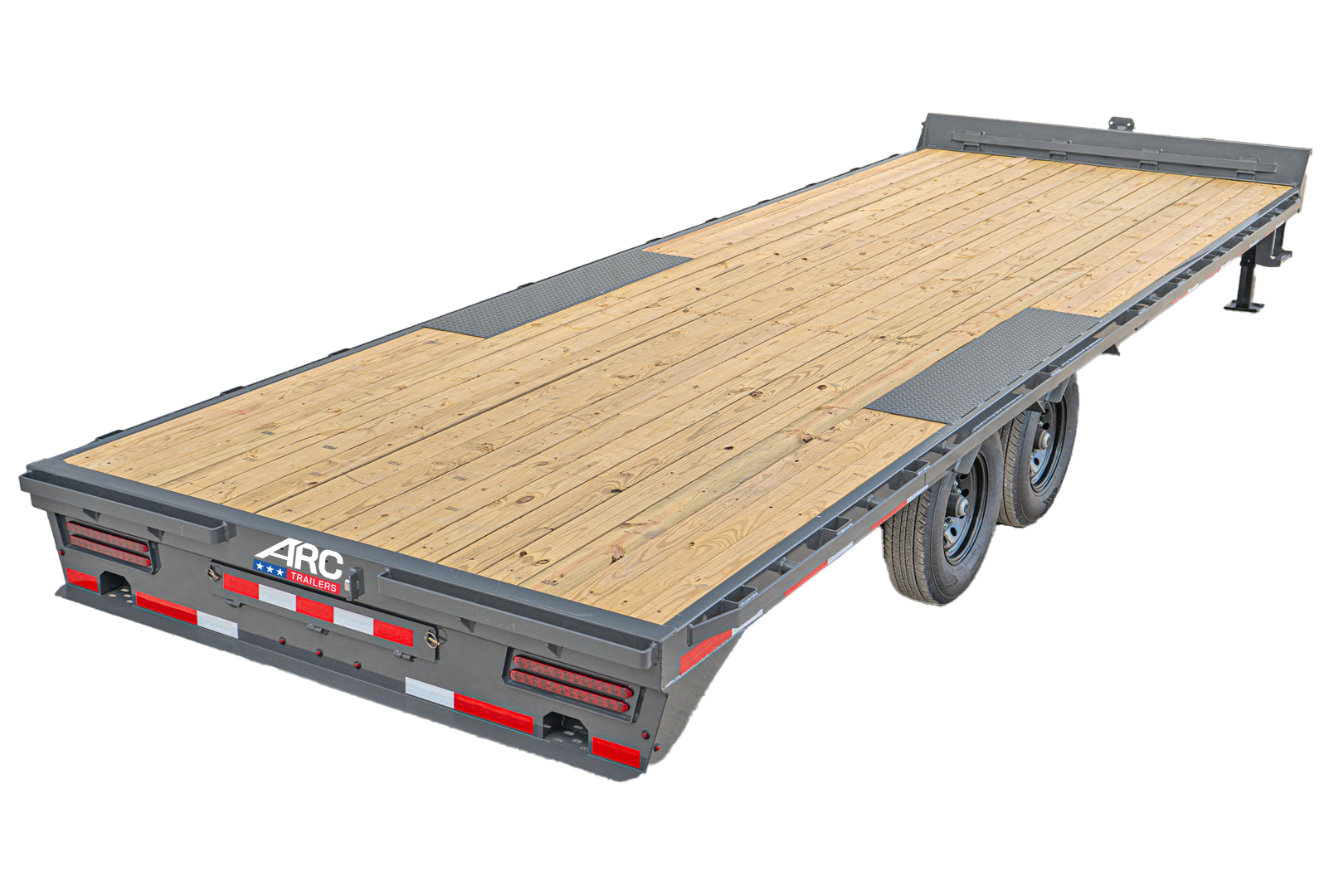

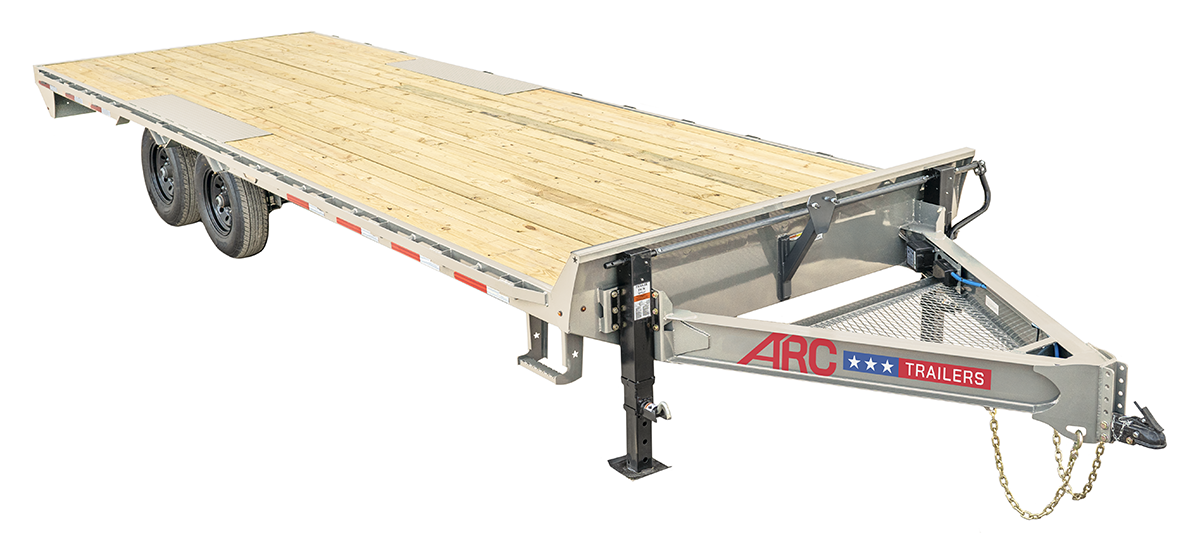

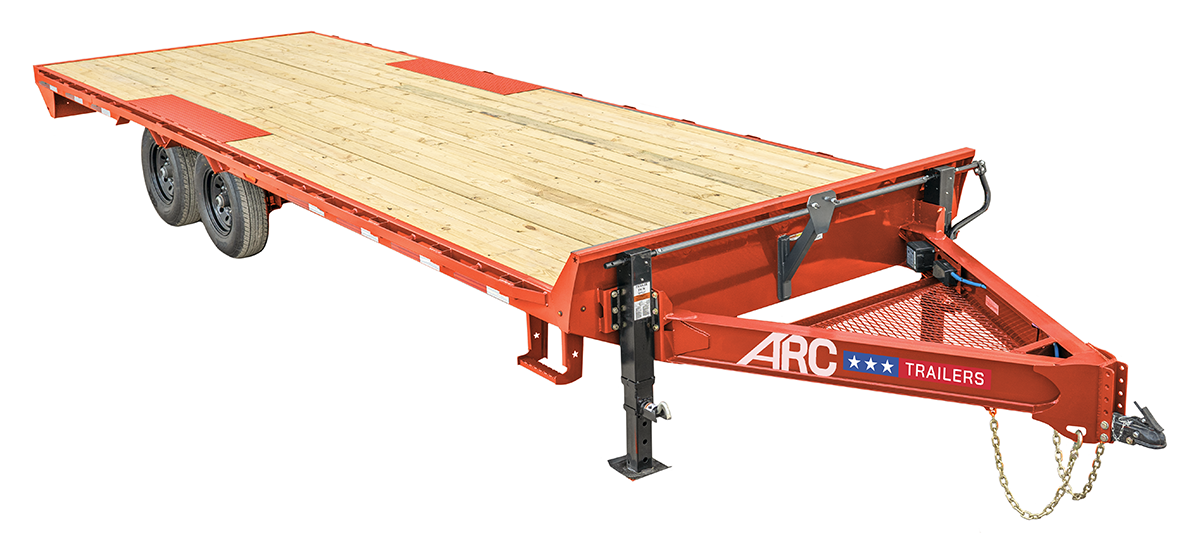

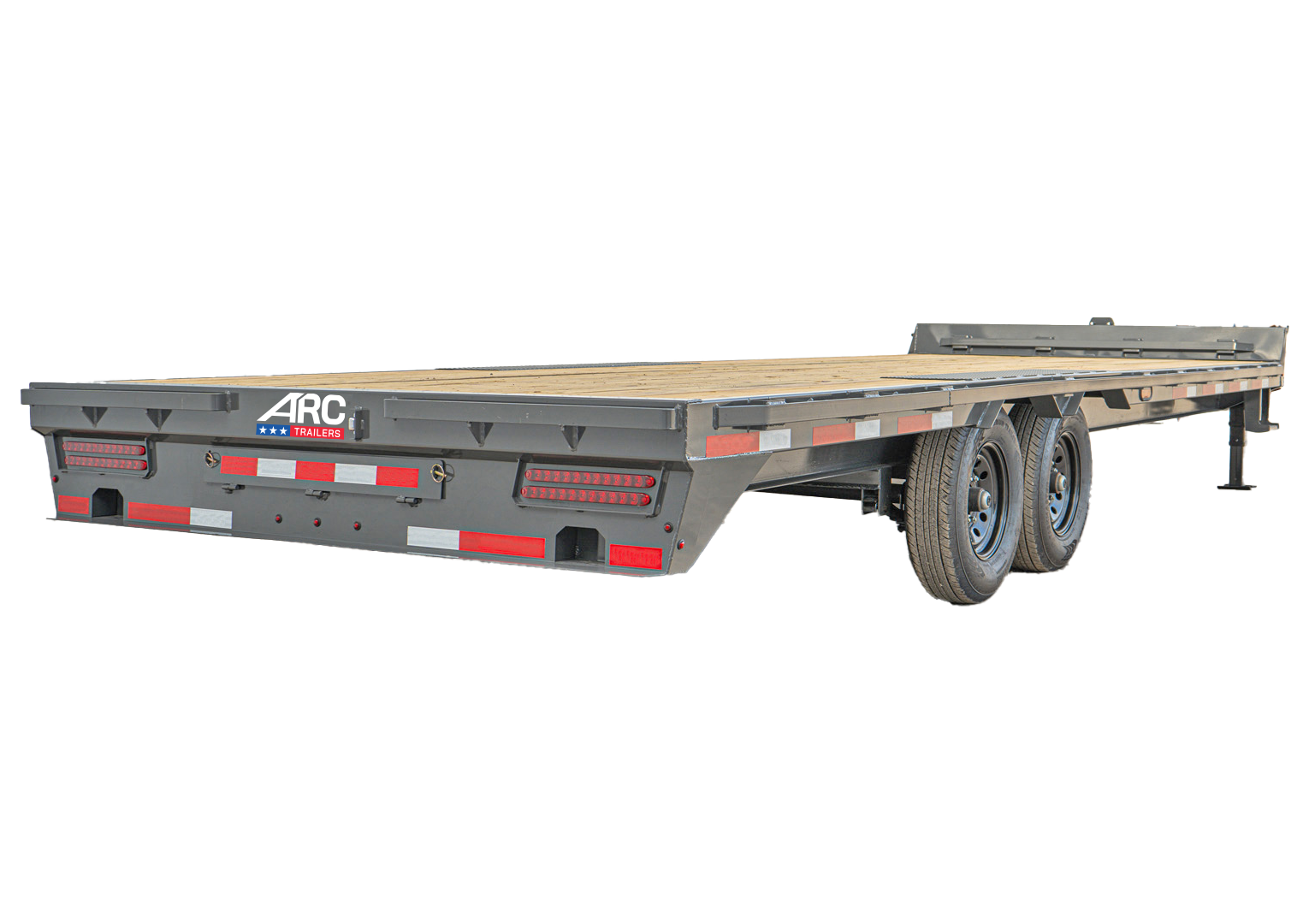

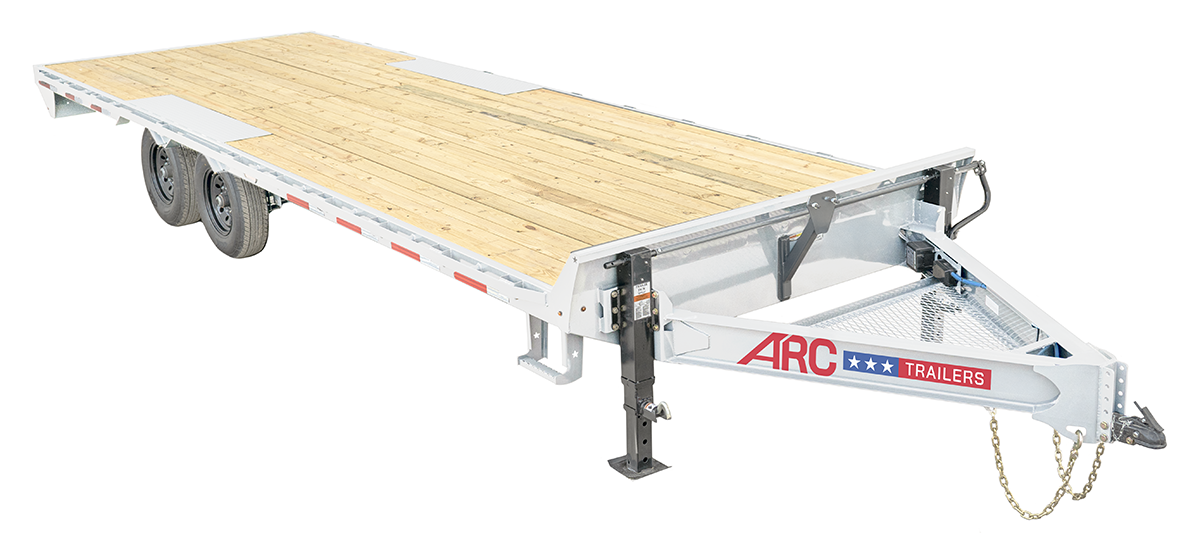

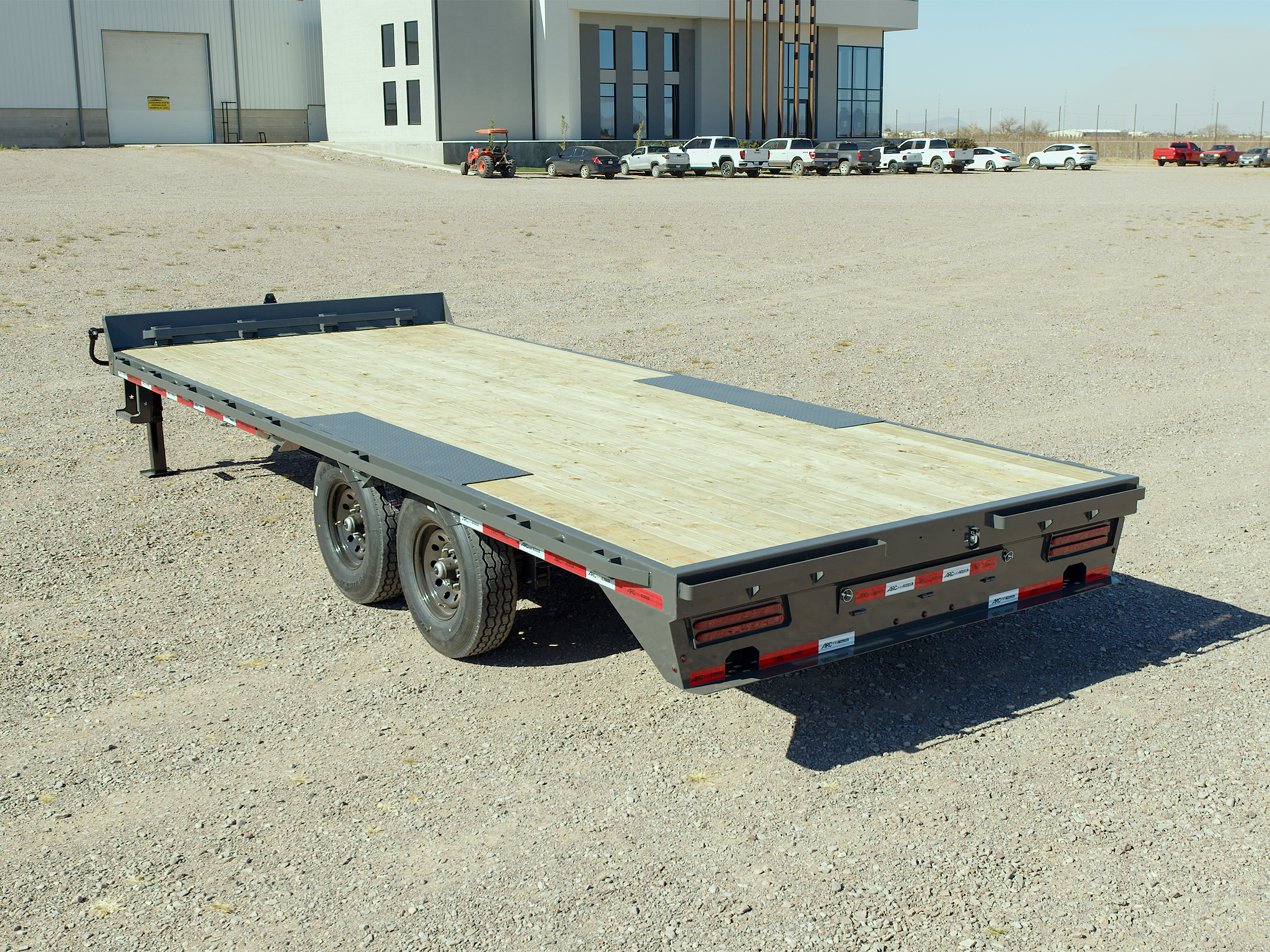

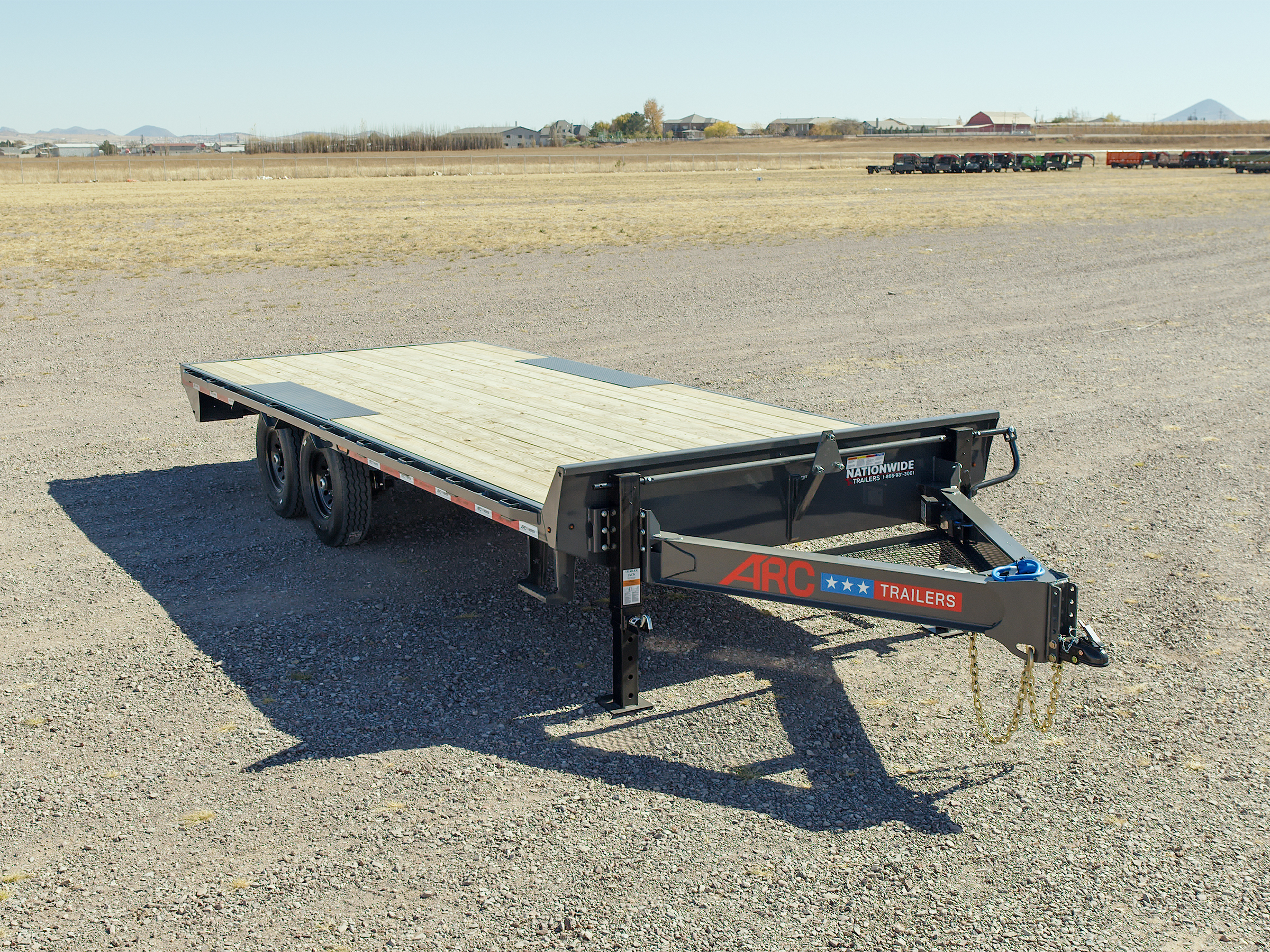

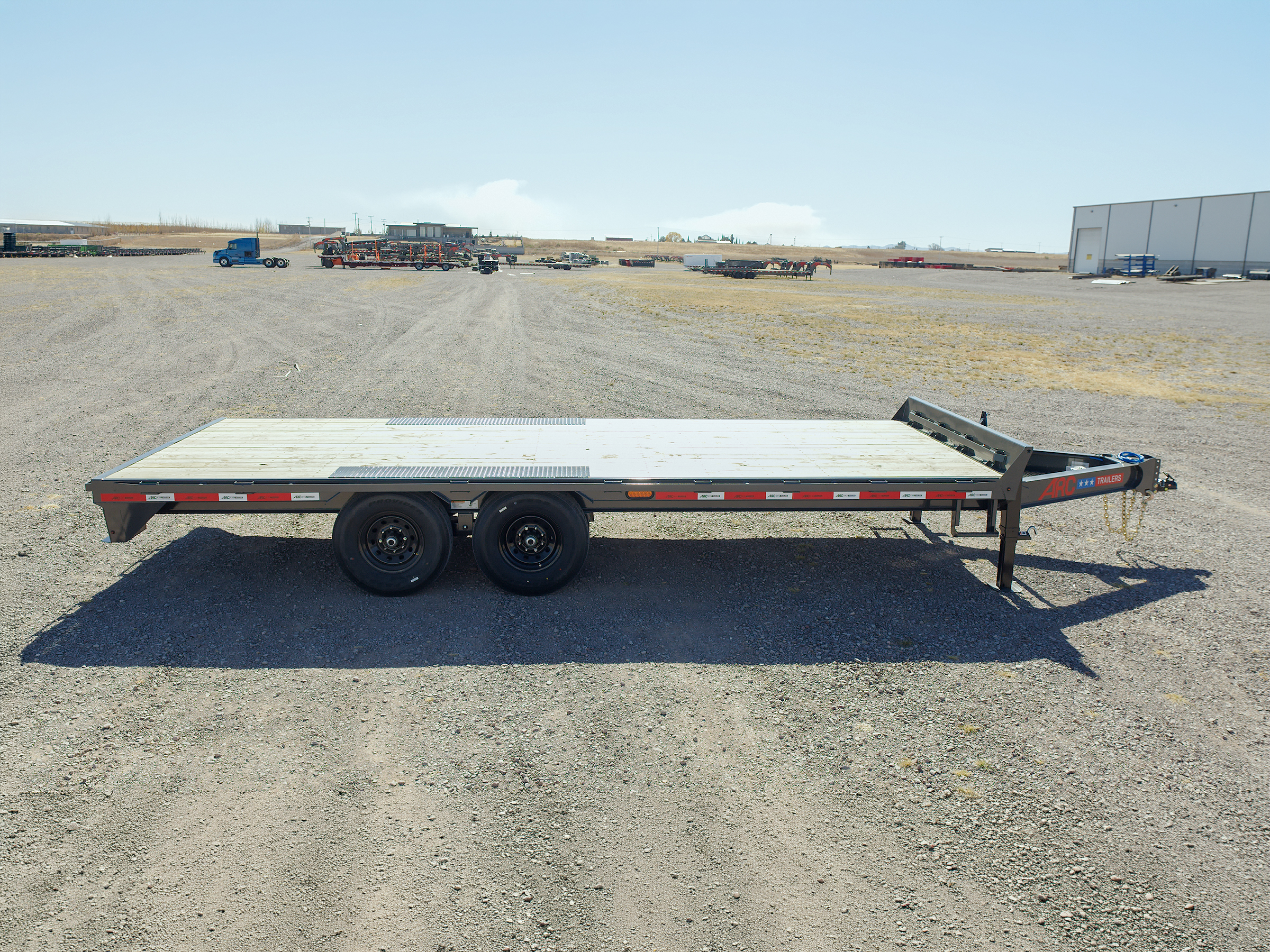

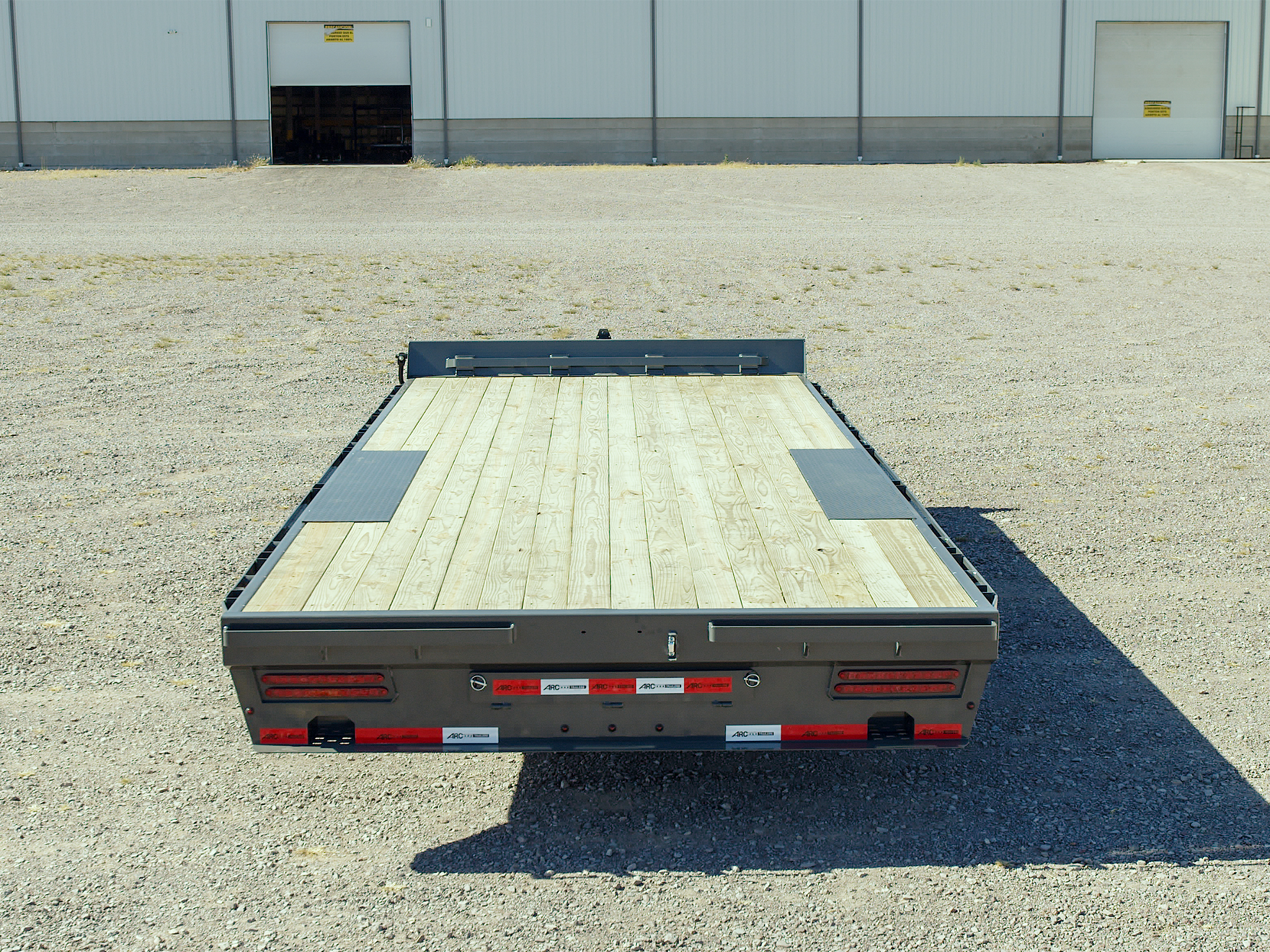

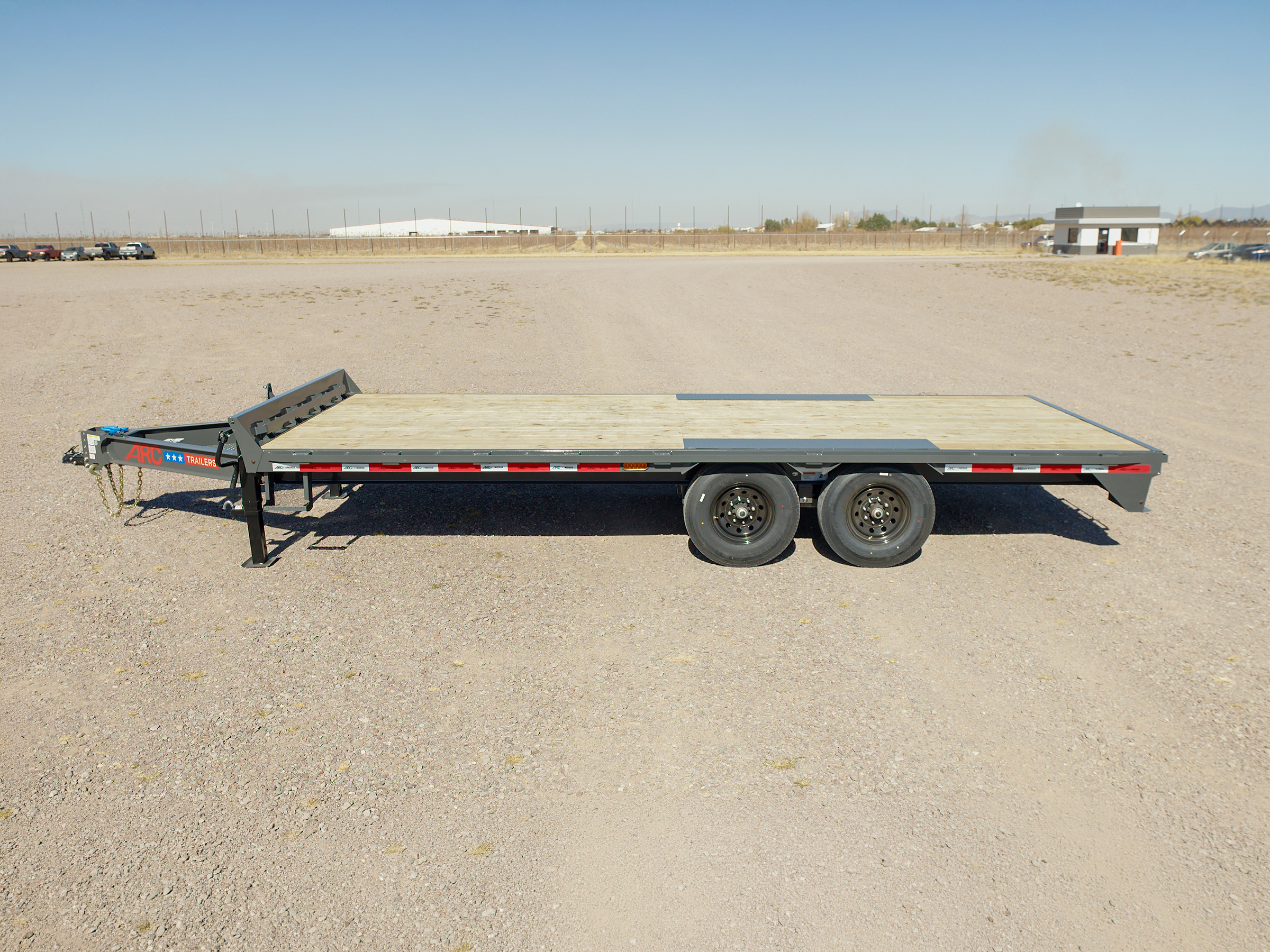

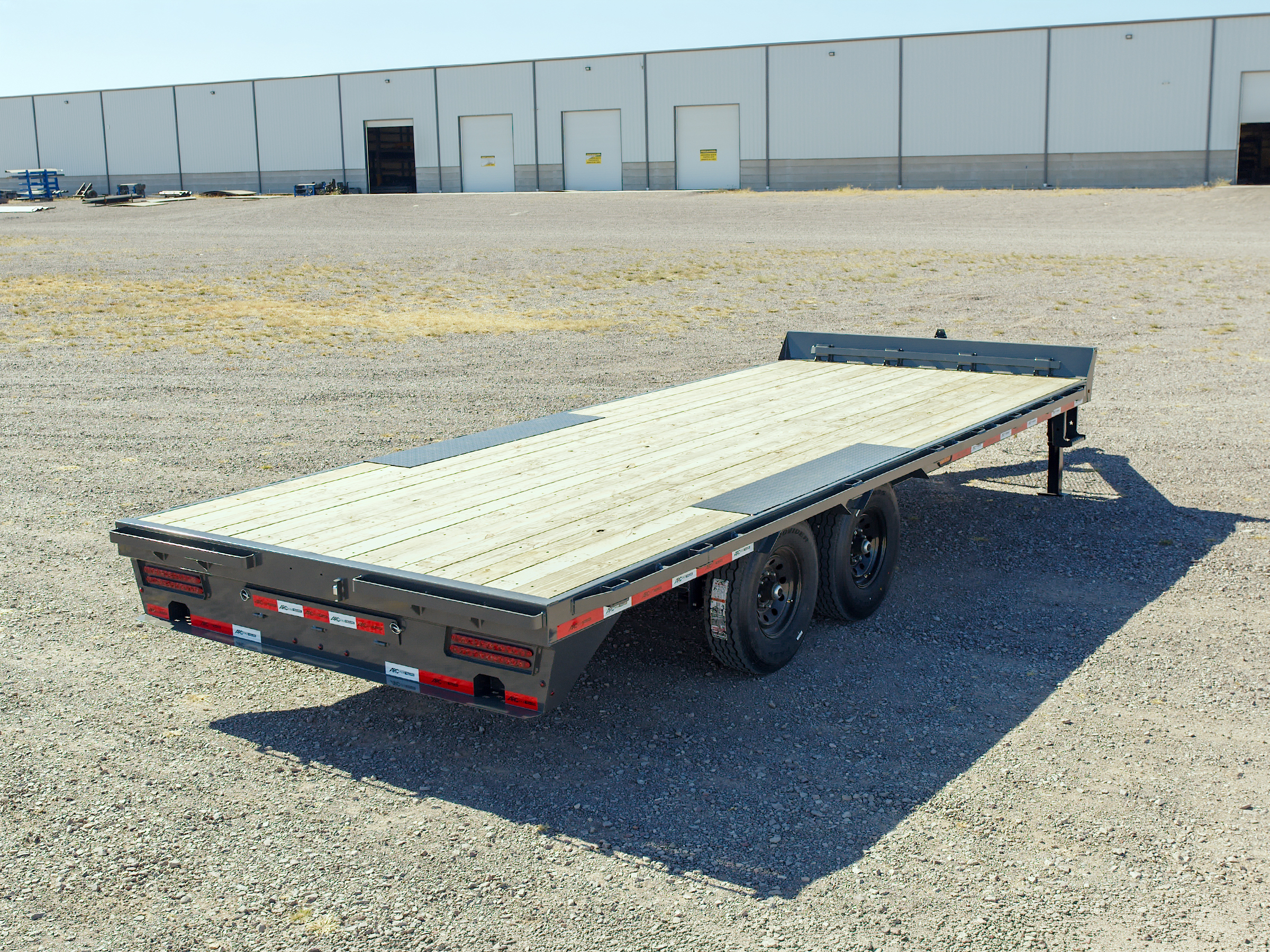

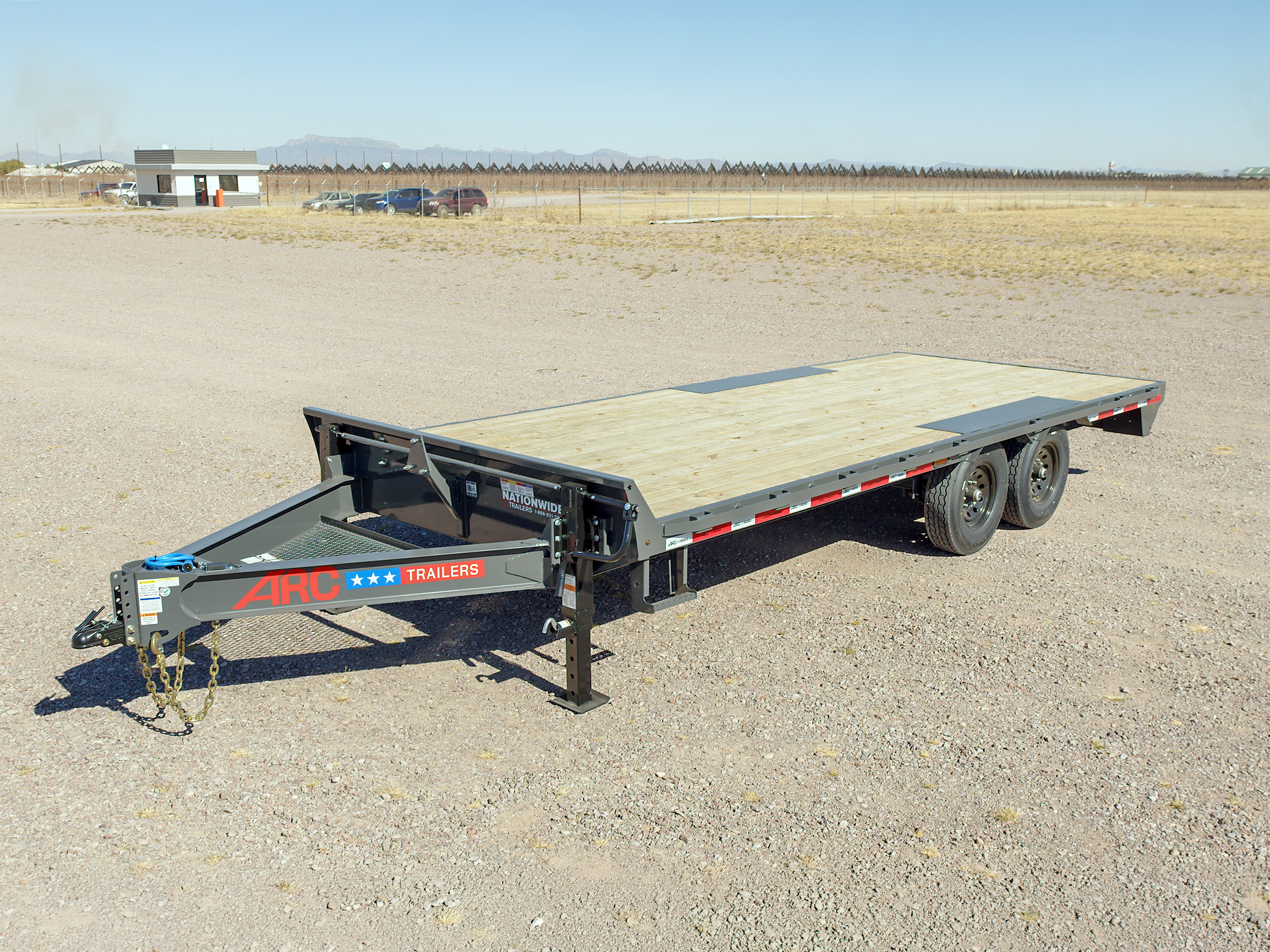

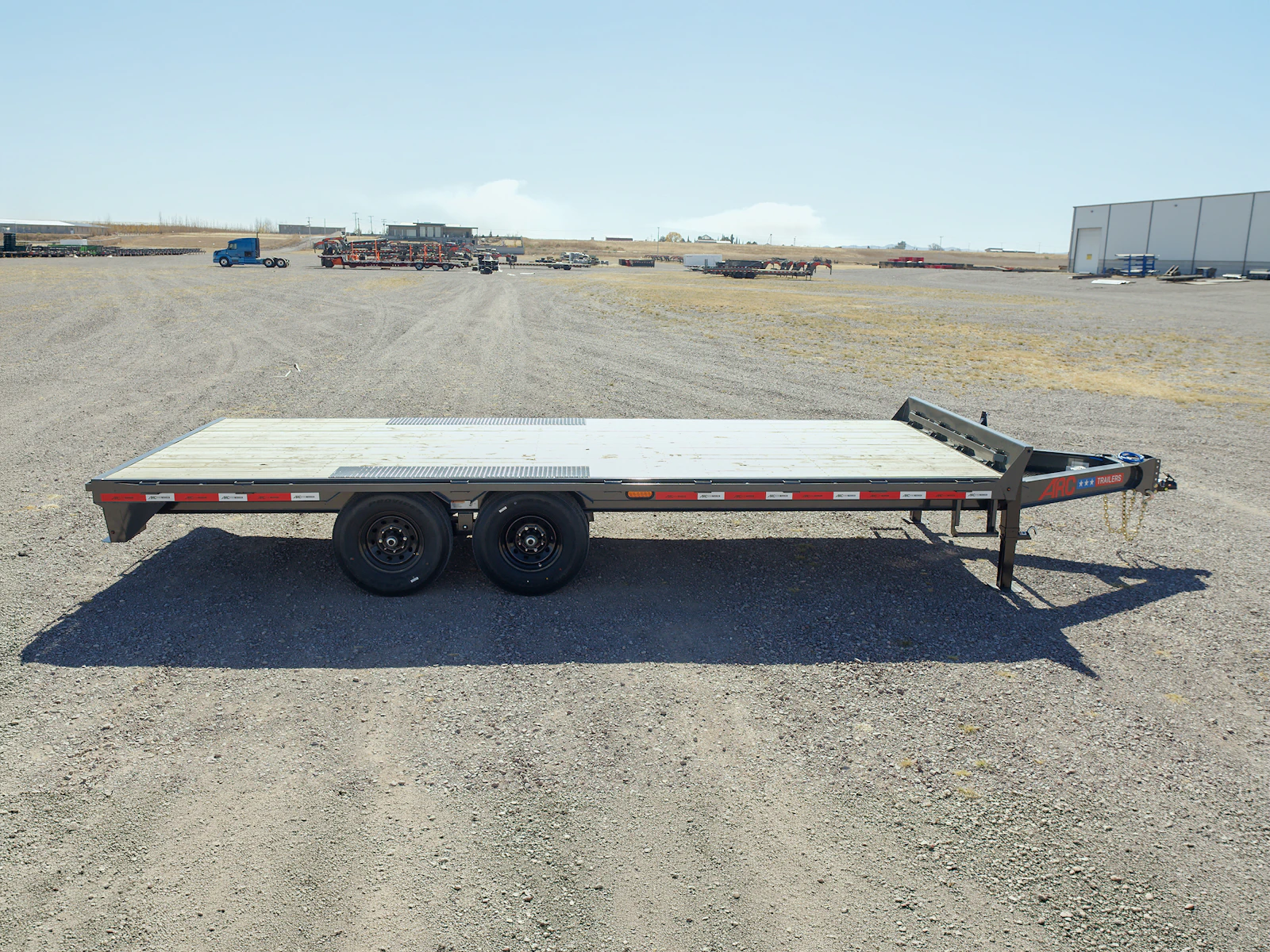

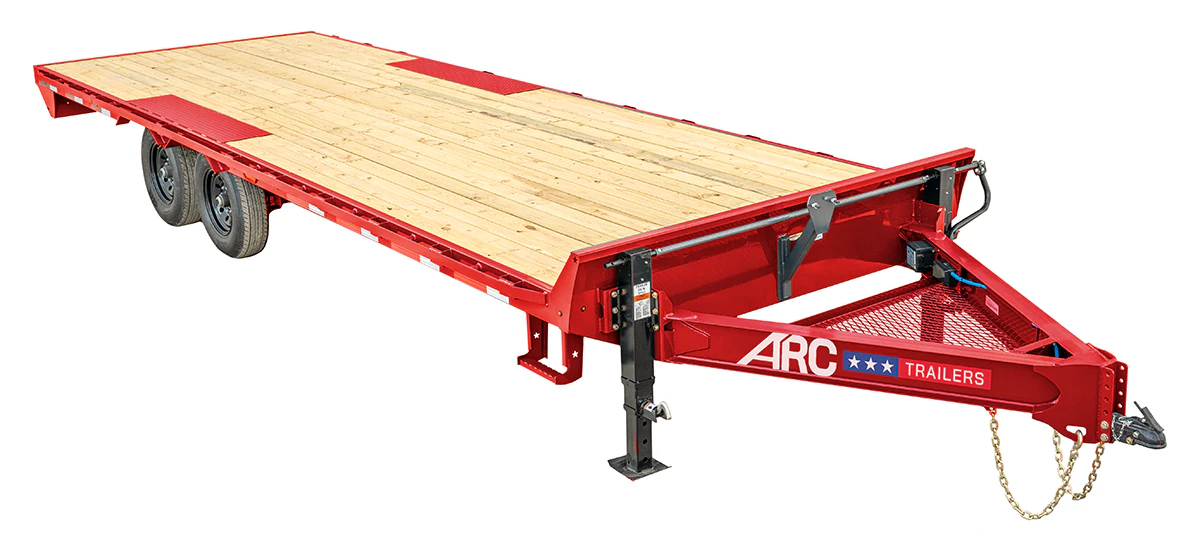

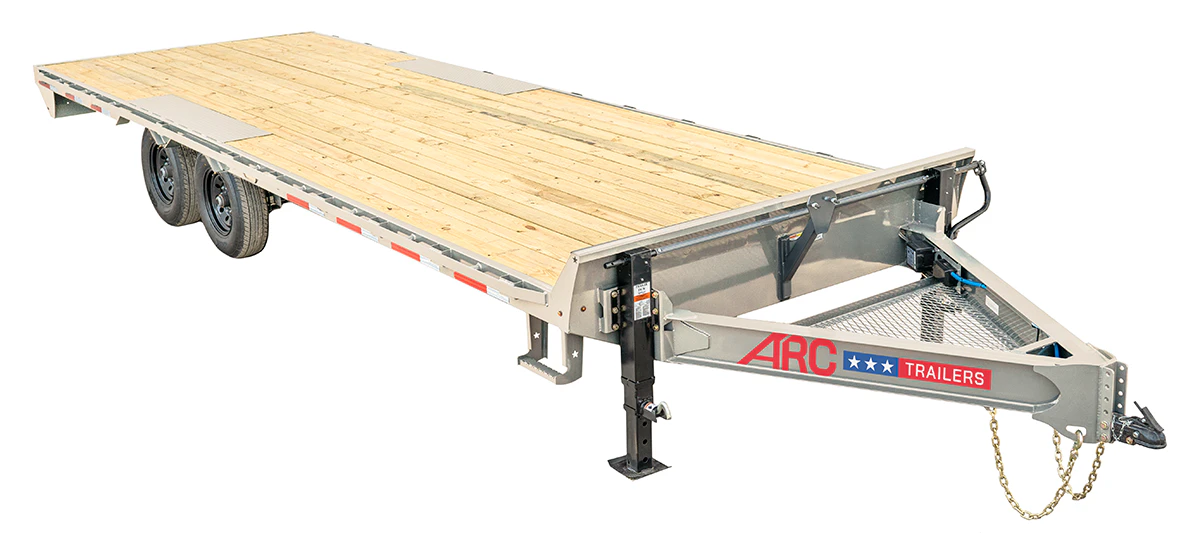

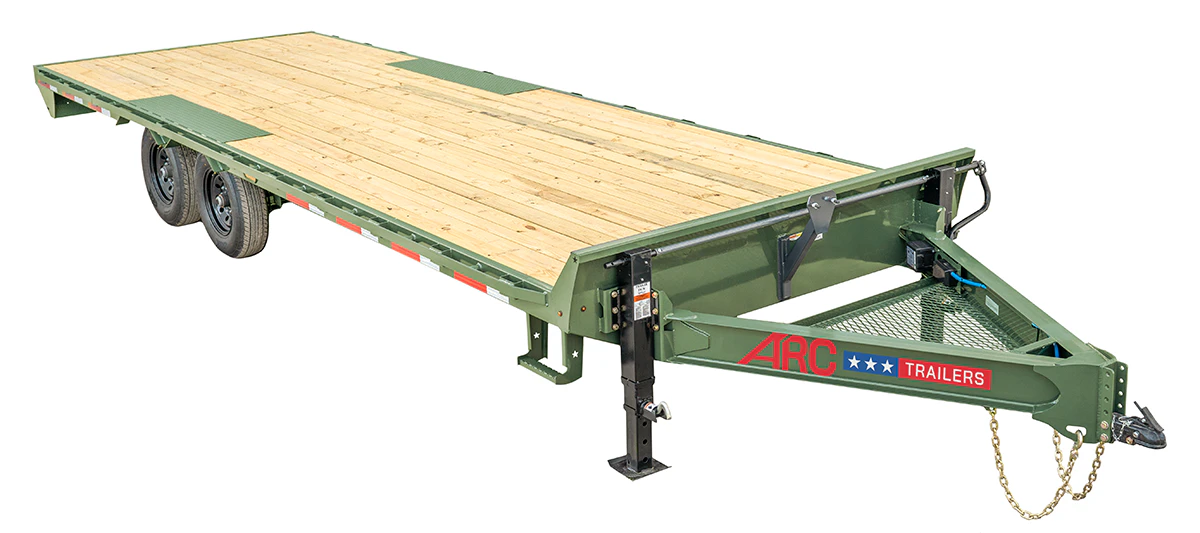

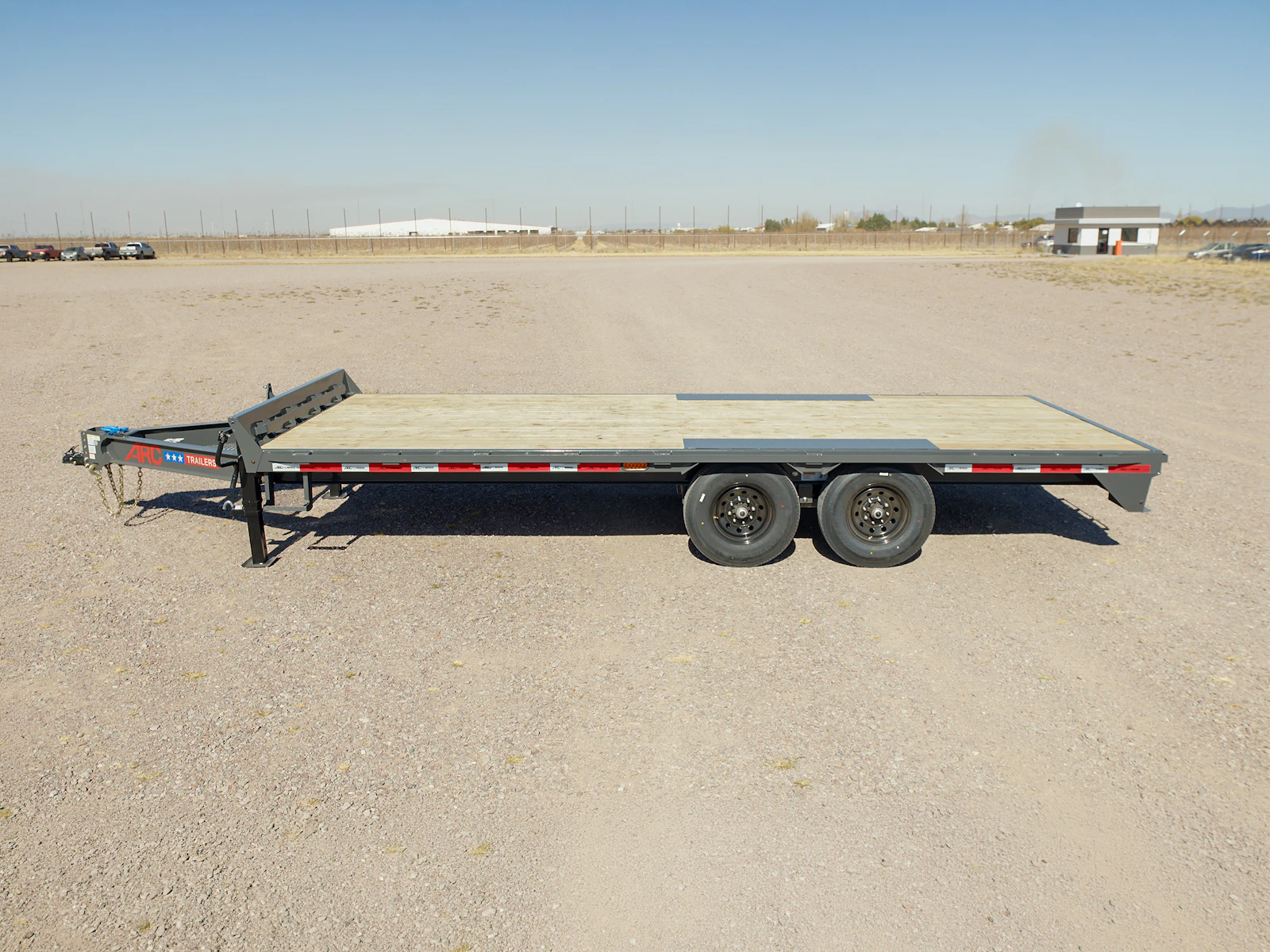

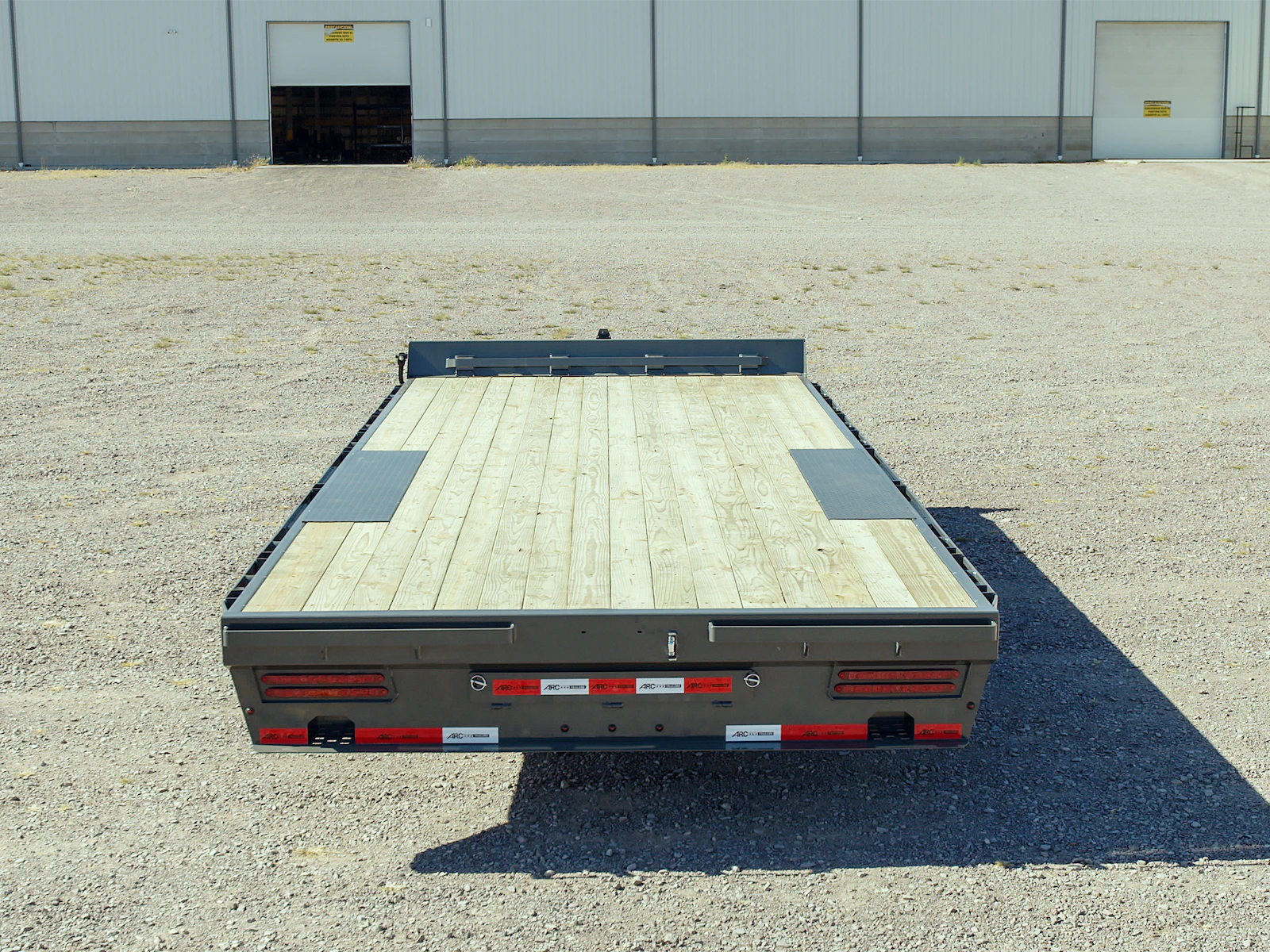

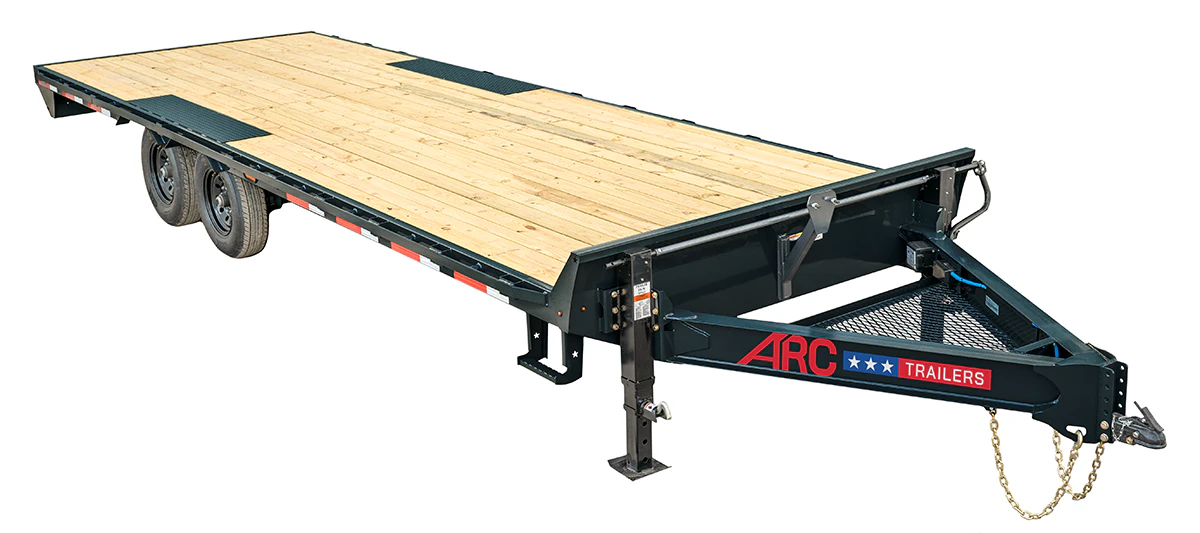

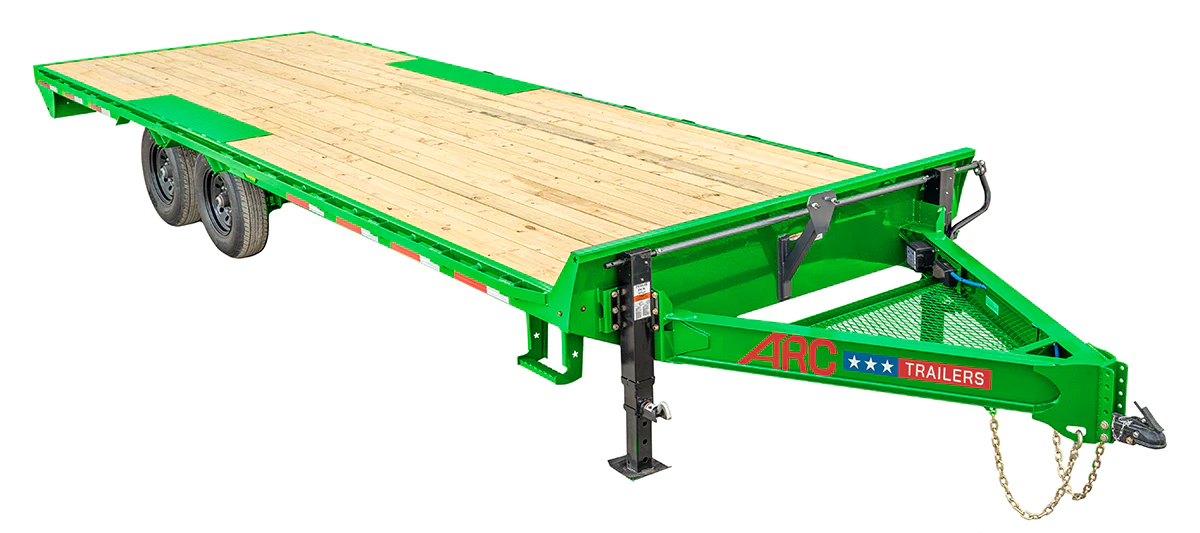

A-BDS
$8,800.00
Build Yours
Standard Specs
Overview
| Standard Code | A-BDS |
| Width | 102″ |
| GVWR | 14,000 lb |
| GAWR | 7,000 lb x2 |
Body
| Coupler | 2 5/16″ 15,000 lb Adjustable Ball Coupler |
| Crossmembers | 3″ Channel on 16″ Centers |
| Deck | 2″ Treated Pine |
| Deck Height | 33″ |
| Deck Type | Deckover |
| Finish | PPG Premium Powder Coat |
| Frame Size | 8″ x 10 lb |
| Frame Type | I-Beam |
| Frame (Deck) | 2″ x 6″ x 1/8″ Square Tube |
| Tongue | 8″ x 10 lb I-Beam |
Axles & Suspension
| Axle | E-Z Lube Brake 7,000 lb (2) |
| Axle (Tires) | Singles |
| Axle Lubrication | Grease |
| Brake Type | Electric Drum |
| Suspension | 6 Leaf Slipper Spring |
| Tire Size | 235/80R16 |
| Tire Type | Radial 10-ply |
| Wheel(s) | 16″ Black Mod |
Electronics
| Lighting | All LED |
| Power Accessories | 7-Way All Weather Wiring Harness |
Features
| Cargo Control | Rubrail & Stake Pockets |
| Jack (Front) | Drop Leg Jack 10,000 lb (1) |
| Ramp(s) | 6’6″ Slide-in Ramps |
| Safety Features | Coupler Chains, DOT Reflective, Conspicuity Tape, Electric Breakaway Kit w/ Charger |
| Spare | Mount Only |
| Storage | Tool Tray in Tongue |
| Tail | Straight |
