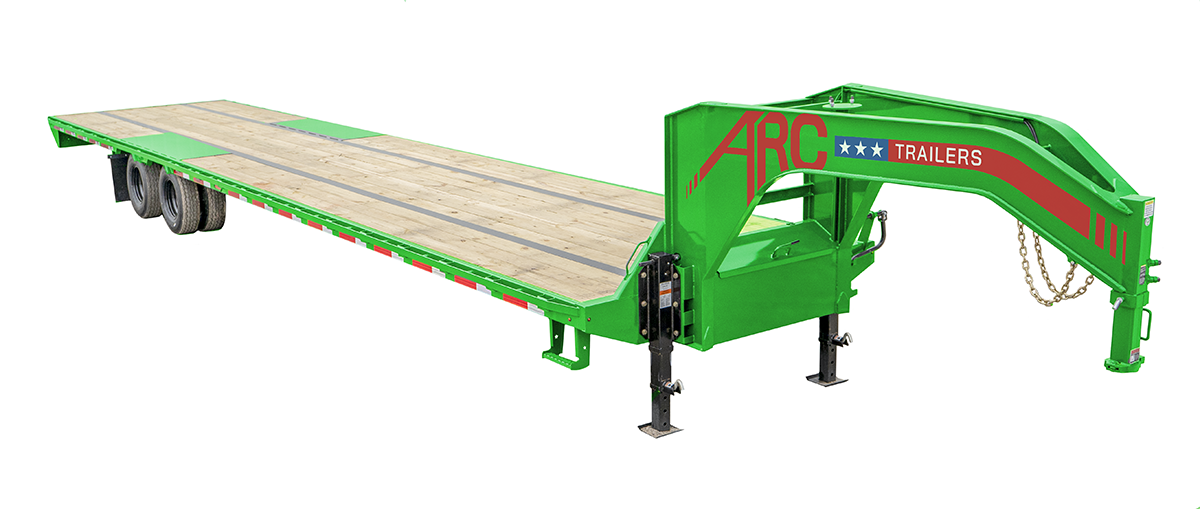

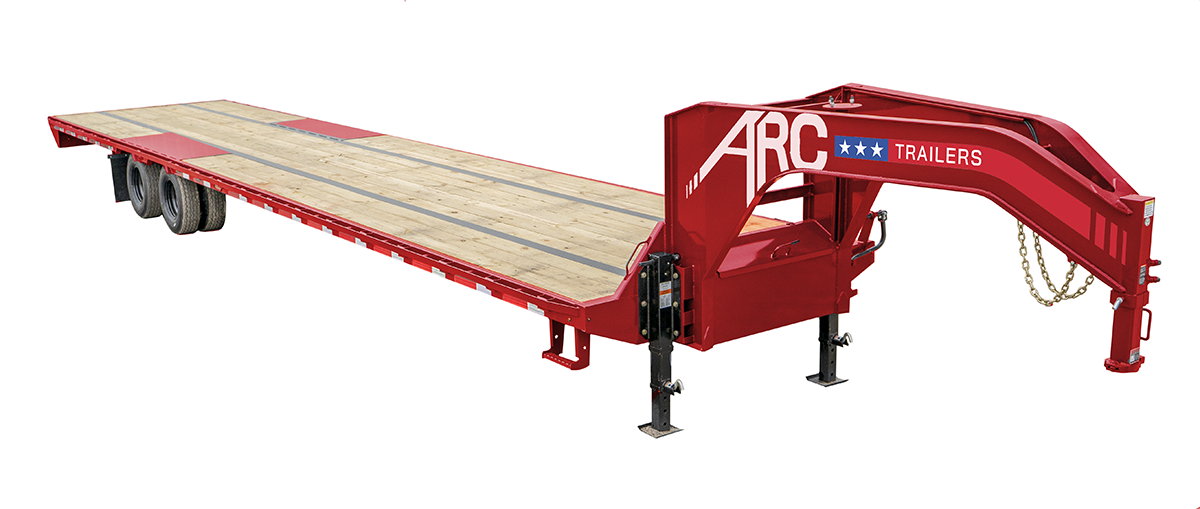

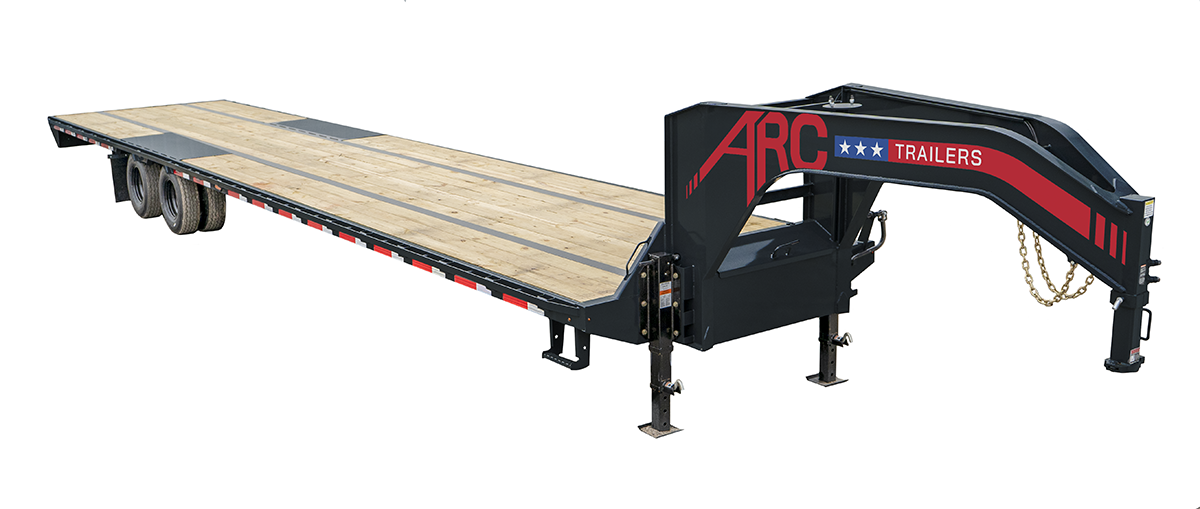

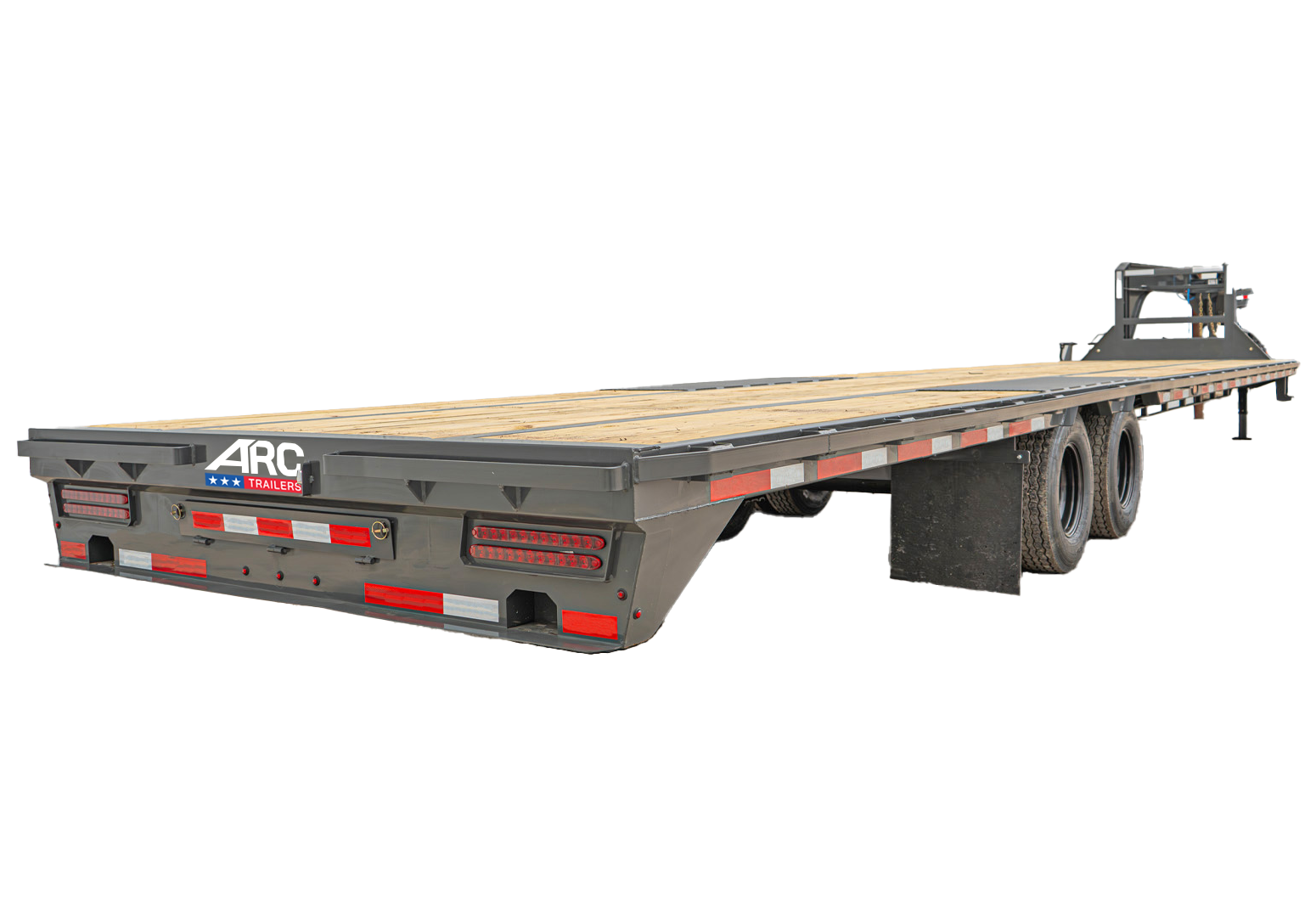

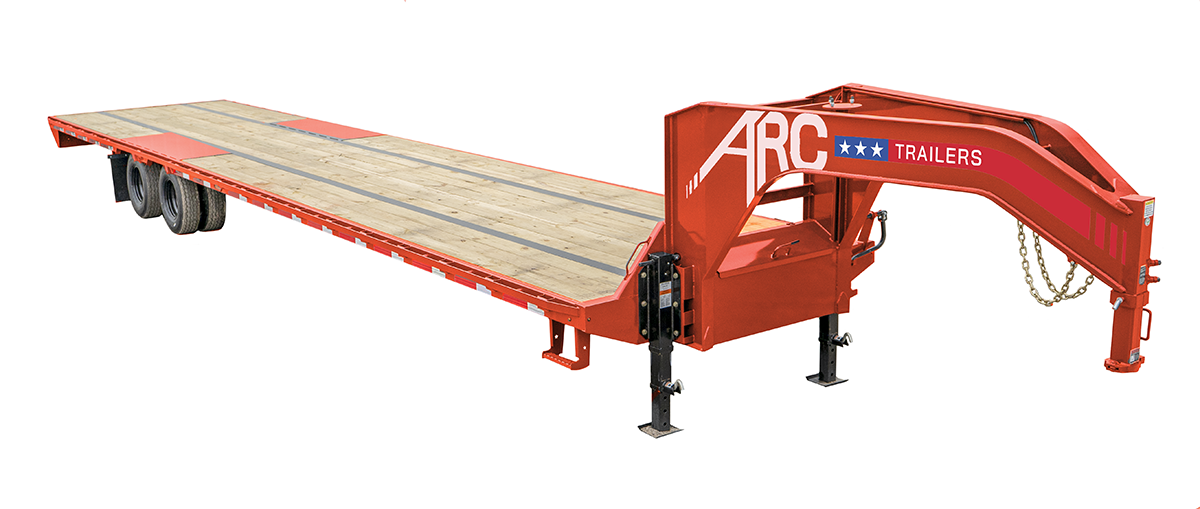

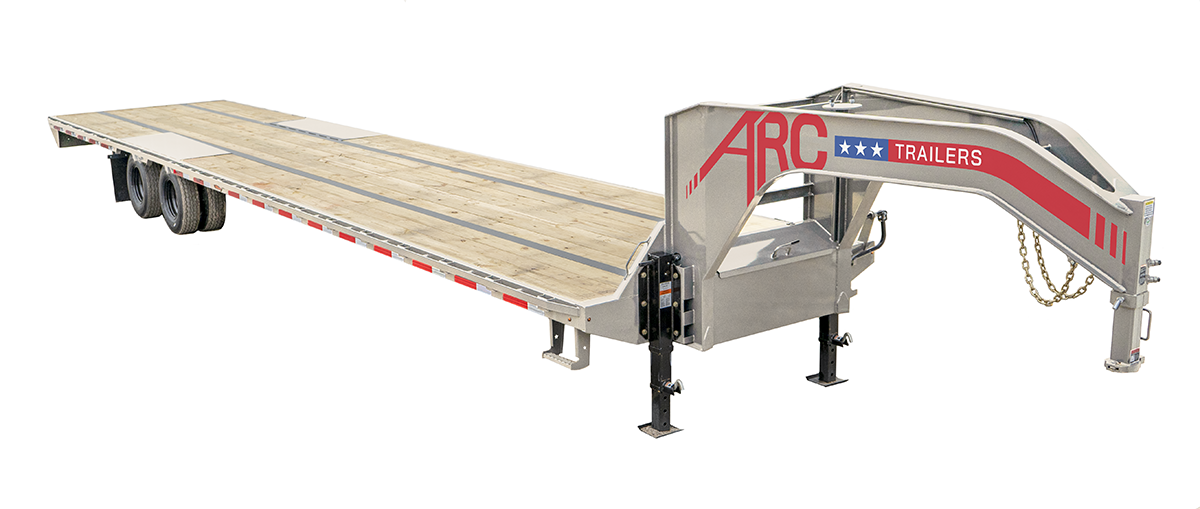

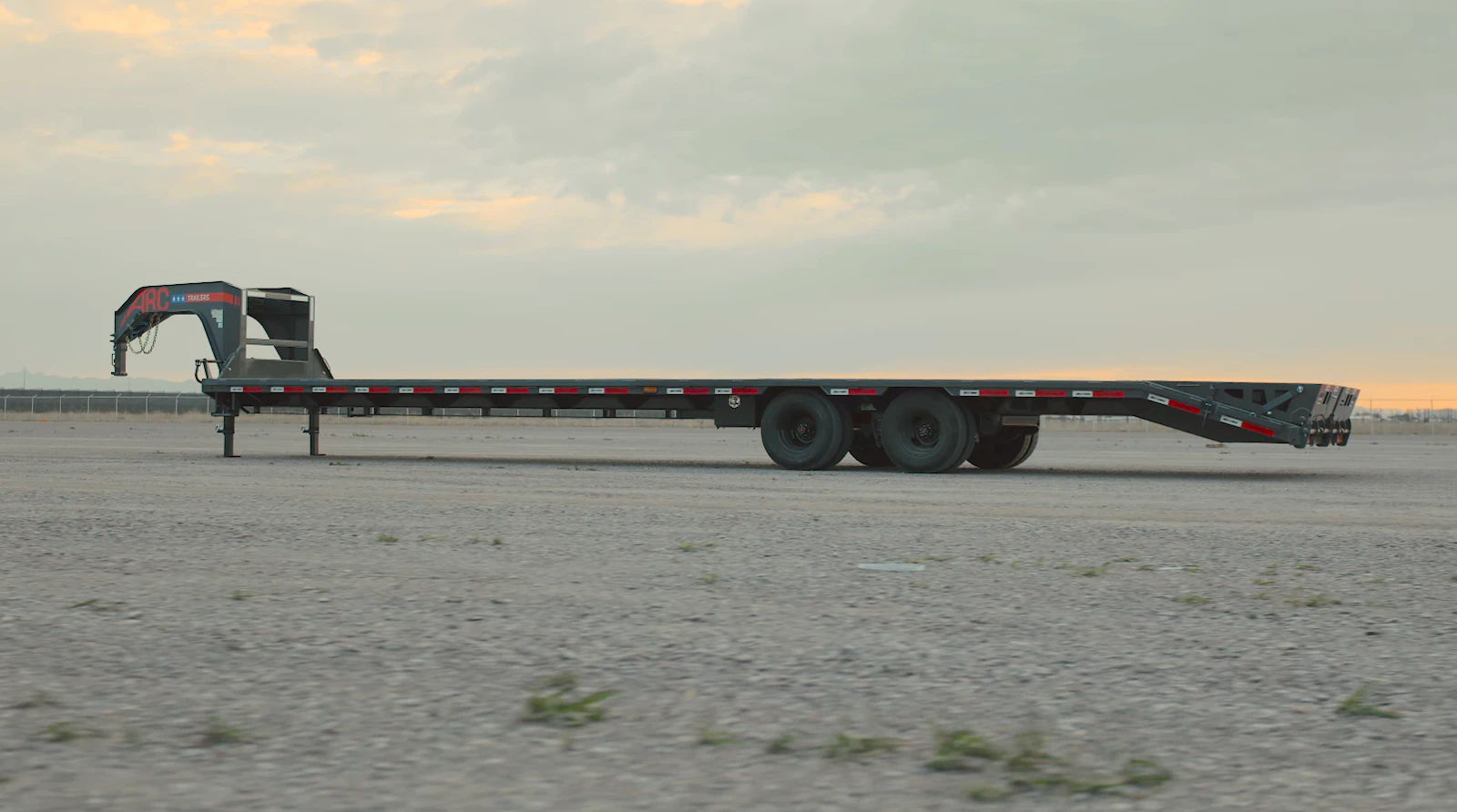

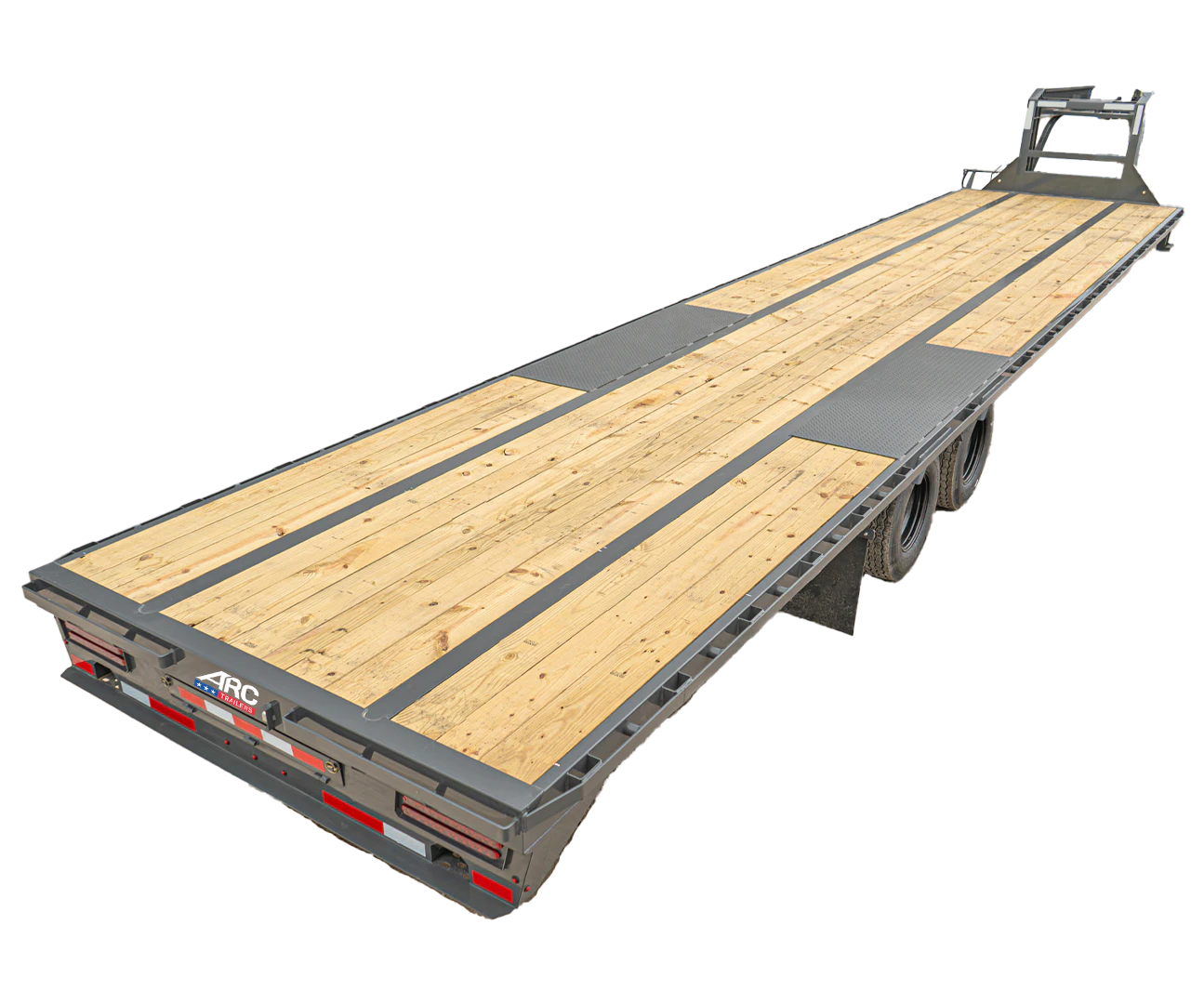

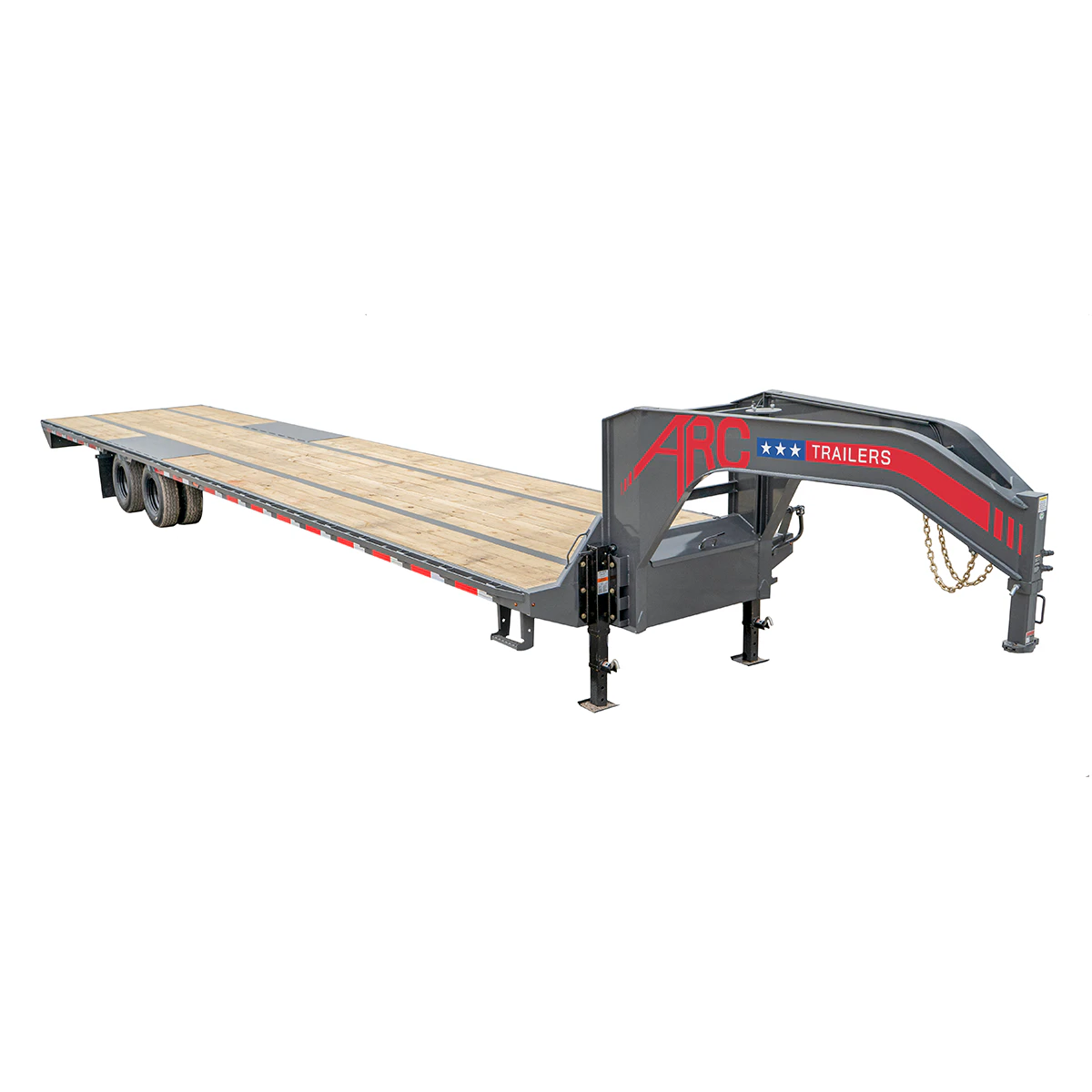

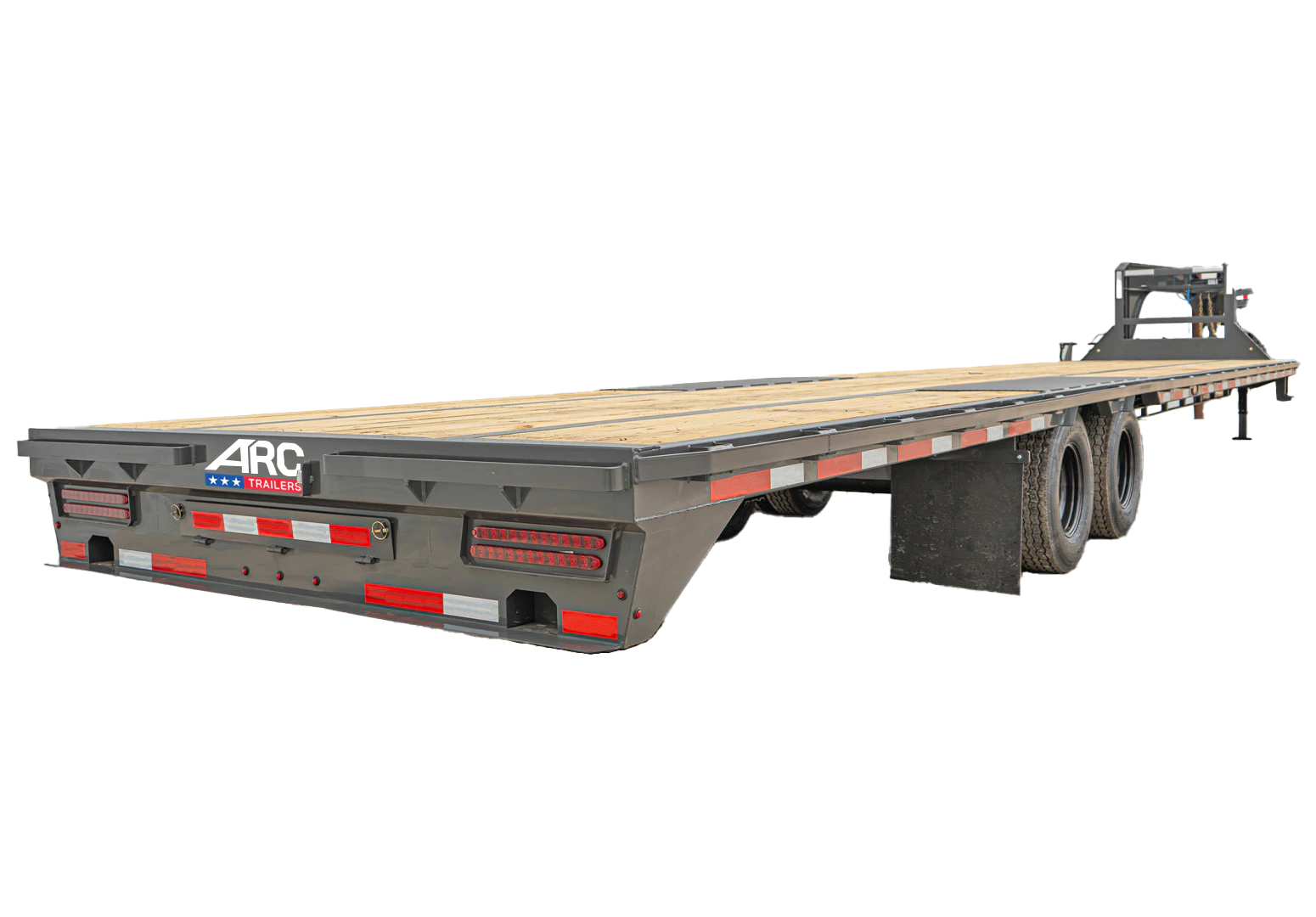

A-GDD

$15,399.00

Specs Sheet

Build Yours

Other

Flooring

Side Markers

Add to quote

Standard Specs

Overview
Standard Code A-GDD
Width 102″
GVWR 25,000 lb
GAWR 10,000 lb
Body

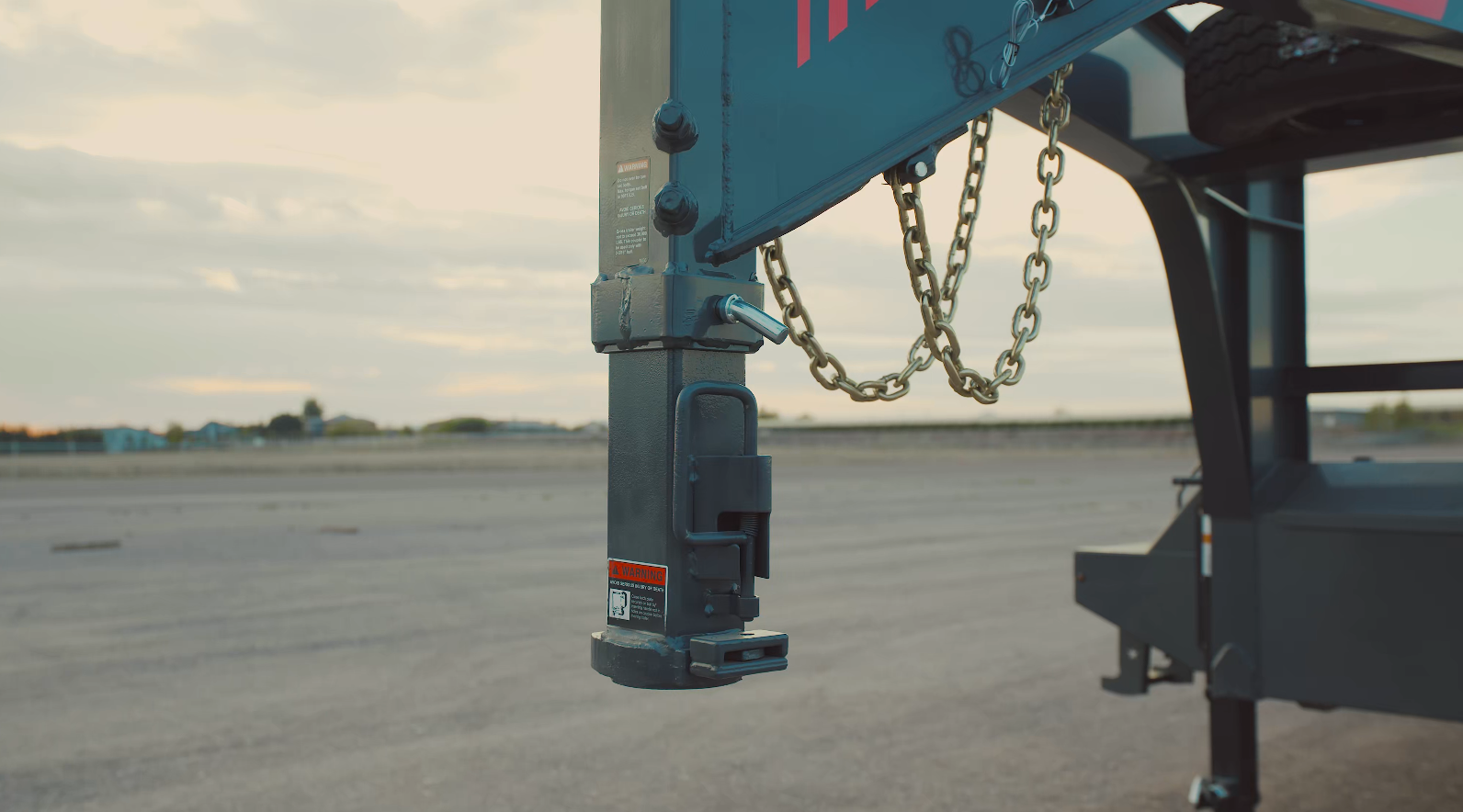

Coupler 2 5/16″ Square 25,000 lb
Crossmembers 3″ I-beam on 16″ Centers

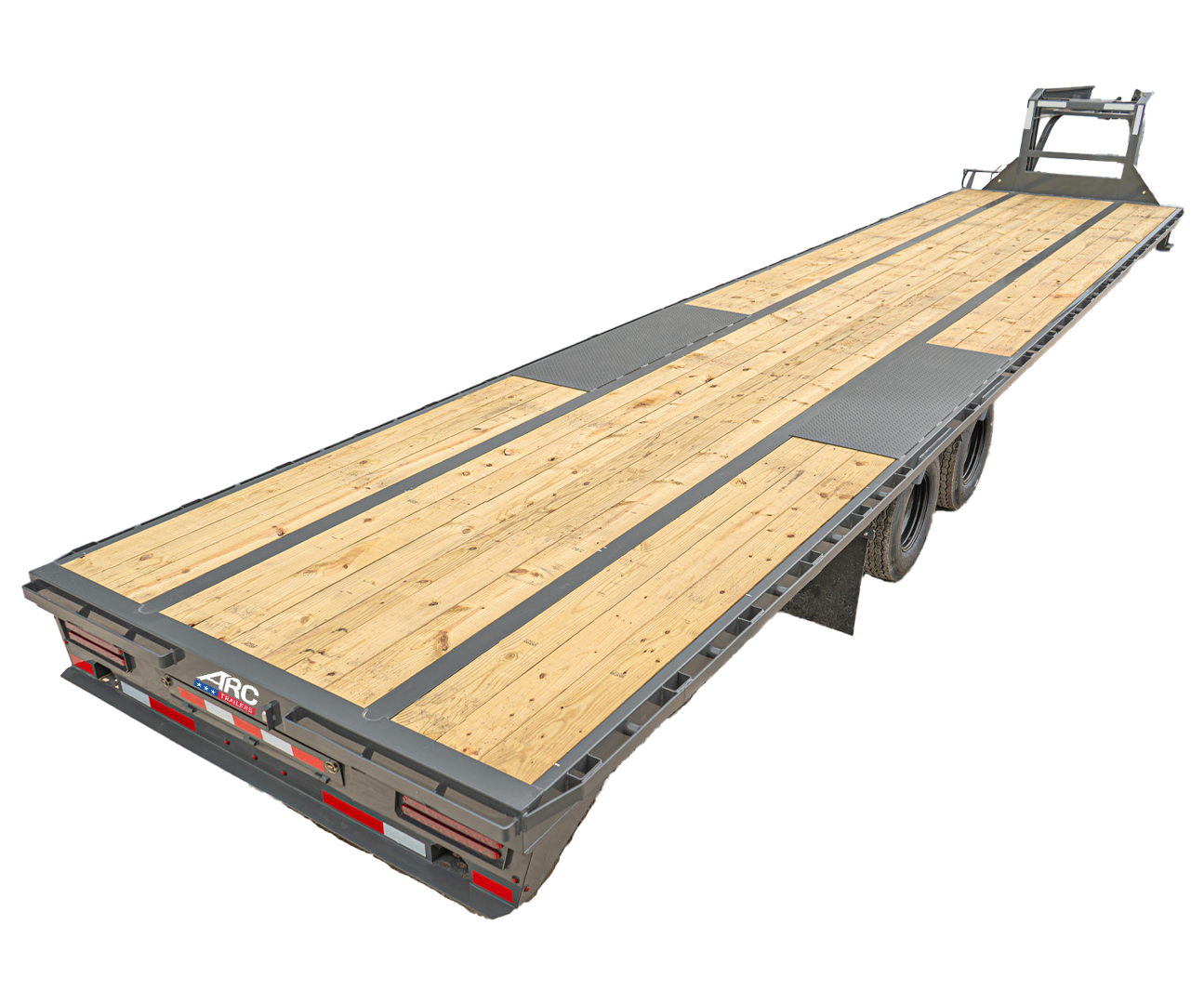

Deck 2″ Treated Pine
Deck Height 34 1/8″
Deck Type Deckover
Finish PPG Premium Powder Coat
Frame Type I-Beam
Frame Size 12″ x 19 lb
Frame (Outer) 2″ x 6″ x 1/8″ Rectangular Tube
Riser Height 45 1/8″

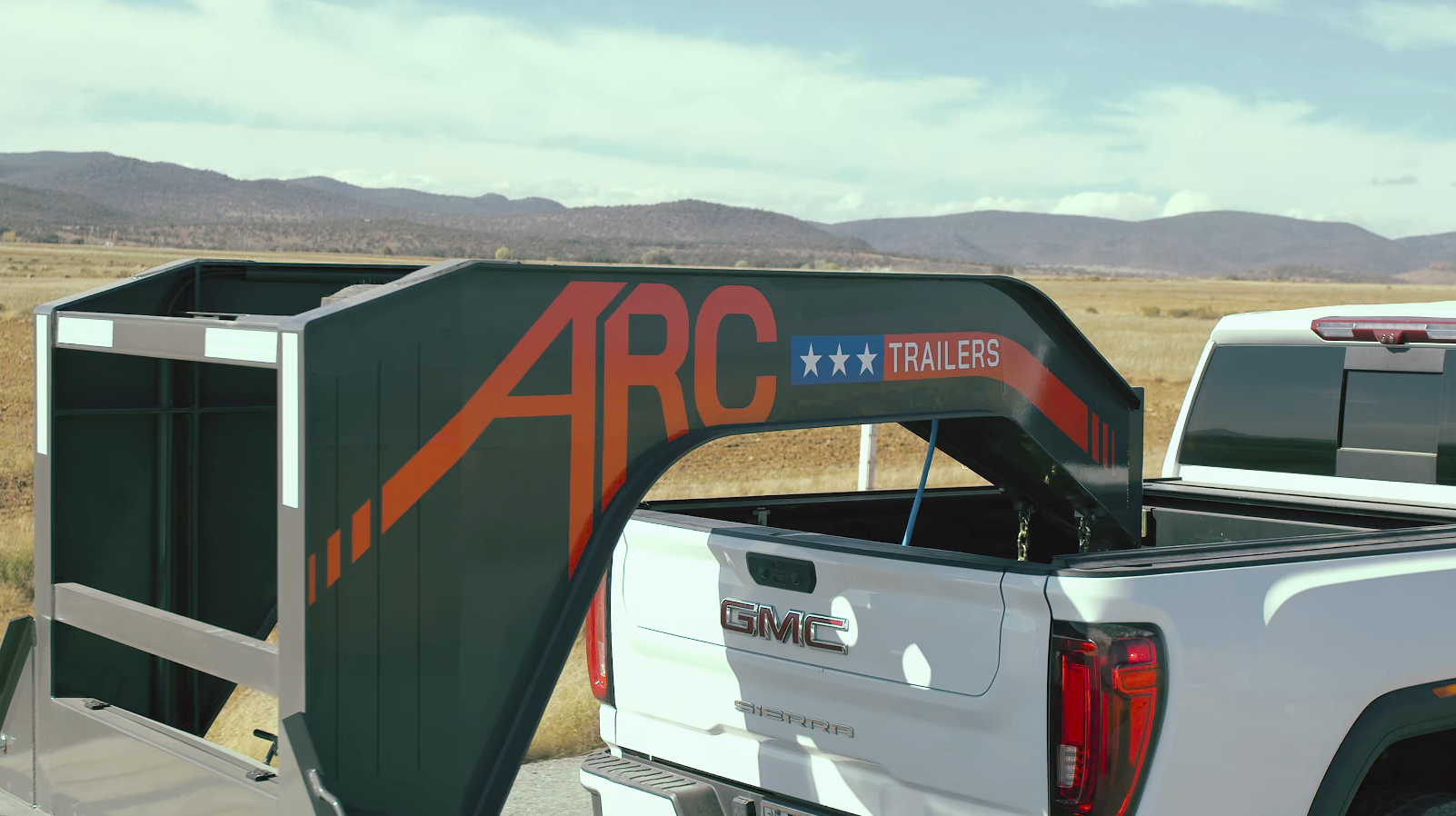

Tongue ARC Engineered Neck
Tongue Length 90 1/8″
Axles & Suspension
Axle Electric Brake 10,000 lb (2)

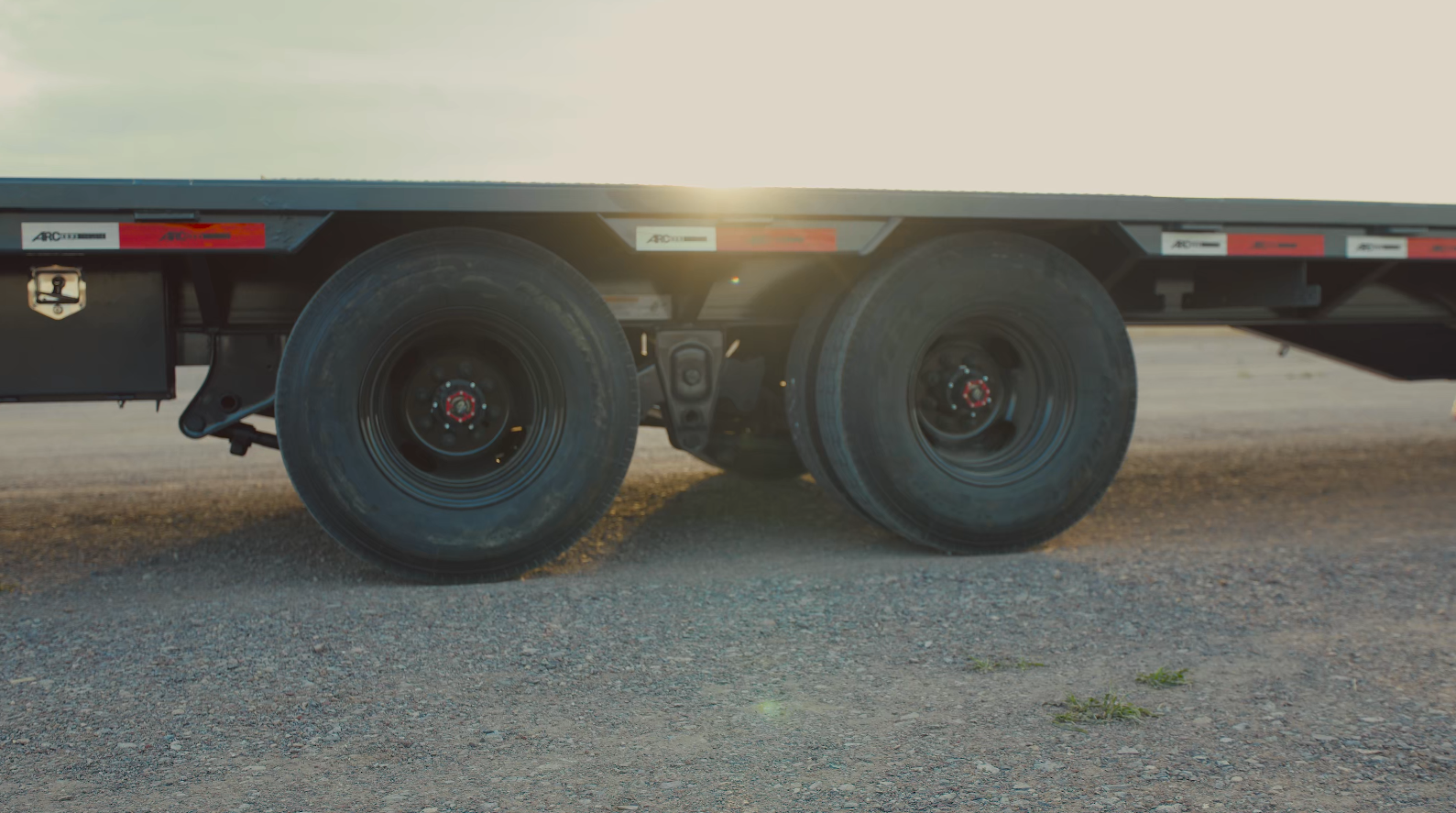

Axle (Tires) Duals
Axle Lubrication Oil Bath
Axle Warranty 5 Year
Brake Type Electric Drum
Suspension Heavy Duty Adjustable Spring
Tire Size 235/80R16
Tire Type Radial 10-Ply
Wheel(s) 16″ Black Mod
Electronics
Lighting All LED, Light Bar (Riser/Neck)
Power Accessories 7-Way All Weather Wiring Harness
Features
Cargo Control Rubrail & Stake Pockets

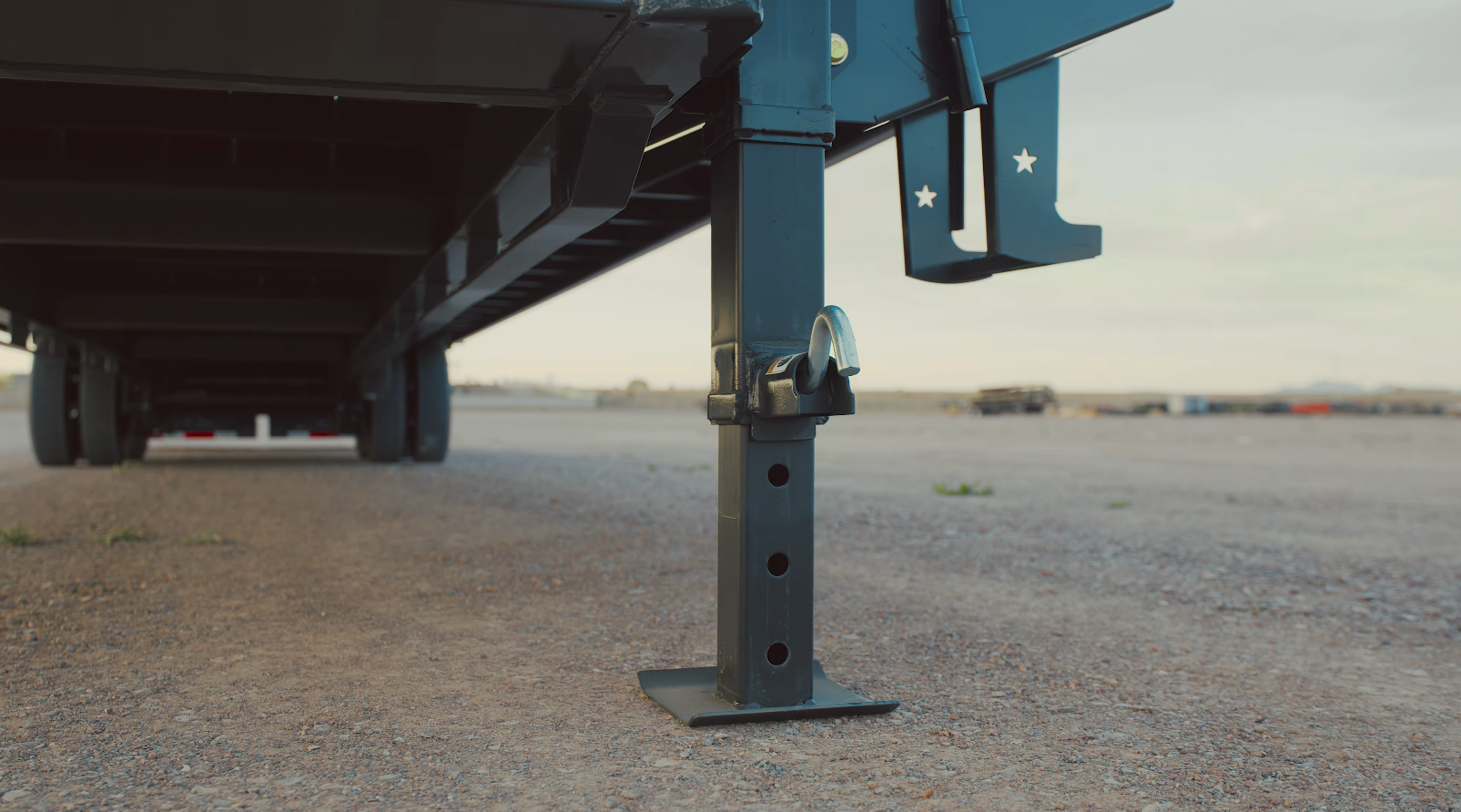

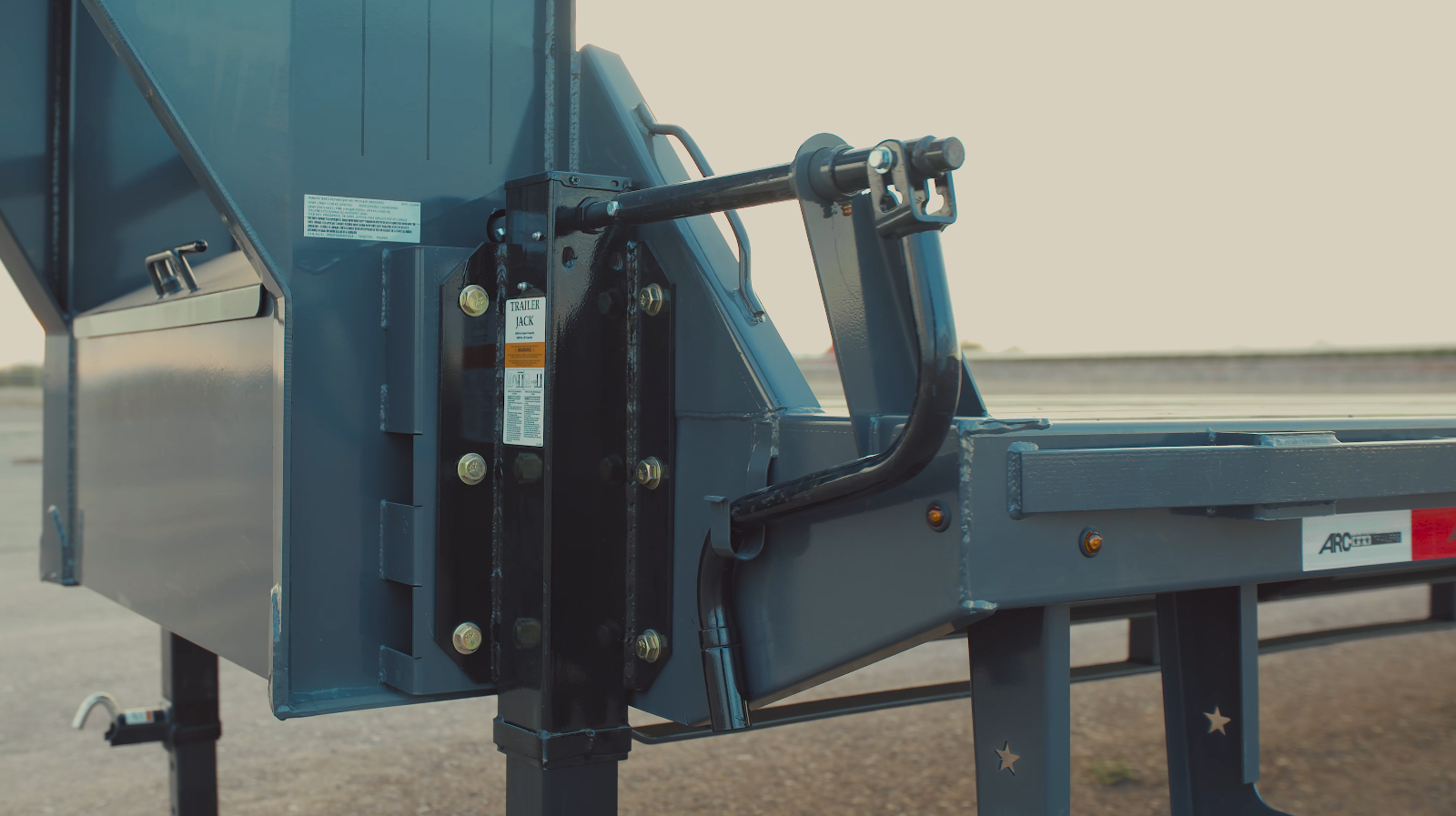

Jack (Front) Drop Leg Jack 10,000 lb (2)
Ramp(s) 8′ Steel Slide-In
Safety Features Coupler Chains, DOT Reflective, Conspicuity Tape, Electric Breakaway Kit w/ Charger
Spare Mount Only
Special Features Twist Control, Dual Side Steps, Flex Bridge Standard on Units 30′ and Over

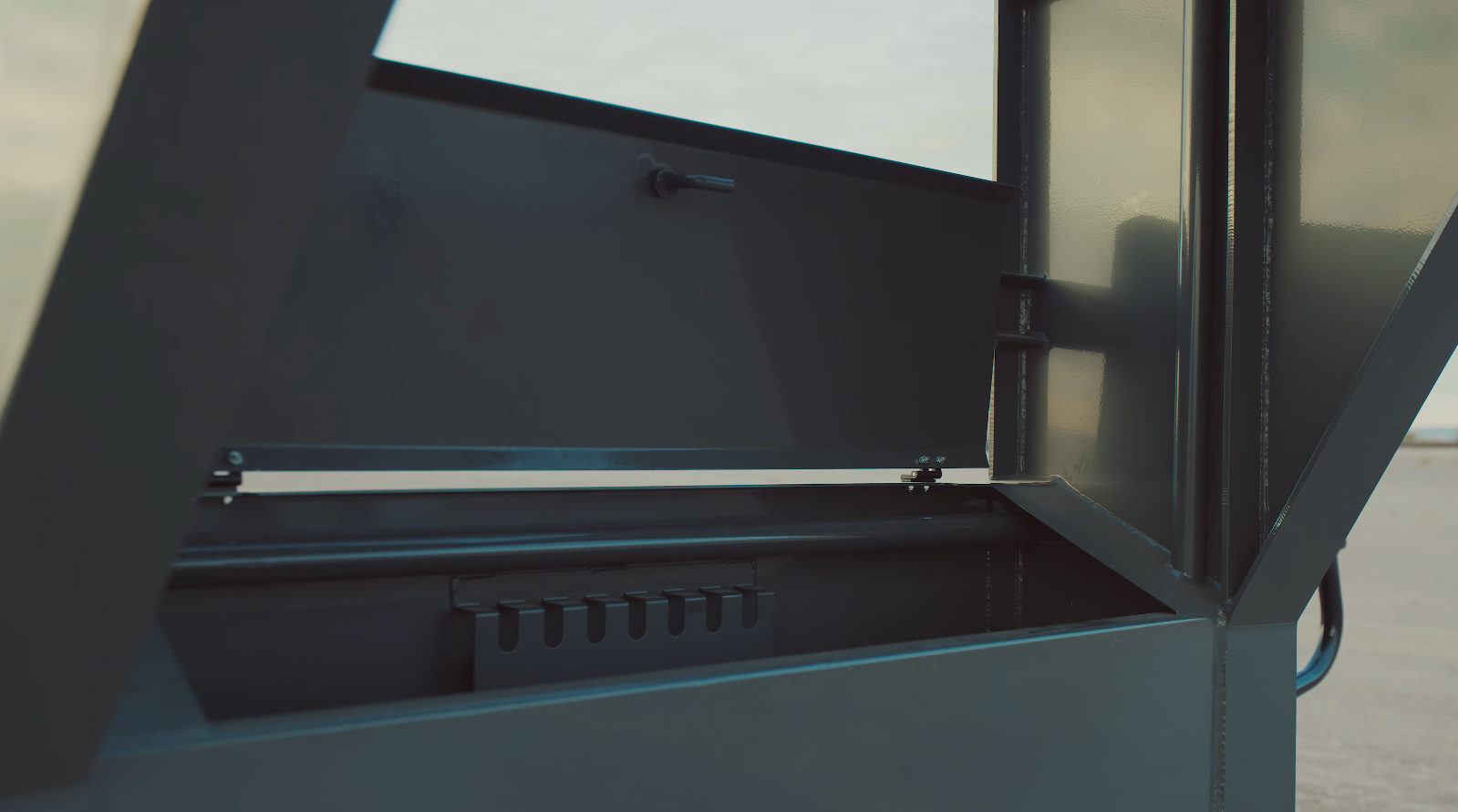

Storage Front Toolbox w/ Chain Holder
Tail Straight
