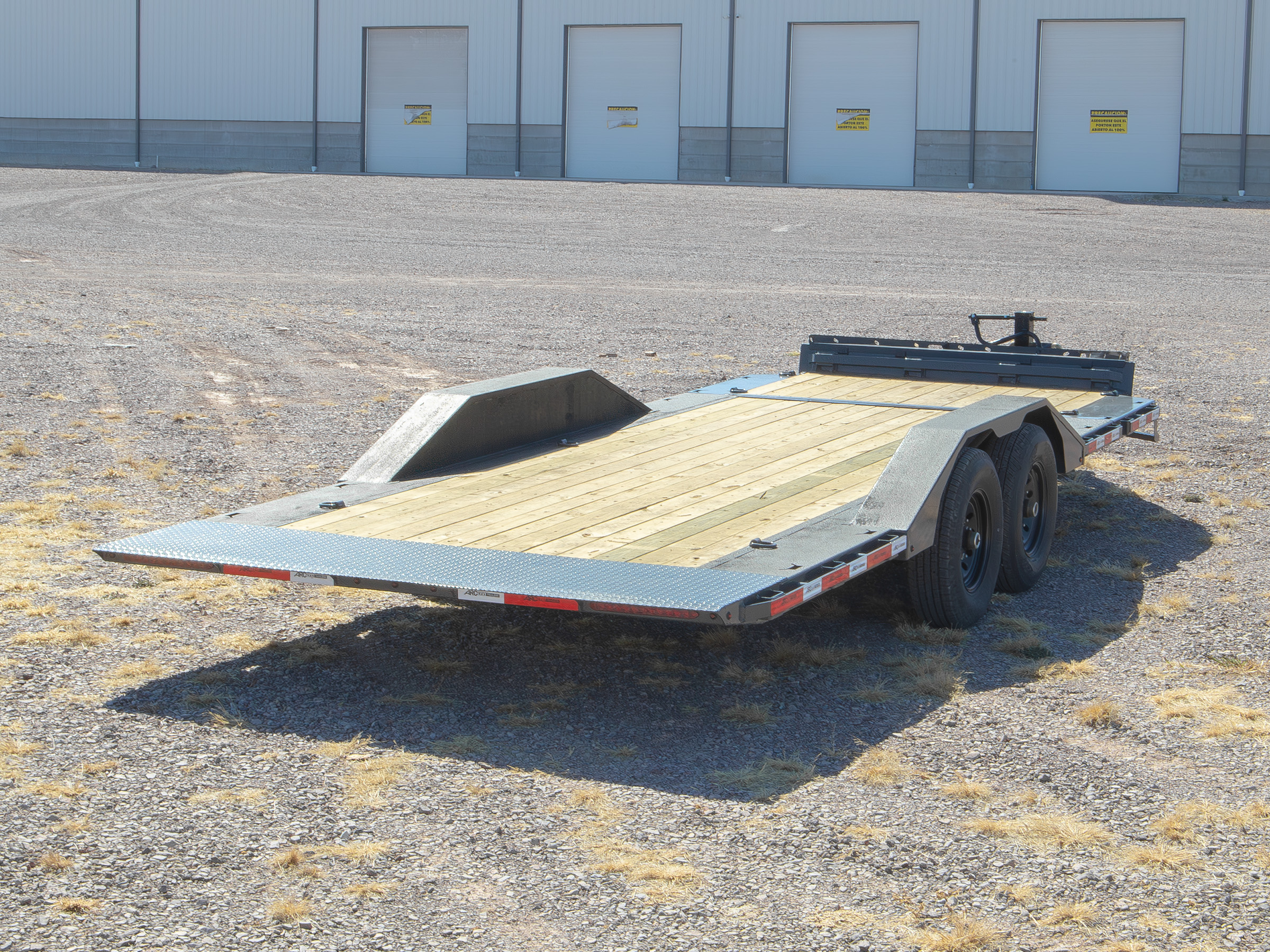

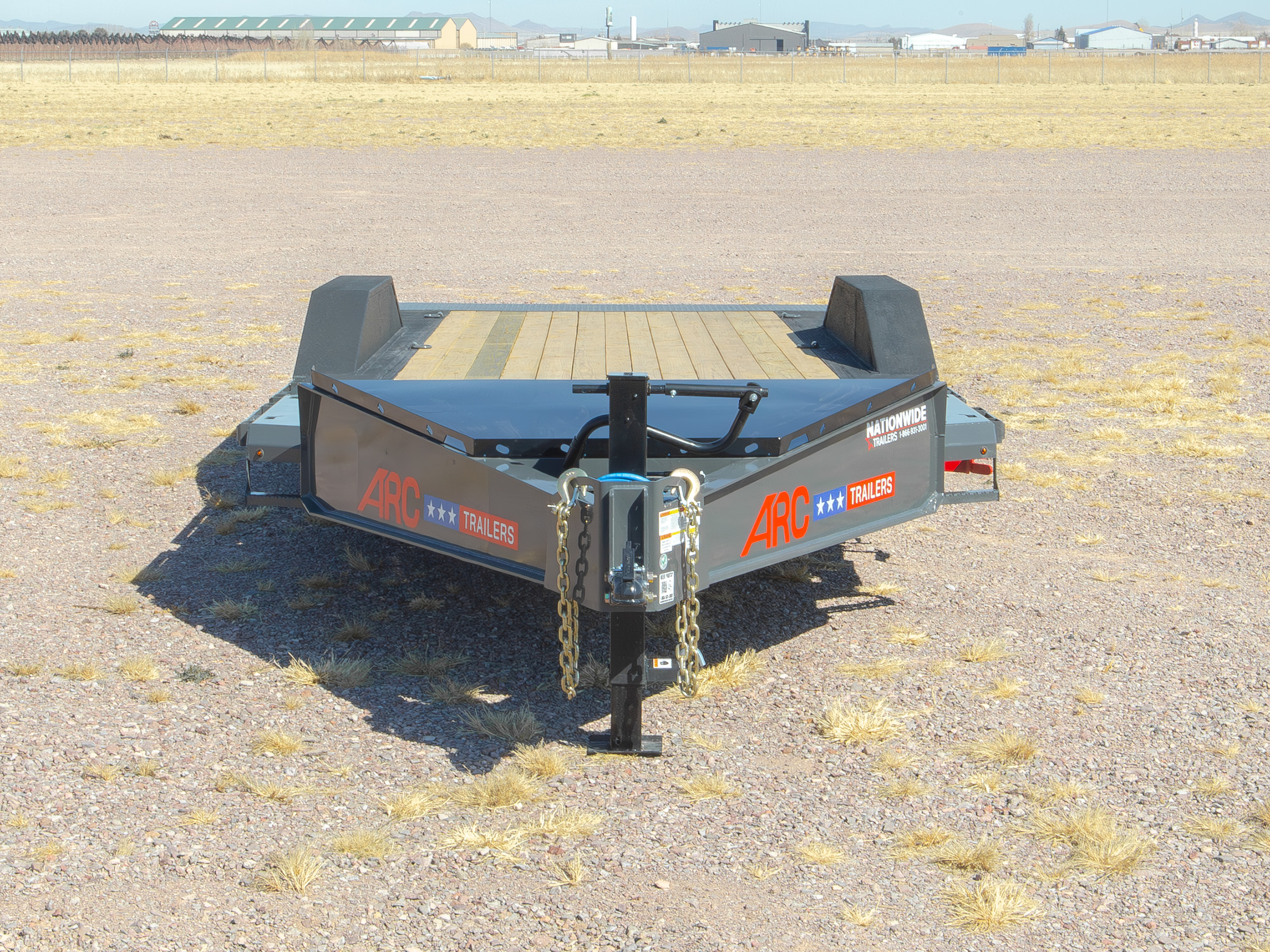

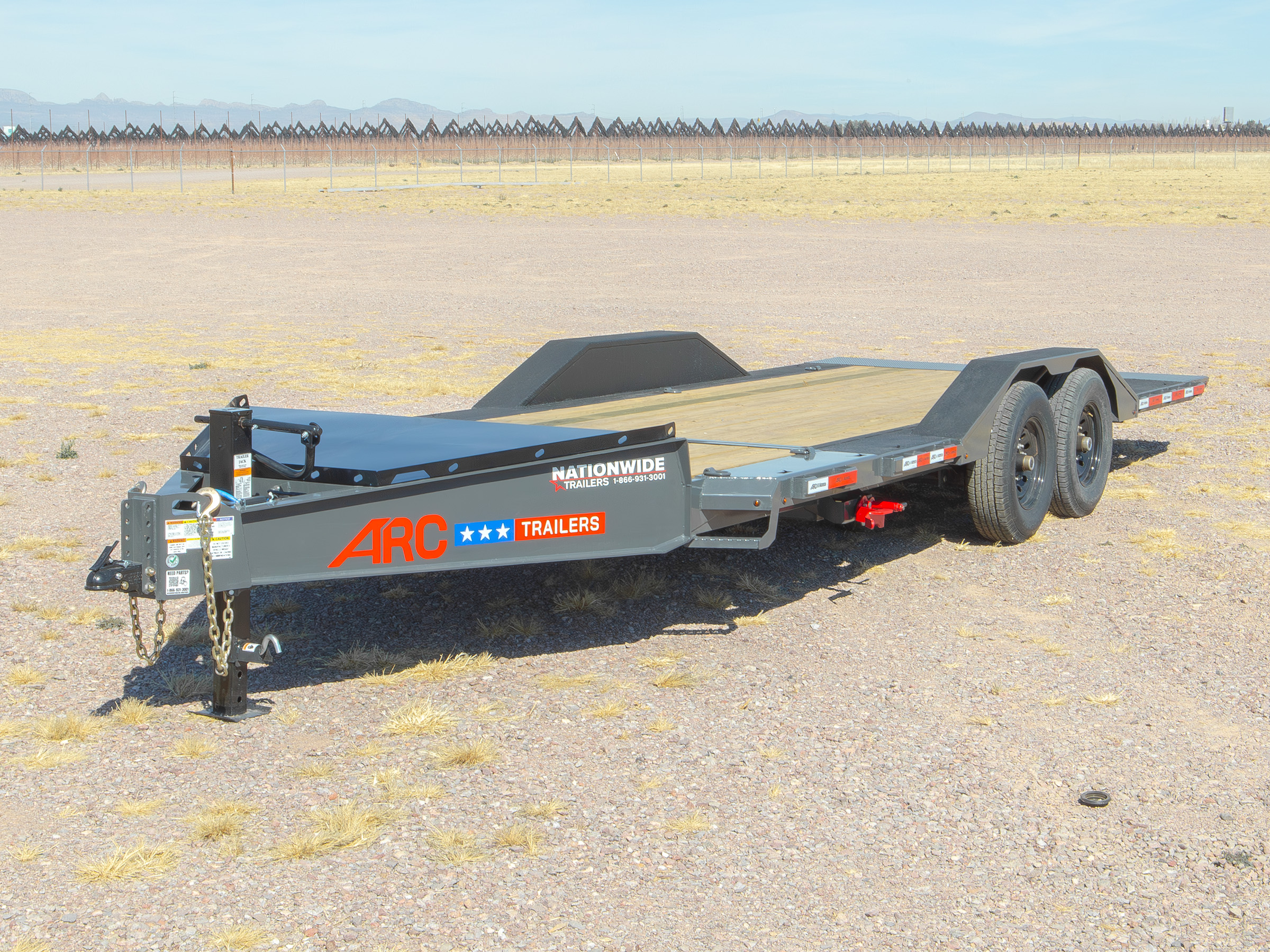

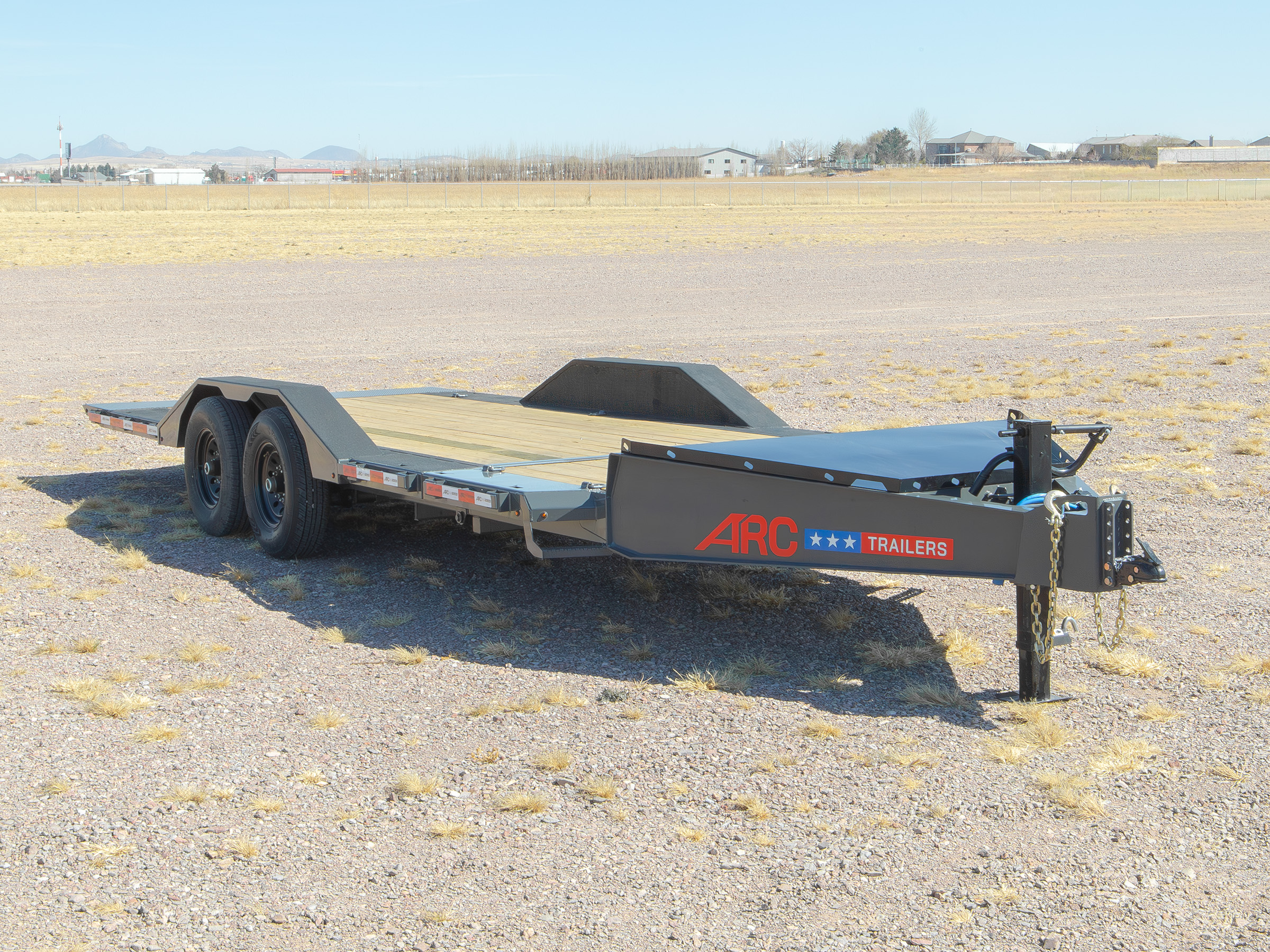

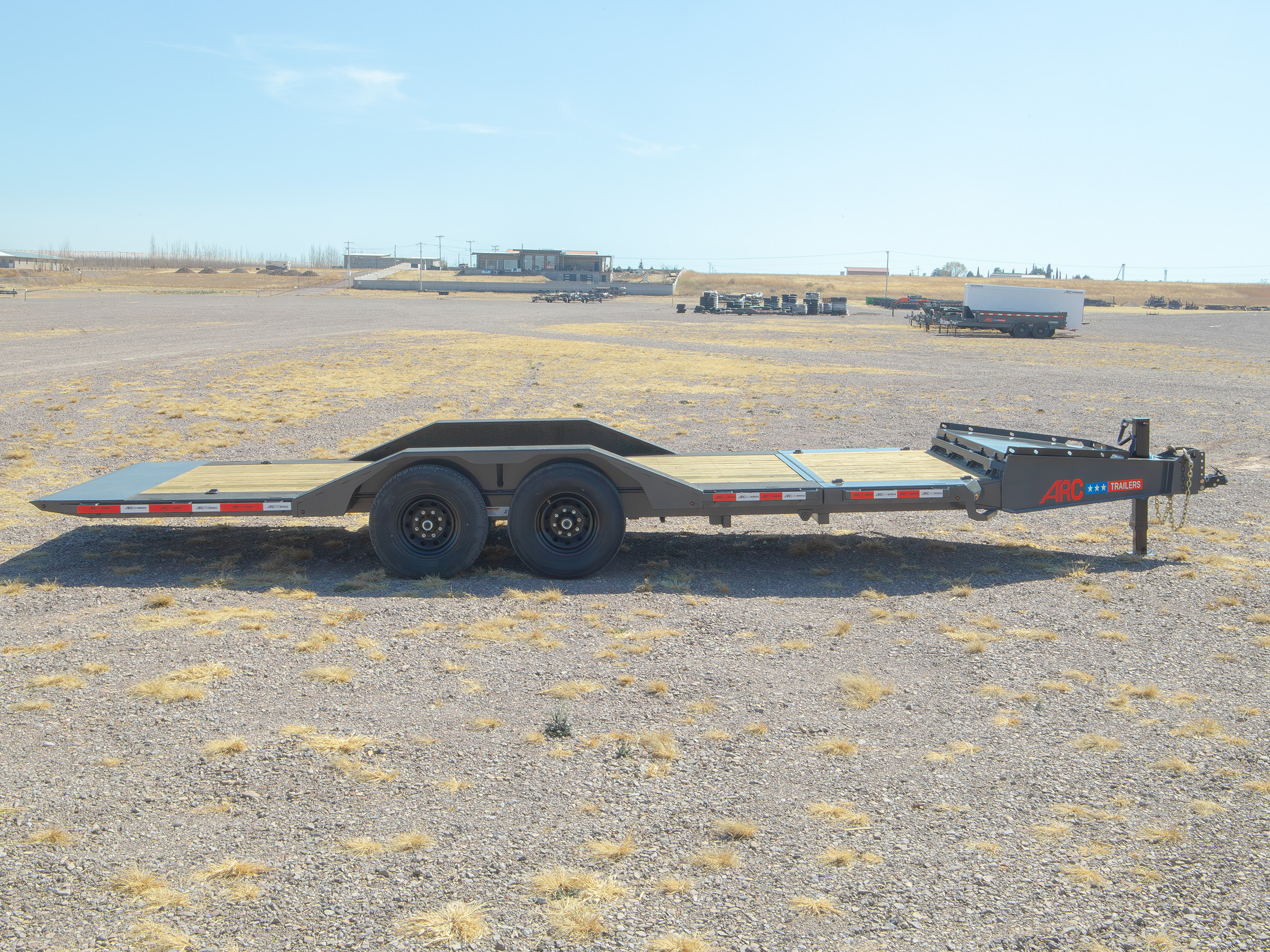

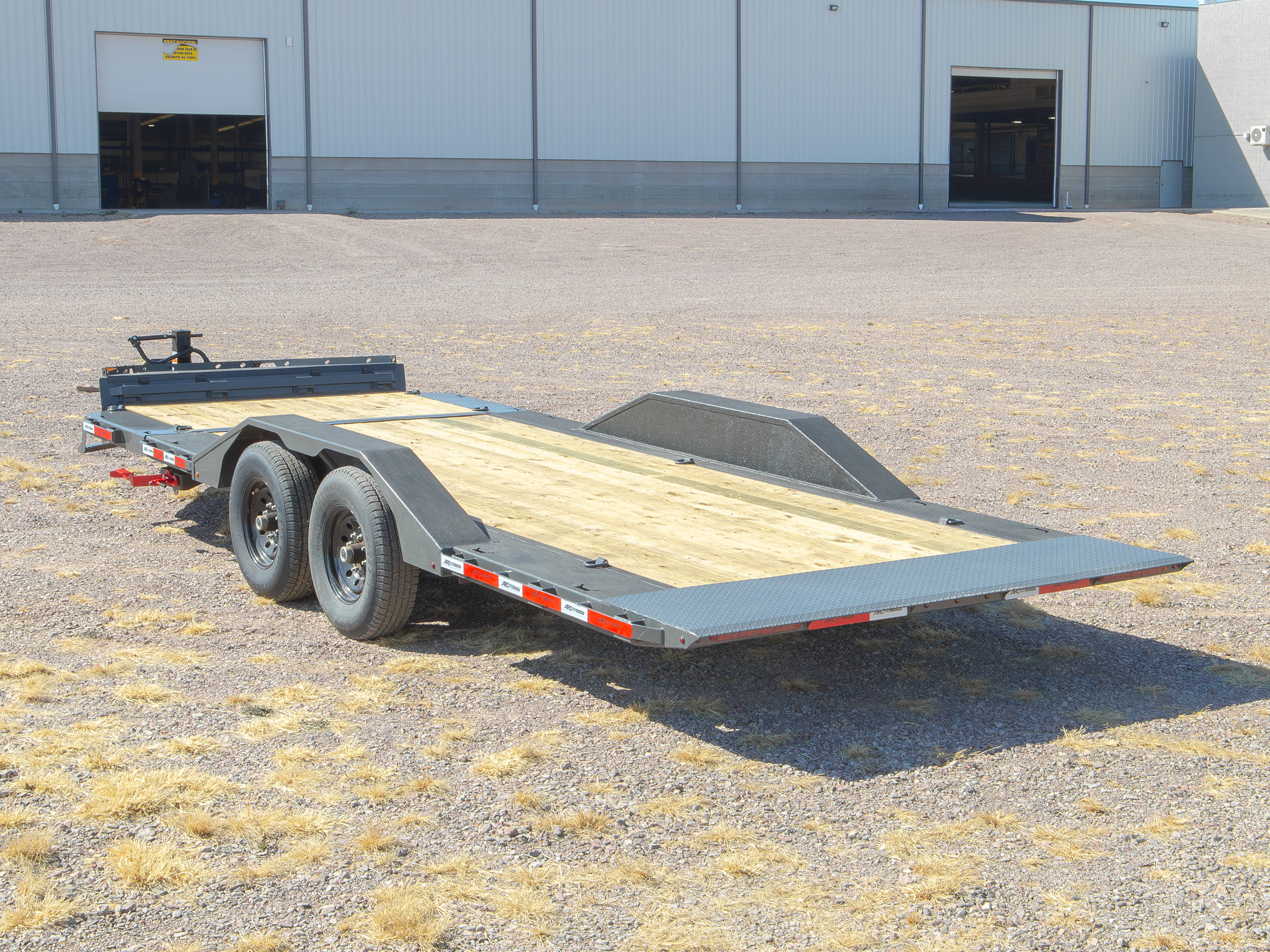

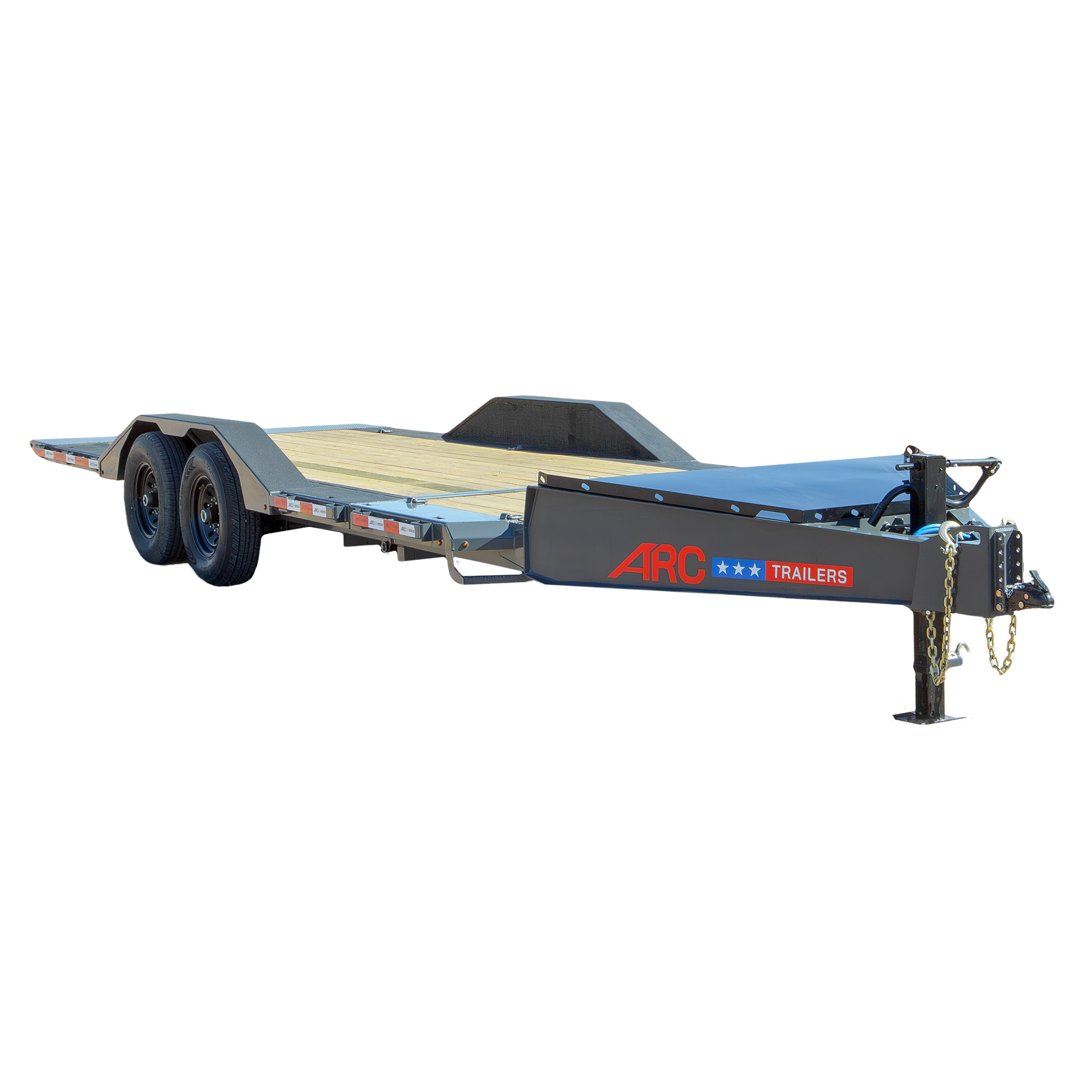

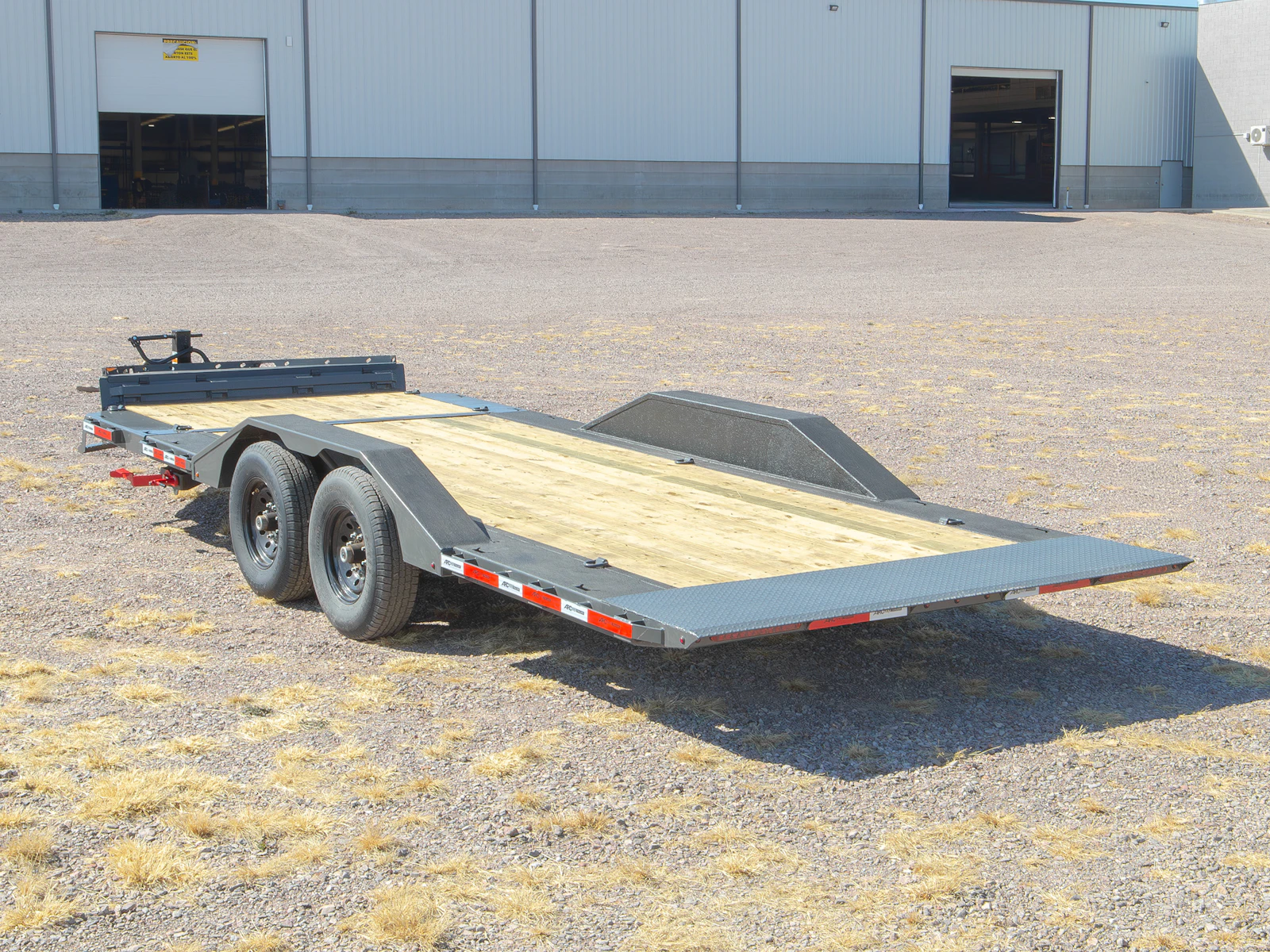

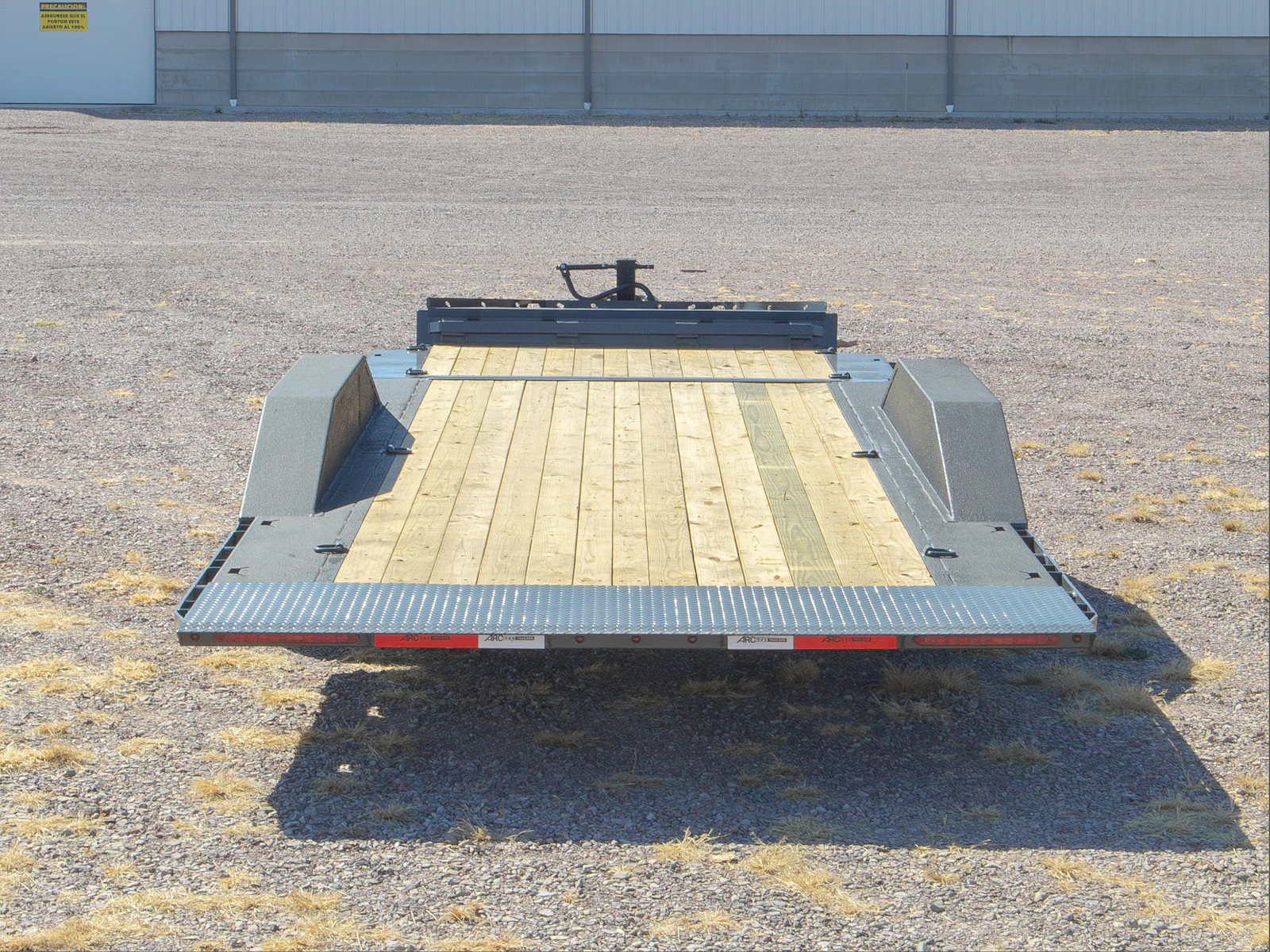

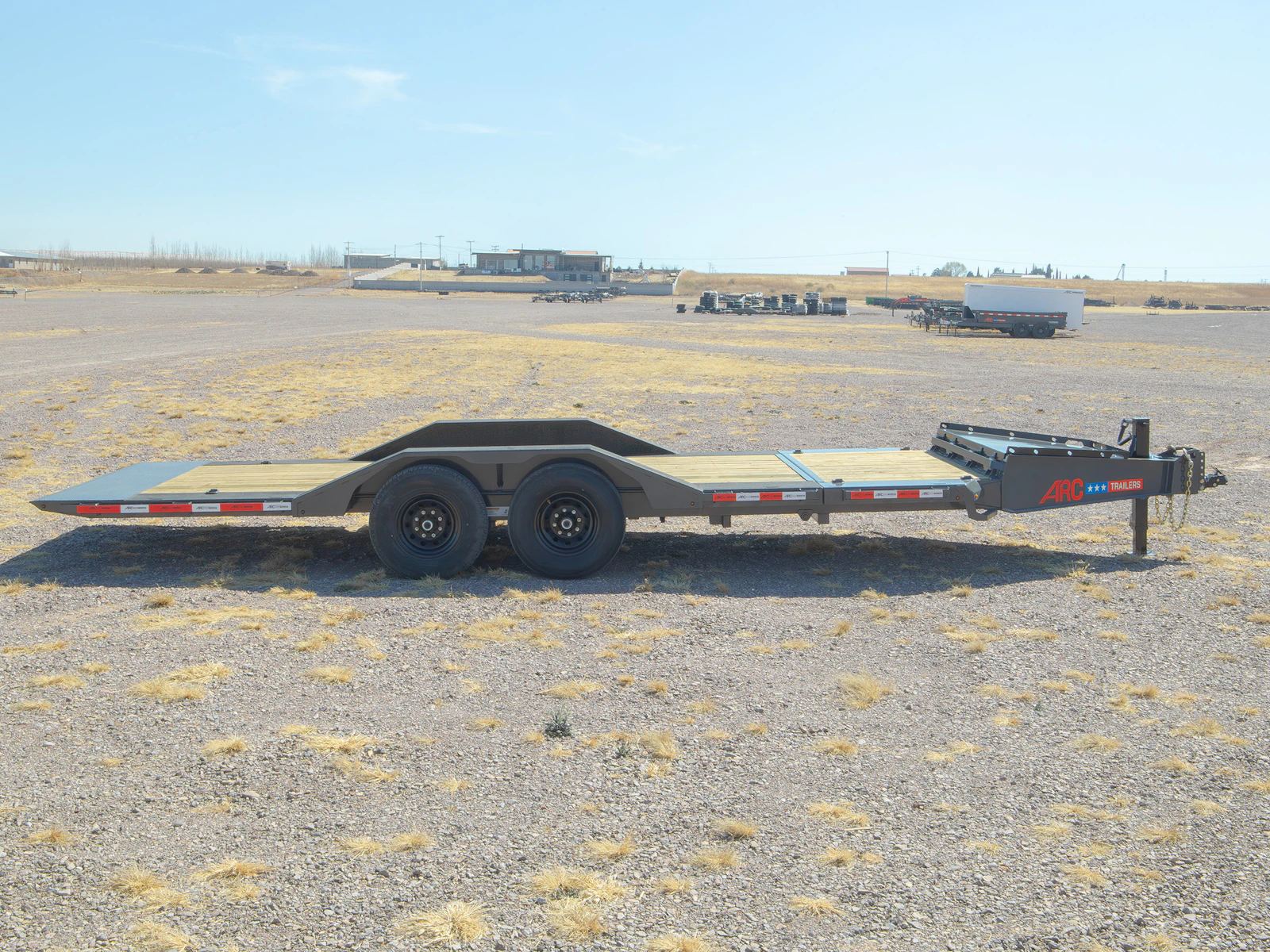

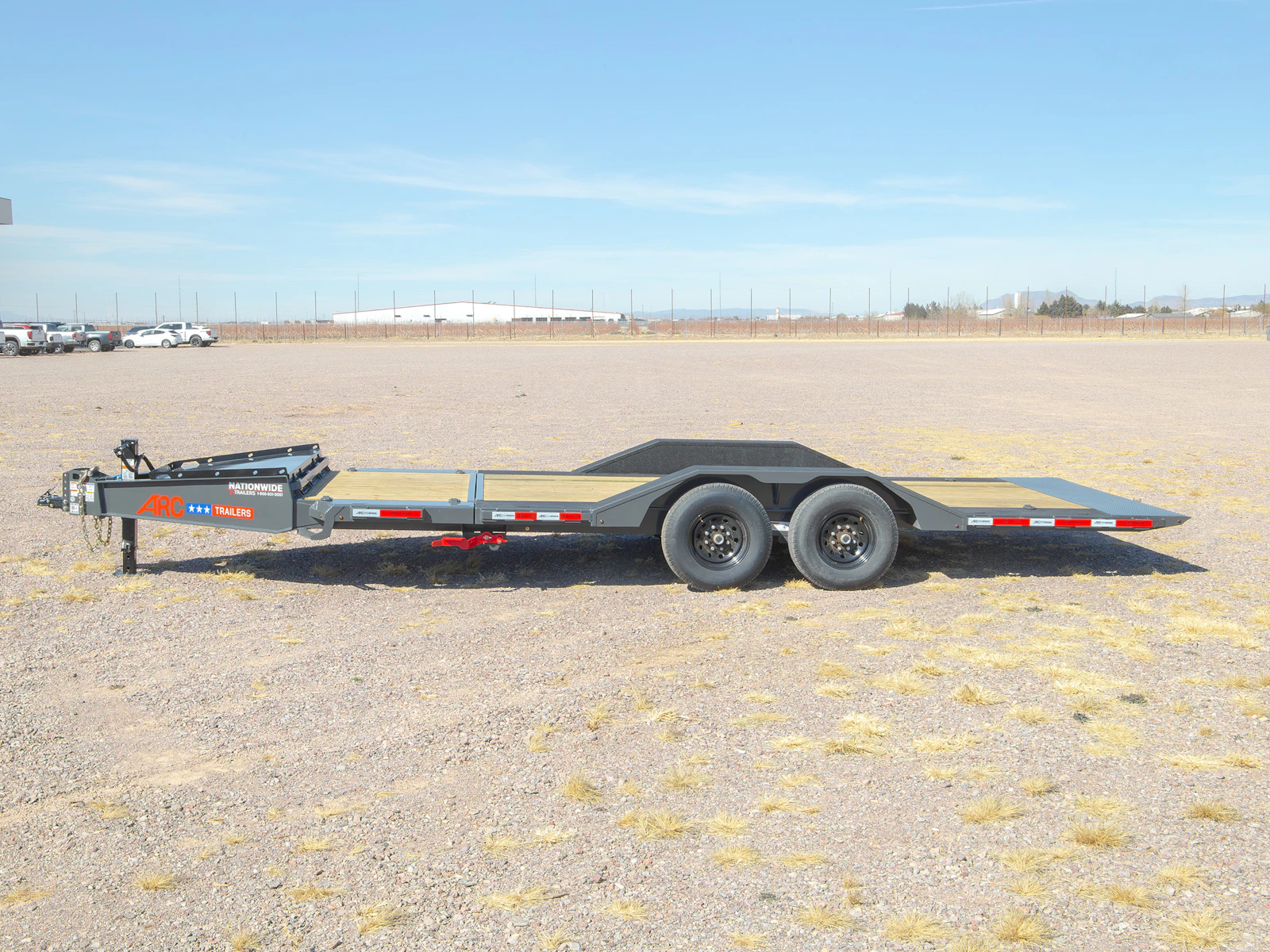

A-BTW
$10,499.00
Build Yours
Standard Specs
Overview
| Standard Code | A-BTW |
| Width | 102″ |
| GVWR | 14,000 lb |
| GAWR | 7,000 lb x2 |
Body
| Coupler | 2 5/16″ 15,000 lb Adjustable Ball Coupler |
| Crossmembers | 3″ Channel on 16″ Centers |
| Deck | 2″ Treated Pine |
| Deck Height | 24″ |
| Finish | PPG Premium Powder Coat |
| Frame Size | 6″ C-Channel |
| Frame Type | C-Channel |
| Tongue | Engineered Tongue |
Axles & Suspension
| Axle | 7,000 lb Electric Brake (2) |
| Axle (Tires) | Singles |
| Axle Lubrication | Grease |
| Brake Type | Electric Drum |
| Suspension | Torsion |
| Tire Size | 235/80R16 |
| Tire Type | Radial 10-ply |
| Wheel(s) | 16″ Black Mod |
Electronics
| Lighting | All LED |
| Power Accessories | 7-Way All Weather Wiring Harness |
| Hydraulics | 3″x 16″ Cylinder, Gravity Up/Gravity Down |
Features
| Cargo Control | Rubrail & Stake Pockets |
| Jack (Front) | Drop Leg Jack 10,000 lb (1) |
| Ramp(s) | 16′ x 102″ Tilt Bed w/ Knife Edge |
| Safety Features | Coupler Chains, DOT Reflective, Conspicuity Tape, Electric Breakaway Kit w/ Charger |
| Spare | Available as upgrade |
| Storage | Engineered Front Spacious Toolbox |
| Tail | Knife Edge |
