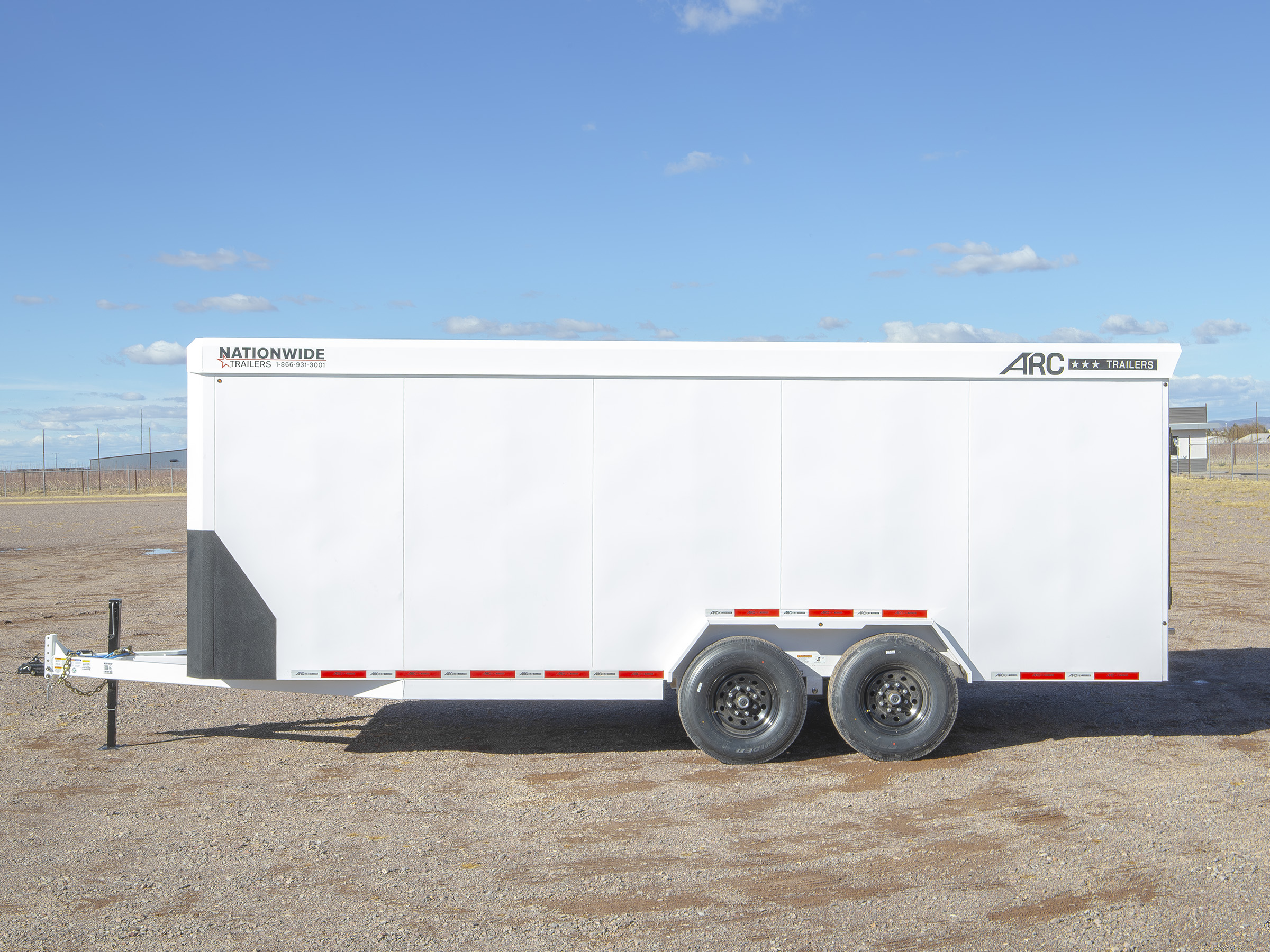

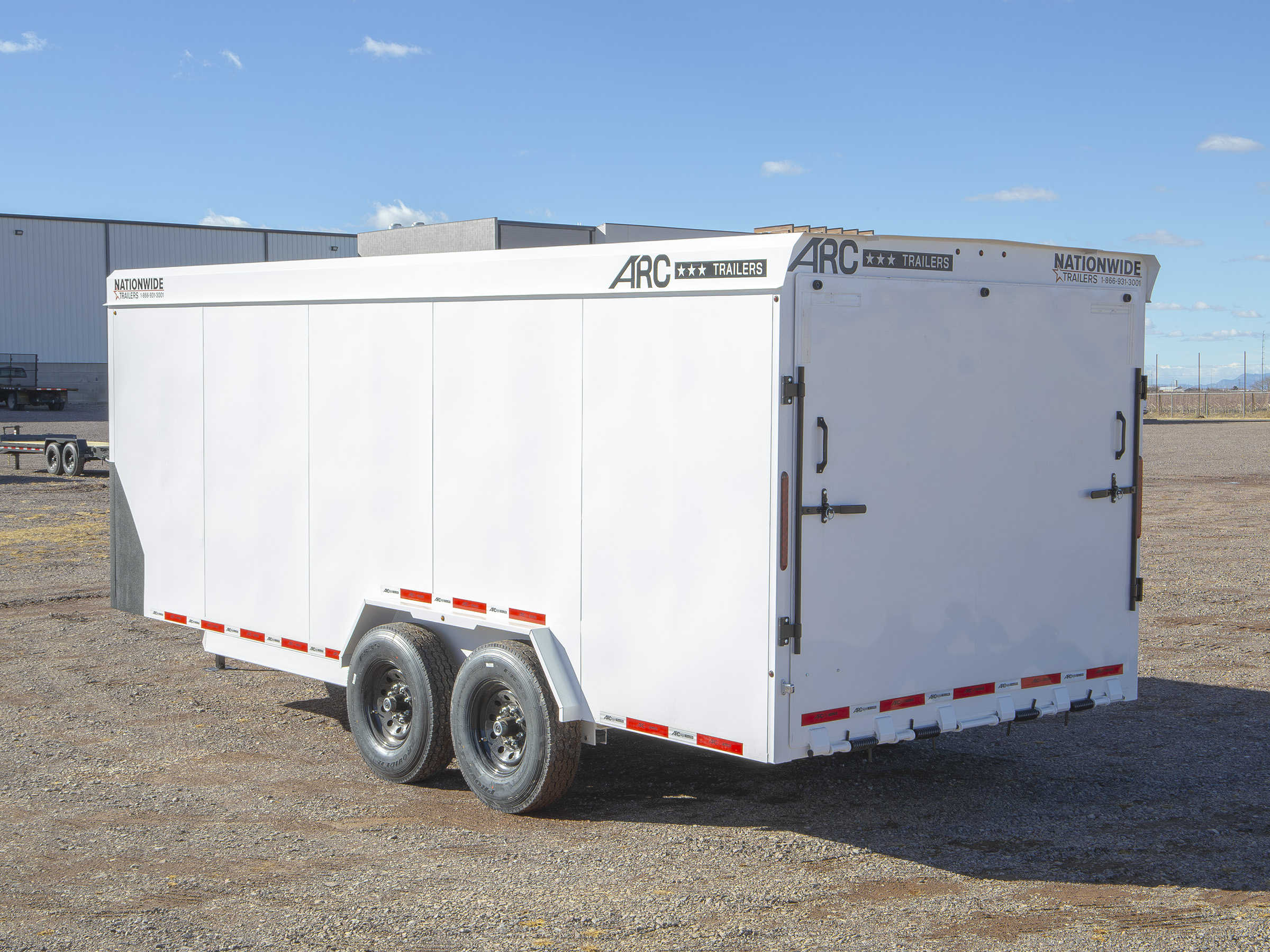

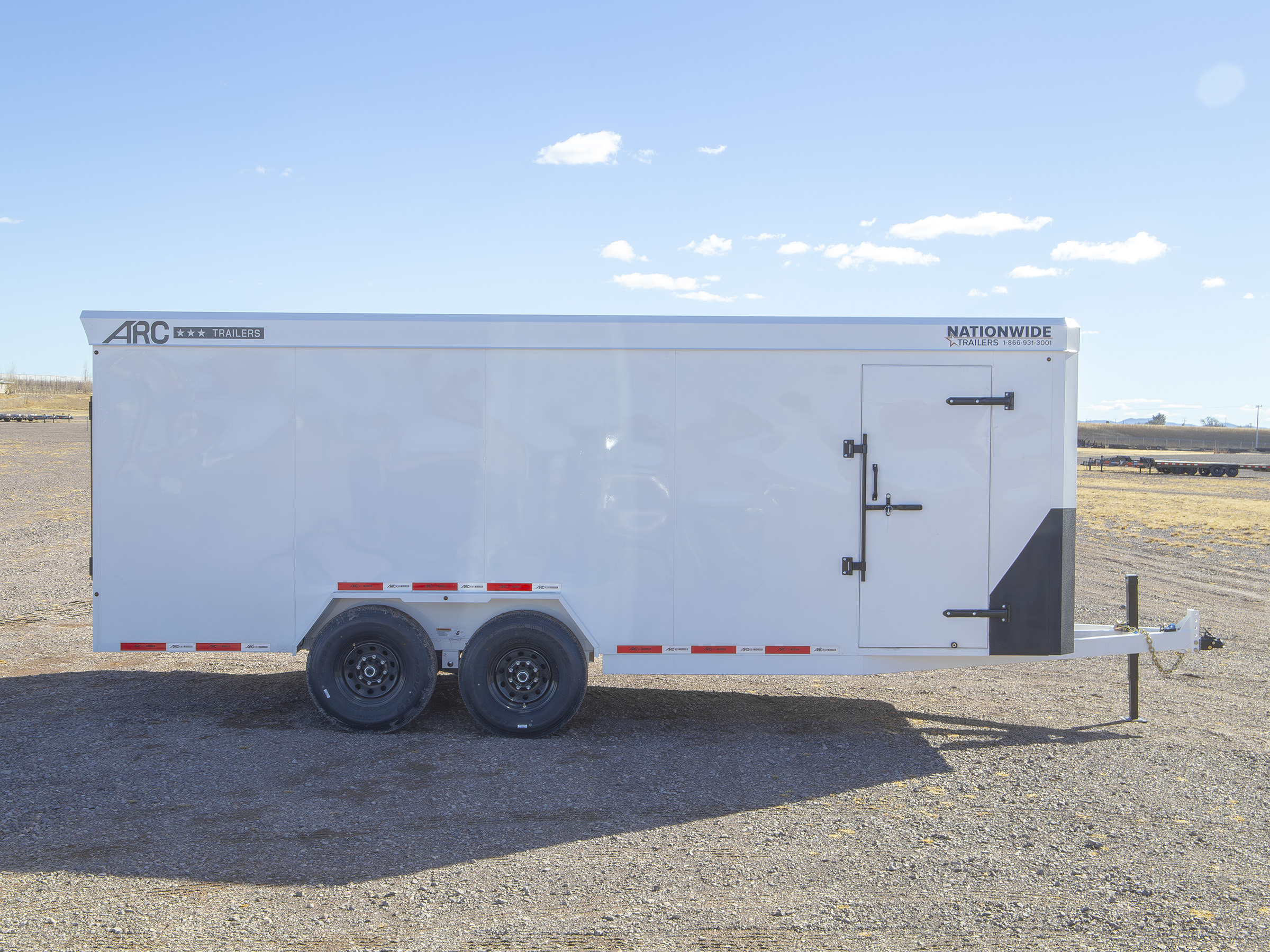

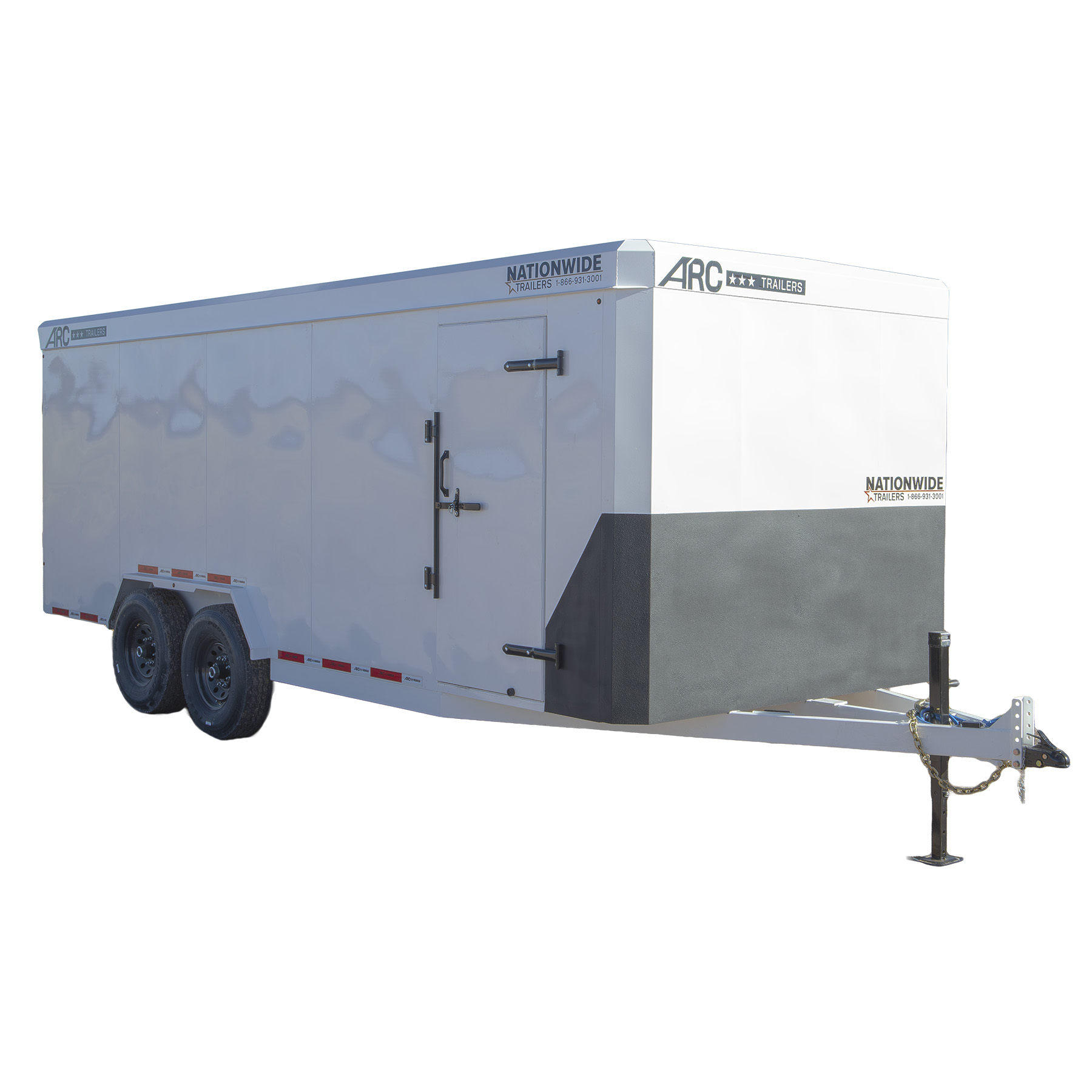

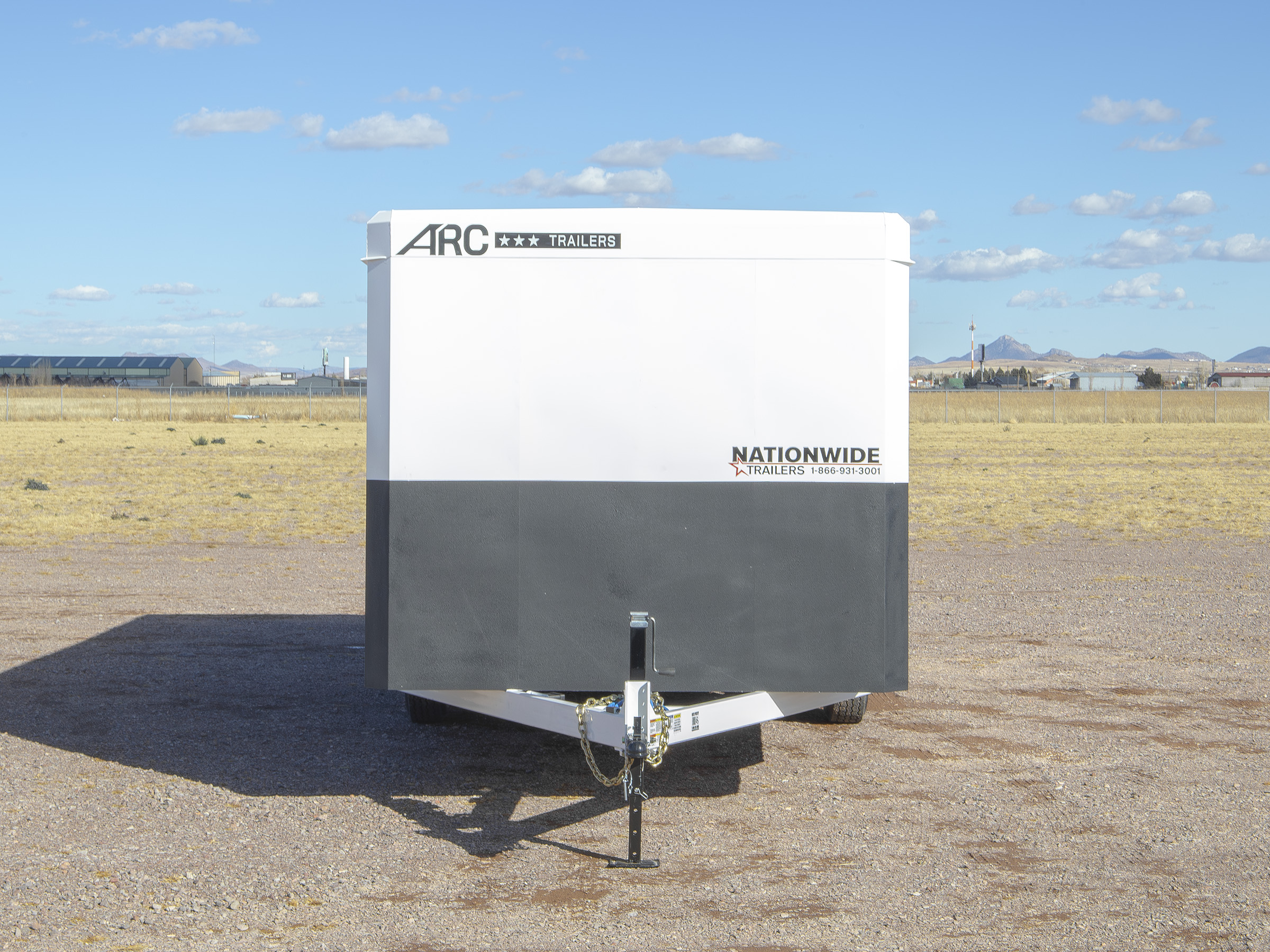

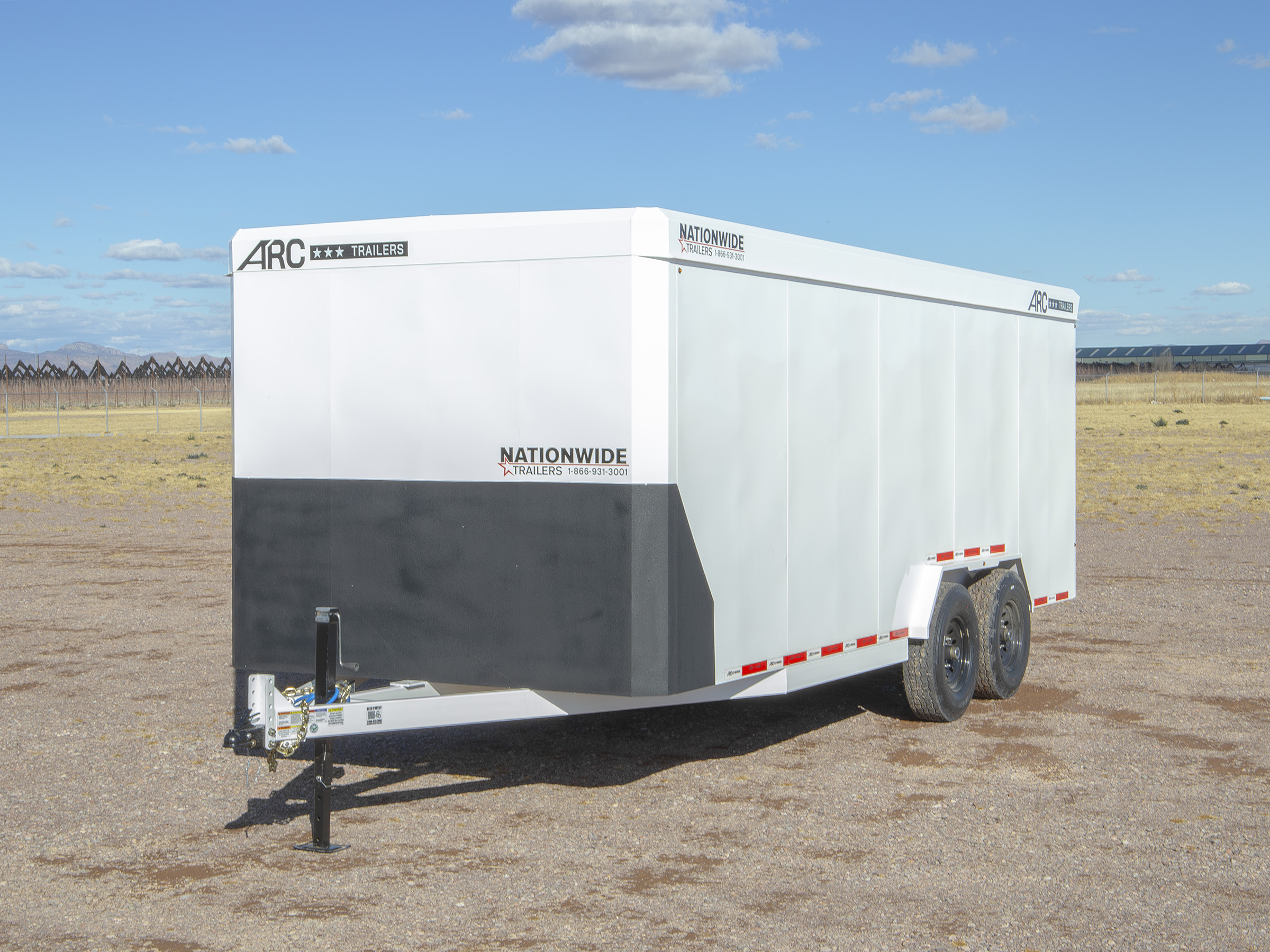

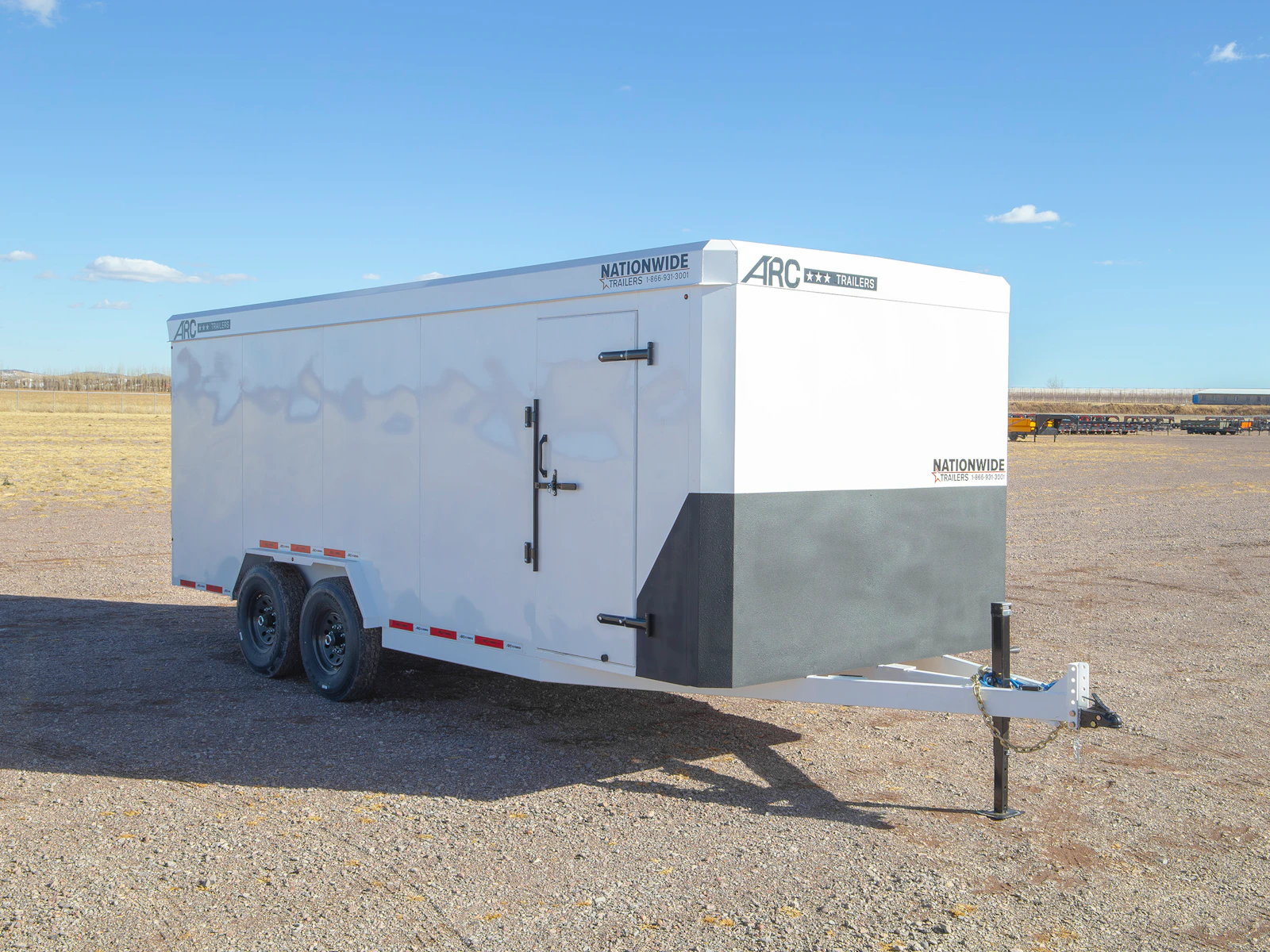

A-BCS
$11,599.00
Build Yours
Standard Specs
Overview
| Standard Code | A-BCS |
| Widths | 78″ | 94″ | 102″ |
| Interior Height | 6’6″ (standard) | 7′ (+upgrade) | 8′ (+upgrade) |
| GVWR | 14,000 lb |
| GAWR | 7,000 lb x2 |
Body
| Coupler | 2 5/16″ 15,000 lb Adjustable Ball Coupler |
| Crossmembers | 2″ x 2″ Tube 16″ On Center |
| Deck | 3/4″ Plywood |
| Deck Height | 23.5″ |
| Finish | Premium Powder Coat |
| Frame Size | 3″ x 2″ Tube |
| Frame Type | Tube |
| Tongue | 3″ x 2″ Tube |
| Roof | 14ga Formed Steel |
| Walls | 16ga Formed Steel |
Axles & Suspension
| Axle | 7,000 lb Electric Brake (2) |
| Axle (Tires) | Singles |
| Axle Lubrication | Grease |
| Brake Type | Electric Drum |
| Suspension | Spring (standard) | Torsion (+upgrade) |
| Tire Size | 235/80R16 |
| Tire Type | Radial 10-ply |
| Wheel(s) | 16″ Black Mod |
Electronics
| Lighting | All LED |
| Power Accessories | 7-Way All Weather Wiring Harness |
Features
| Jack (Front) | Drop Leg Jack 7,000 lb (1) |

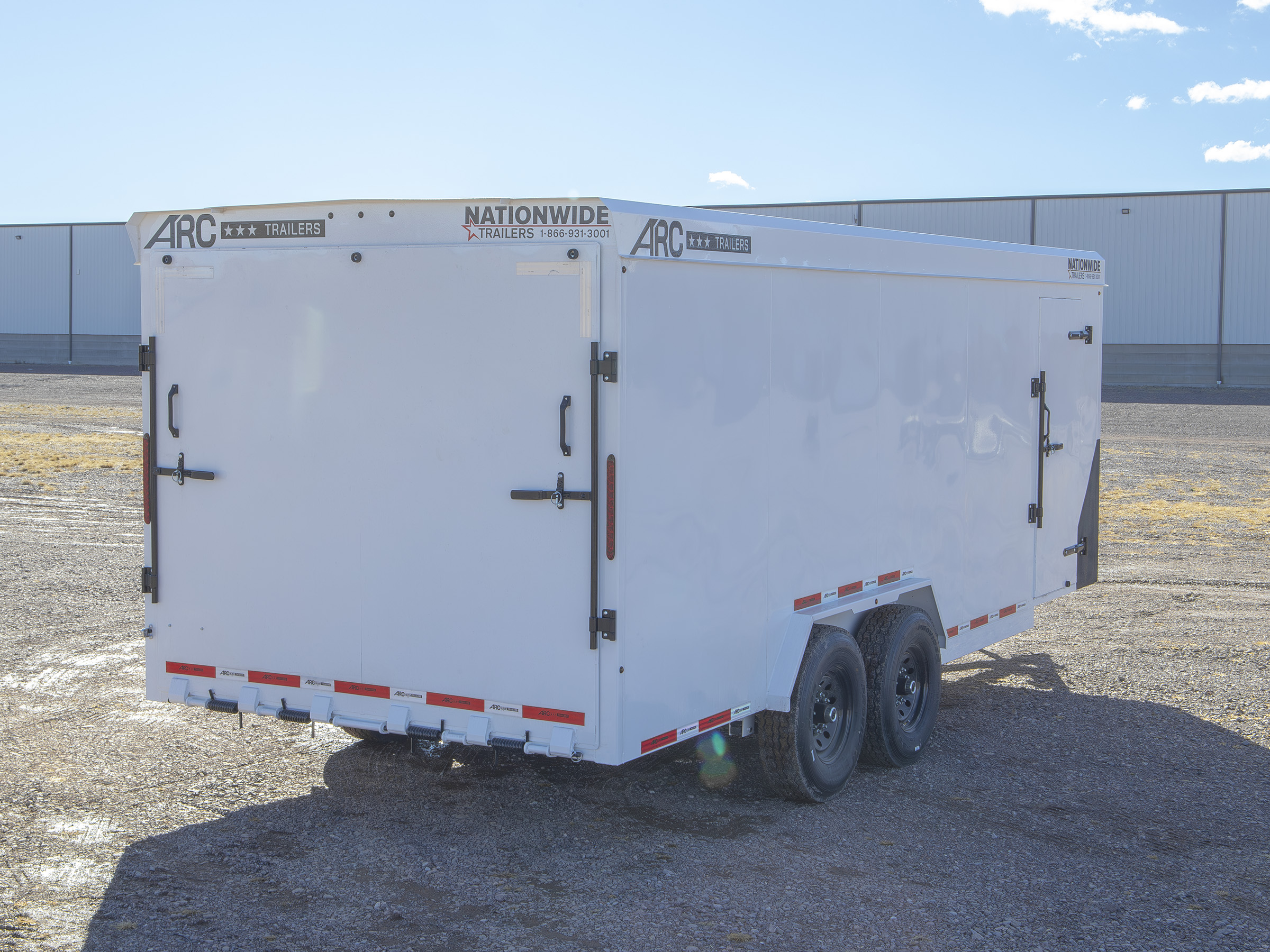

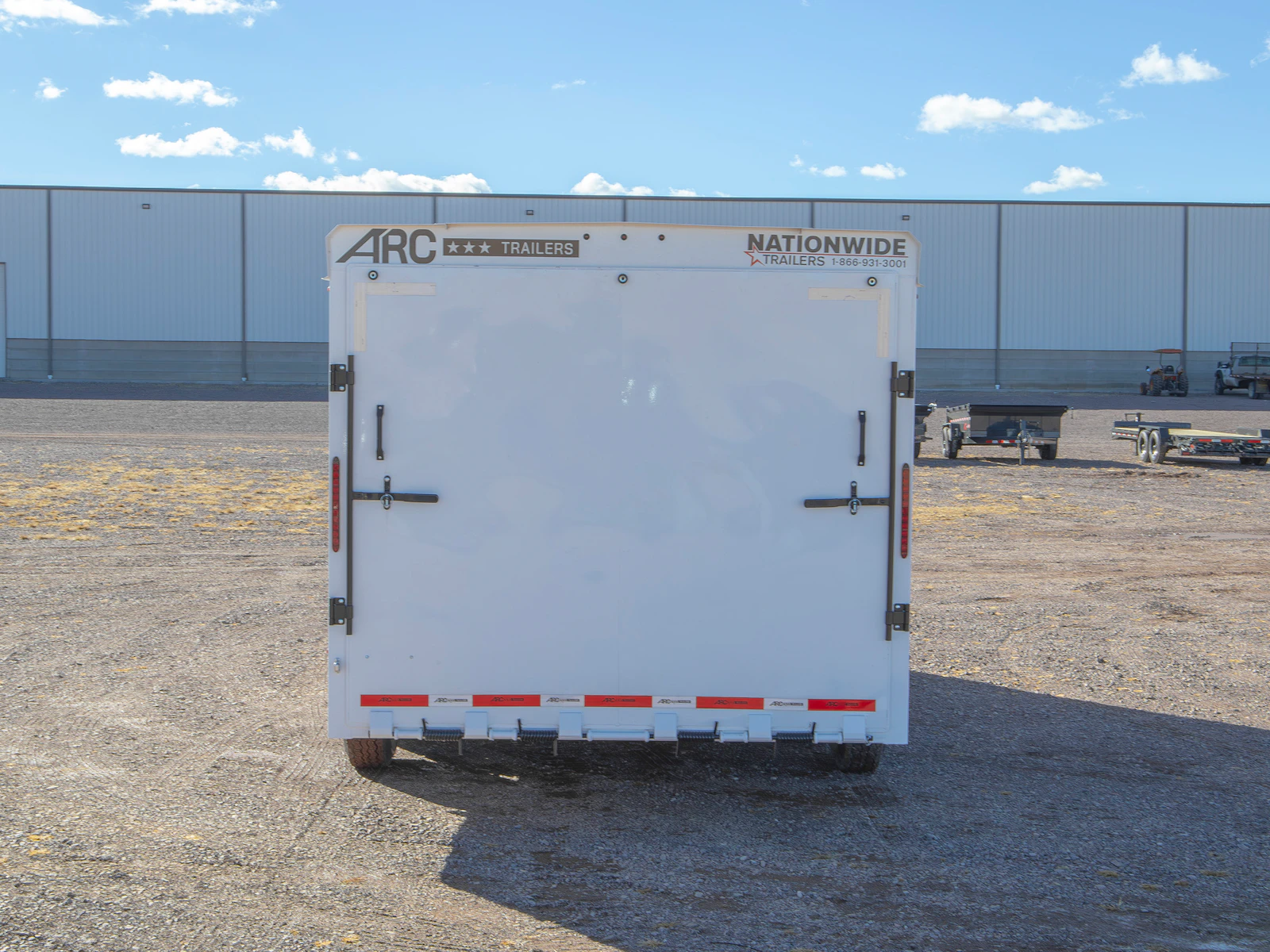

| Rear Gate | Rear Barn Doors (standard) | Spring-assisted Ramp Door (+upgrade) |
| Safety Features | Coupler Chains, DOT Reflective, Conspicuity Tape, Electric Breakaway Kit w/ Charger |
| Spare | Spare Available with Upgrade |
| Lights | Interior Work Lights |
| Tail | Straight |
